COMPONENT LIST
TECHNICAL DOCUMENTATION 39
Any components within the ETHOS 70 - 130 that may require replacing have been listed in this section, along
with their respective part codes. If any part needs replacing which is not listed here, please contact our
technical department on 03452 60 60 20 for assistance.
CASING AND ELECTRICAL COMPONENTS
“(PART CODE) PART NAME”:

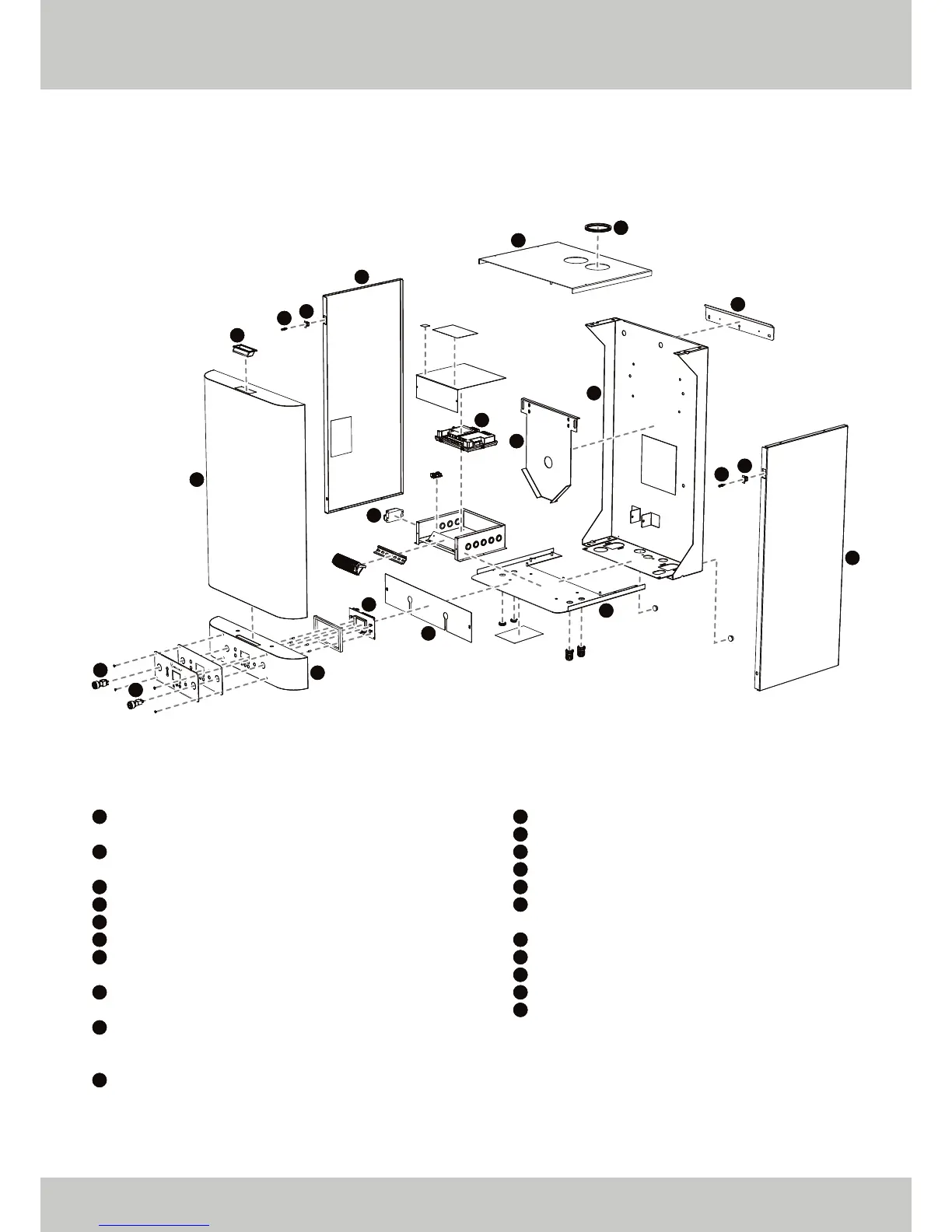

▲ FIGURE 10. EXPLODED DRAWING DETAILING THE CASING AND ELECTRICAL COMPONENTS OF THE ETHOS 70 - 130.
(WHB000067)
(WHB300029)
(WHB000068)
(WHB300020)
(WHB000154)
(WHB000069)
(WHB000070)
(WHB200026)
(WHB000071)
(WHB300021)
(WHB000072)
(WHB300022)
(WHB000073)
(WHB200027)
(WHB300023)
(WHB000074)
CASING - BACK PANEL (ETHOS 70 - 90)
CASING - BACK PANEL (ETHOS 110 - 130)
CASING - BOTTOM PANEL (ETHOS 70 - 90)
CASING - BOTTOM PANEL (ETHOS 110 - 130)
CASING - CONTROL COVER PANEL
CASING - CONTROL PANEL
CASING - FRONT PANEL
CASING - HEAT EXCHANGER BRACKET
(ETHOS 90 - 130)
CASING - LEFT SIDE PANEL (ETHOS 70 - 90)
CASING - LEFT SIDE PANEL (ETHOS 110 - 130)
CASING - RIGHT SIDE PANEL (ETHOS 70 - 90)
CASING - RIGHT SIDE PANEL (ETHOS 110 - 130)
CASING - TOP PANEL (ETHOS 70)
CASING - TOP PANEL (ETHOS 90)
CASING - TOP PANEL (ETHOS 110 - 130)
CASING - WALL HANGING BRACKET
01
02
03
04
05
06
07
08
09
10
(WHB000088)
(WHB000089)
(WHB000077)
(WHB000078)
(WHB000091)
(WHB000084)
(WHB200028)
(WHB000080)
(WHB000126)
(WHB000171)
(WHB000092)
(WHB700093)
(WHB900093)
(WHB110093)
(WHB130093)
CONTROL FASCIA PCB (DSP)
CONTROL RESET SWITCH WITH WIRE SET
DOOR CATCH
DOOR PIN (M6)
ELECTRICAL ISOLATION SWITCH
FLUE SEAL (Ø 90mm) (ETHOS 70)
FLUE SEAL (Ø 110mm) (ETHOS 90 - 130)
HANDLE - BLACK (PLASTIC)
HT IGNITION LEAD (ORANGE) (NOT PICTURED)
HT IONISATION LEAD (BLACK) (NOT PICTURED)
IGNITION TRANSFORMER
MAIN PCB (MAXSYS) (ETHOS 70)
MAIN PCB (MAXSYS) (ETHOS 90)
MAIN PCB (MAXSYS) (ETHOS 110)
MAIN PCB (MAXSYS) (ETHOS 130)
11
12
13
14
15
16
17
18
19
20
21
02
08
15
16
01
05
07
09
13
14
13
14
20
10
21
04
11
17
06
03
12
