Mikrofill ETHOS 70 - 2 Dimensions

DIMENSIONS
TECHNICAL DOCUMENTATION 05

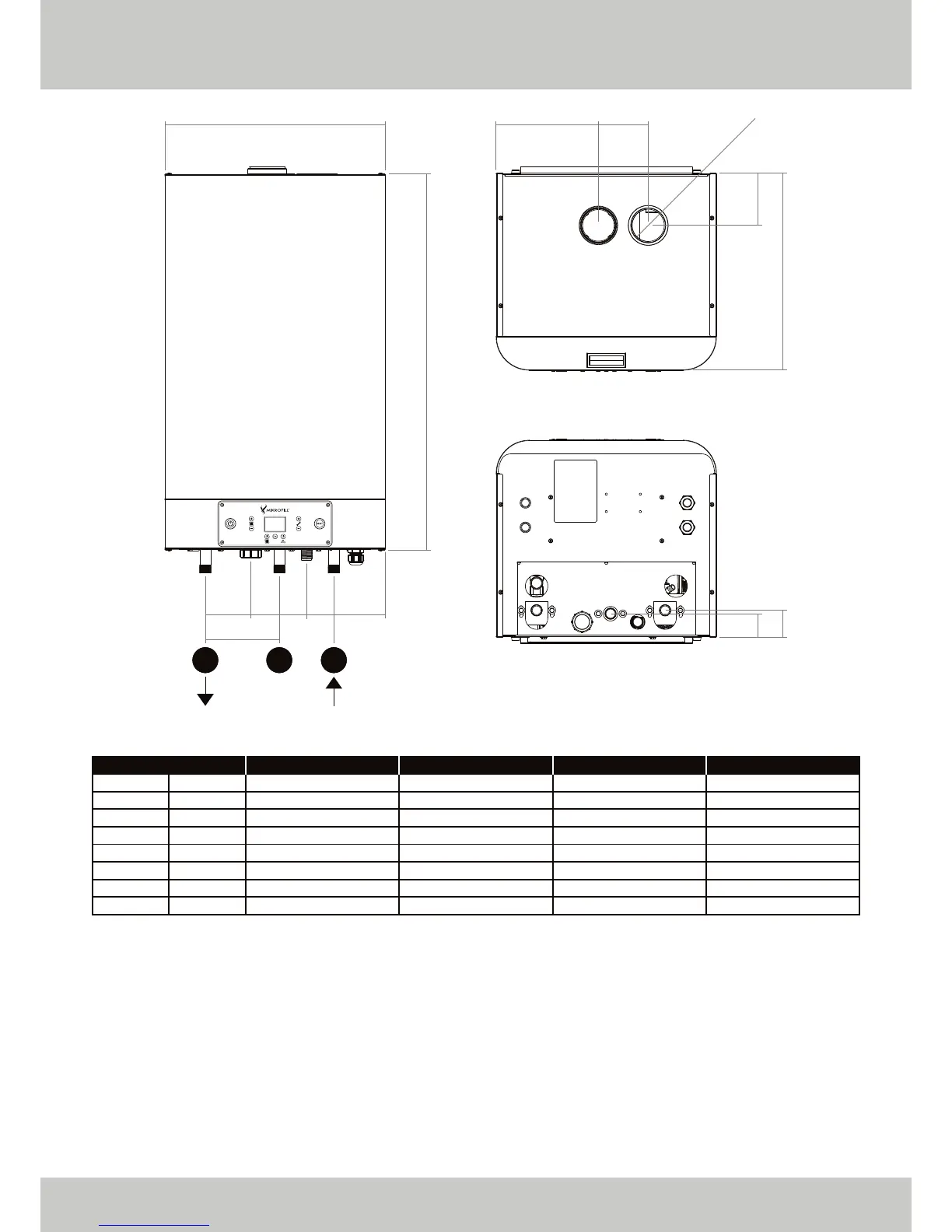

▲ FIGURE 01. DIMENSIONS OF THE ETHOS WALL MOUNTED BOILERS.
• All dimensions are in millimetres unless otherwise specified.
• Data may deviate slightly due to fabrication tolerances.
• We reserve the right to make changes without prior notification.
530
905
110 70
180
65 E F
GG H
245 A
C
D
Ø B
55
75
ETHOS 130
140
100
95
675
75
115
1¼”
¾”
ETHOS 110
140
100
95
675
75
115
1¼”
¾”
ETHOS 90
140
100
95
475
65
125
1¼”
¾”
ETHOS 70
120
80
125
475
65
125
¾”
¾”
mm
mm
mm
mm
mm
mm
in
in
A
B
C
D
E
F
G
H
