MikroTik MANTBox 52 15s User Manual

The device upgrade https://mt.lv/upgrade;
Grounding
The installation infrastructure (towers and masts), as well as the router itself, must be properly
grounded. The device includes a grounding wire attachment screw behind the case door. Attach your
grounding wire to the grounding screw, then attach the other end of the grounding wire to the grounded
mast. This is to substantially reduce the risk of ESD and lightning damage.
⏚The device includes a grounding connection (marked ).

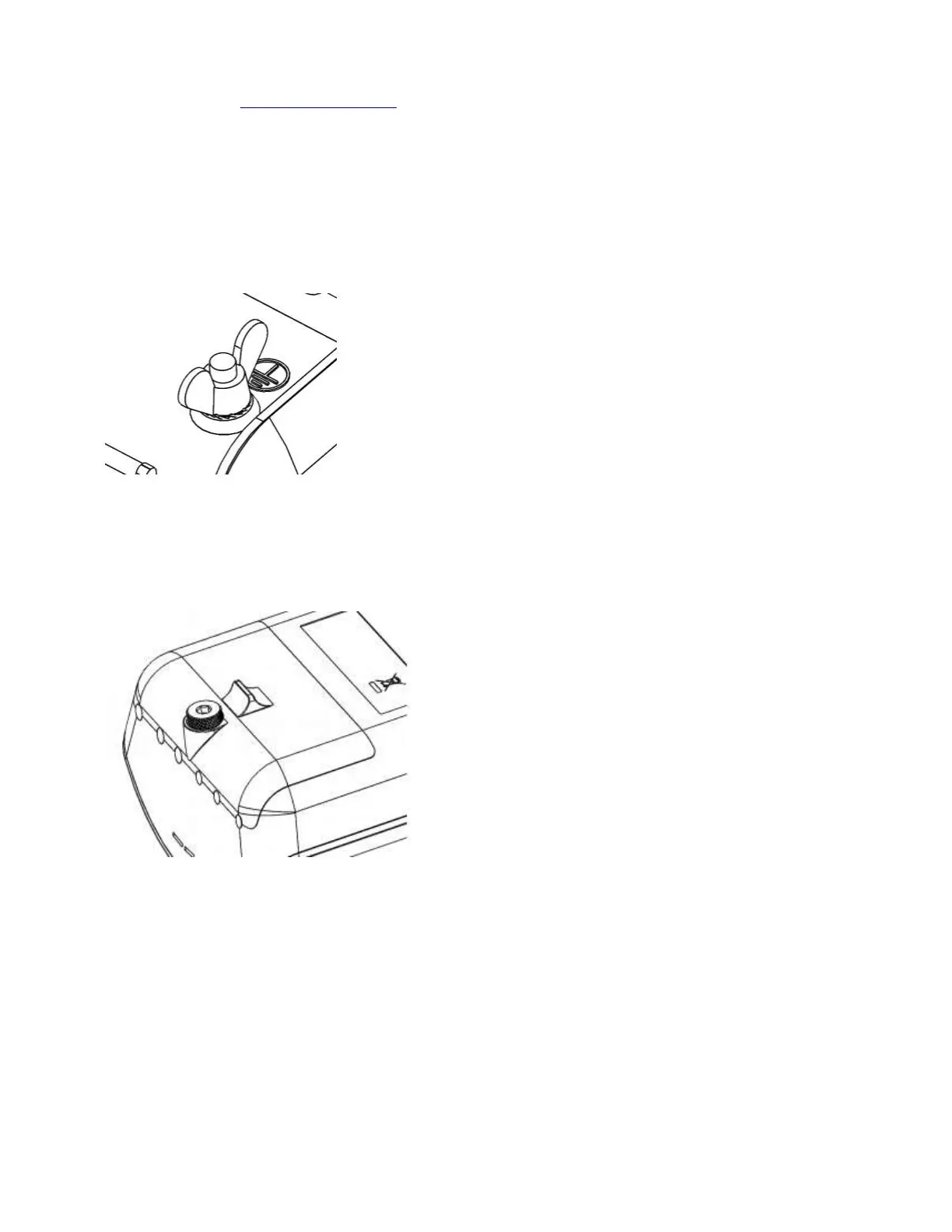

Opening cover
To open the cover, please turn the captive screw by hand anti-clockwise and lift it.
Expansion Slots and Ports
 Built-in wireless interface 5 GHz and 2.4 GHz.
 One SFP port for 1.25GBit modules, DDMI support.
 Gigabit Ethernet port, supporting automatic cross/straight cable correction (Auto MDI/X), so you can
use either straight or crossover cable for connecting to other network devices.

MikroTik MANTBox 52 15s Specifications

General

Frequency band	2.4/5 GHz
Networking standards	IEEE 802.11b, IEEE 802.11g
Antenna gain level (max)	15 dBi
Mounting	Pole
Antenna type	Sector antenna
Polarization	Dual polarization
Antenna connector type	-
Power consumption (max)	21 W
Operating temperature (T-T)	-30 - 70 °C
Quantity per pack	1 pc(s)
Harmonized System (HS) code	85177100

Weight and Dimensions

Depth	140 mm
Width	348 mm
Height	82 mm
