iMap10.0
Charging dock indicator
- 08 -
Normally on in white: The charging dock has been connected to a power supply
(when the robot is not charging on the charging dock)

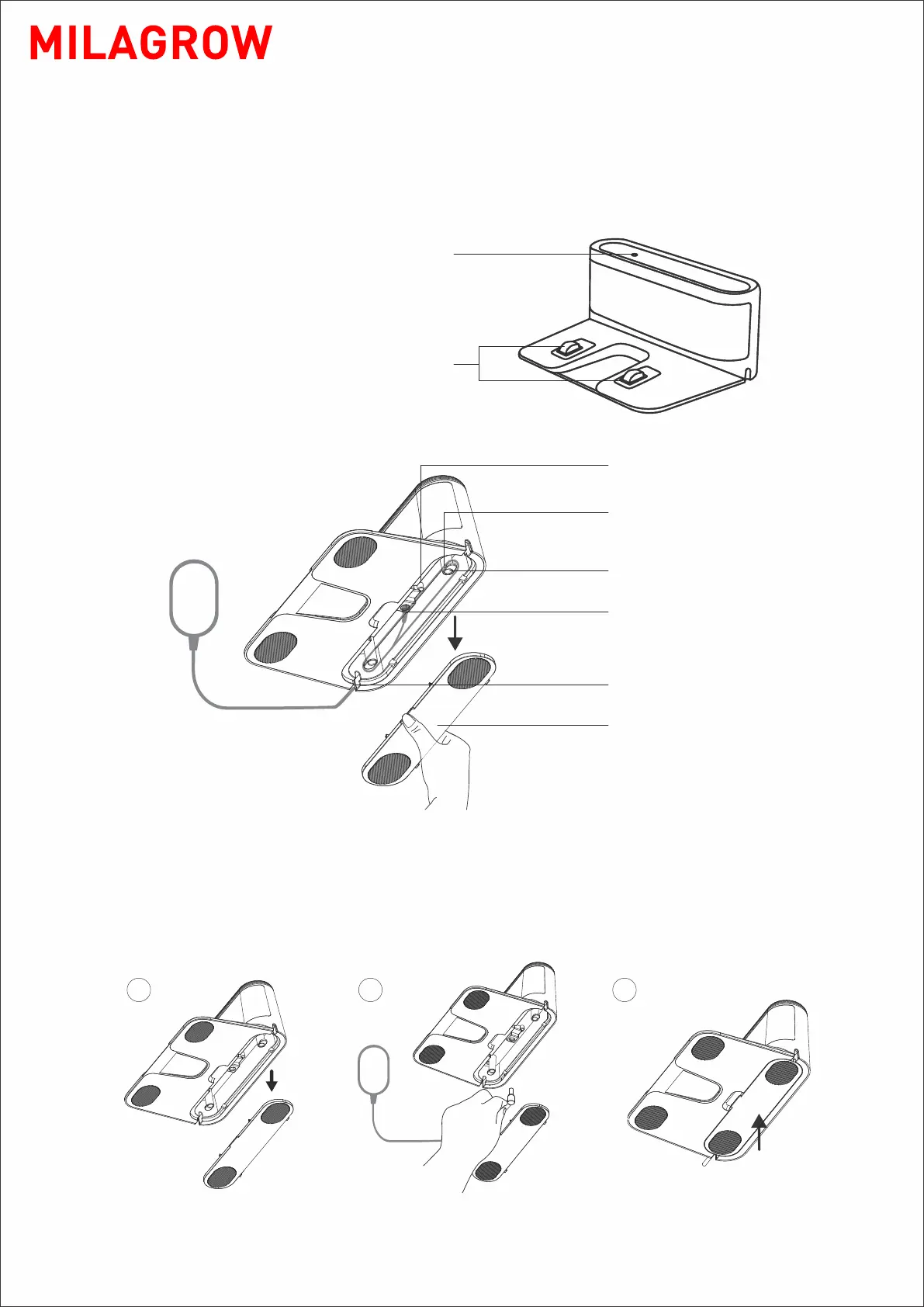

2.5 Charging dock
White light off: The robot is correctly connected with the charging dock
Charging electrode
Status indicator
Wiring terminal
Power cord
Power cord take-up bin
Wire outlet
Cover
Power socket
3. Robot Installation
1. Connect the charging dock with the adapter. Prevent the adapter wire
from winding the machine during sweep.
A B C
