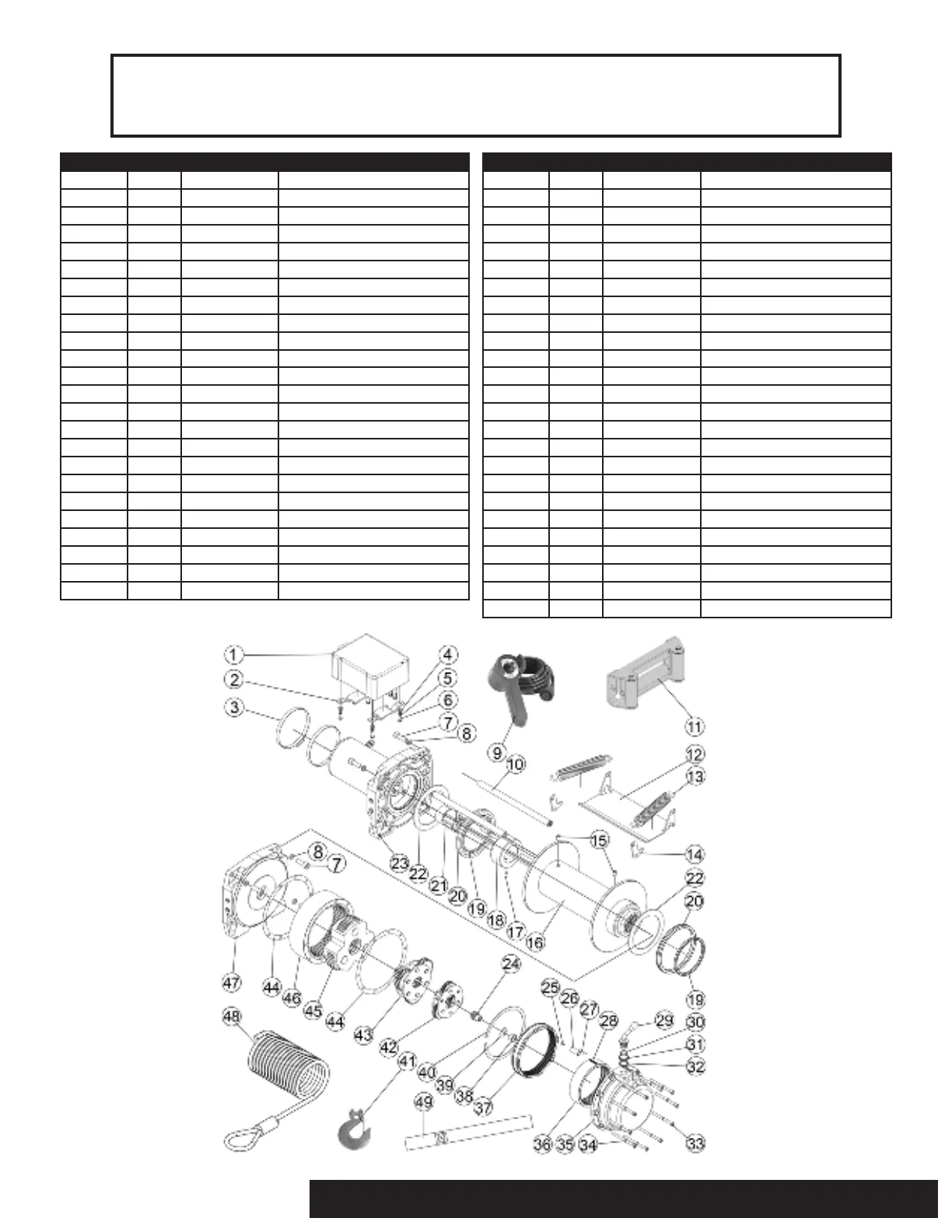

PARTS BREAKDOWN & ASSEMBLY
2121 Blount Road, Pompano Beach, FL 33069 MileMarker.com 1.800.886.8647PAGE 10
ITEM QTY PART# DESCRIPTION
1 1 77-502080W-01 Solenoid Assembly
2 2 77-502080W-02 Solenoid Bracket
3 2 77-502080W-03 Hose Clamps
4 4 77-502080W-04 Washer 6
5 4 77-502080W-05 Spring Washer
6 4 77-502080W-06 Screw M6 x 16
7 6 77-502080W-07 Screw M10 x 30
8 6 77-502080W-08 Spring Washer 10
9 1 77-502080W-09 Switch Assembly
10 2 77-502080W-10 Tie Bar
11 1 77-502080W-11 Roller Farilead
12 1 77-502080W-12 Tension Plate
13 2 77-502080W-13 Spring
14 2 77-502080W-14 Hooking Bracket
15 2 77-502080W-15 Screw M10 x 12
16 1 77-502080W-16 Drum Assembly
17 1 77-502080W-17 Screw M8 x 10
18 1 77-502080W-18 Brake Fittings
19 2 77-502080W-19 X Ring
20 2 77-502080W-20 Seal
21 1 77-502080W-21 Brake/Shaft Assembly
22 2 77-502080W-22 Gasket
23 1 77-502080W-23 Motor End
24 1 77-502080W-24 Gear Input sun
25 1 77-502080W-25 Screw
26 1 77-502080W-26 Pin
27 1 77-502080W-27 Locating Pin
28 1 77-502080W-28 Spring
29 1 77-502080W-29 Clutch Handle
30 1 77-502080W-30 O Seal Ring
31 1 77-502080W-31 Seal Ring Cover
32 1 77-502080W-32 Ring
33 10 77-502080W-33 Screw M6 x 60
34 10 77-502080W-34 Spring Washer 6
35 1 77-502080W-35 Gear Box Cover
36 1 77-502080W-36 Gear Ring
37 1 77-502080W-37 Gear Ring
38 1 77-502080W-38 Bearing
39 1 77-502080W-39 Spacer
40 1 77-502080W-40 Retaining Ring
41 1 77-502080W-41 Safety Hook
42 1 77-502080W-42 Gear Carrier Assembly Input
43 1 77-502080W-43 Gear Carrier Assembly Intermediate
44 2 77-502080W-44 Gasket
45 1 77-502080W-45 Gear Carrier Assemby Output
46 1 77-502080W-46 Gear Ring
47 1 77-502080W-47 End Bearing
48 1 77-502080W-48 Cable
49 1 77-502080W-49 Hand Strap
ITEM QTY PART# DESCRIPTION
