INSTALLATION
NOTE: Depending on your knowledge of electrical wiring, you may wish to have this winch installed by a qualified technician
1. Select a site to mount your winch mounting frame (not included) and winch
CAUTION: Choose a mounting site that will withstand the pulling force of the winch
Depending on mounting site, steel reinforcement plates (not included) may be required
Depending on mounting site, additional bracing (not included) may be needed and can be welded on before installing winch
2. Make sure winch is on flat surface, and attach the supplied solenoid bracket by removing the two screws from the motor end bearing
assembly (Fig. 1).
3. Mount the solenoid assembly and solenoid bracket to the winch
4. After frame and additional plates are setup, mount the roller fairlead to the mounting frame using the supplied bolts and nuts
Before mounting fairlead, remove 1 horizontal and 1 vertical roller. They will be re-installed after winch is mounted.
5. Mount the winch to the mounting frame using bolts and nuts (Fig. 2). All eight M12 X 35 bolts must be used for proper installation.

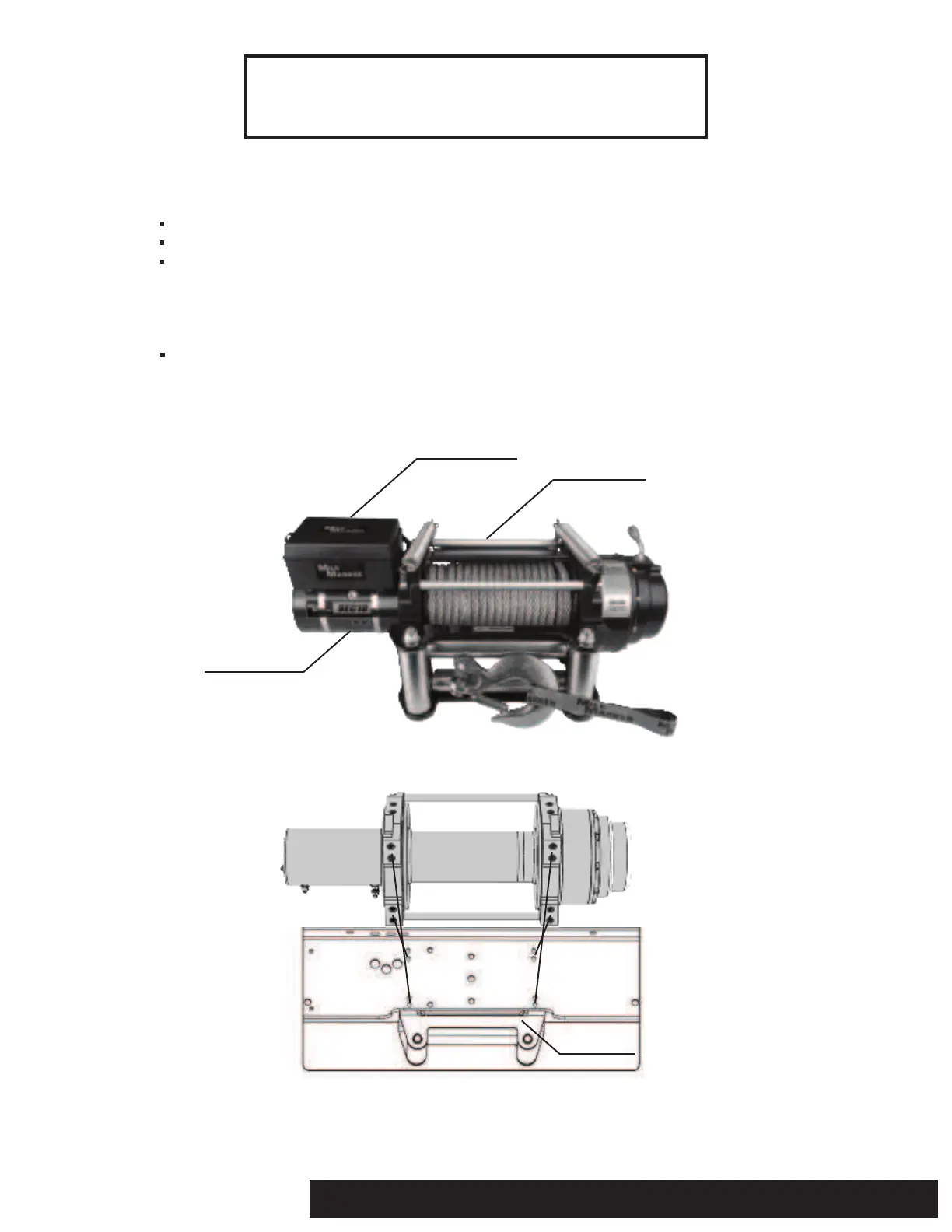

Fig. 1
Fig. 2
Mounting frame
Roller fairlead
2121 Blount Road, Pompano Beach, FL 33069 MileMarker.com 1.800.886.8647PAGE 3
Solenoid assembly
Solenoid bracket
Motor end
bearing assembly
