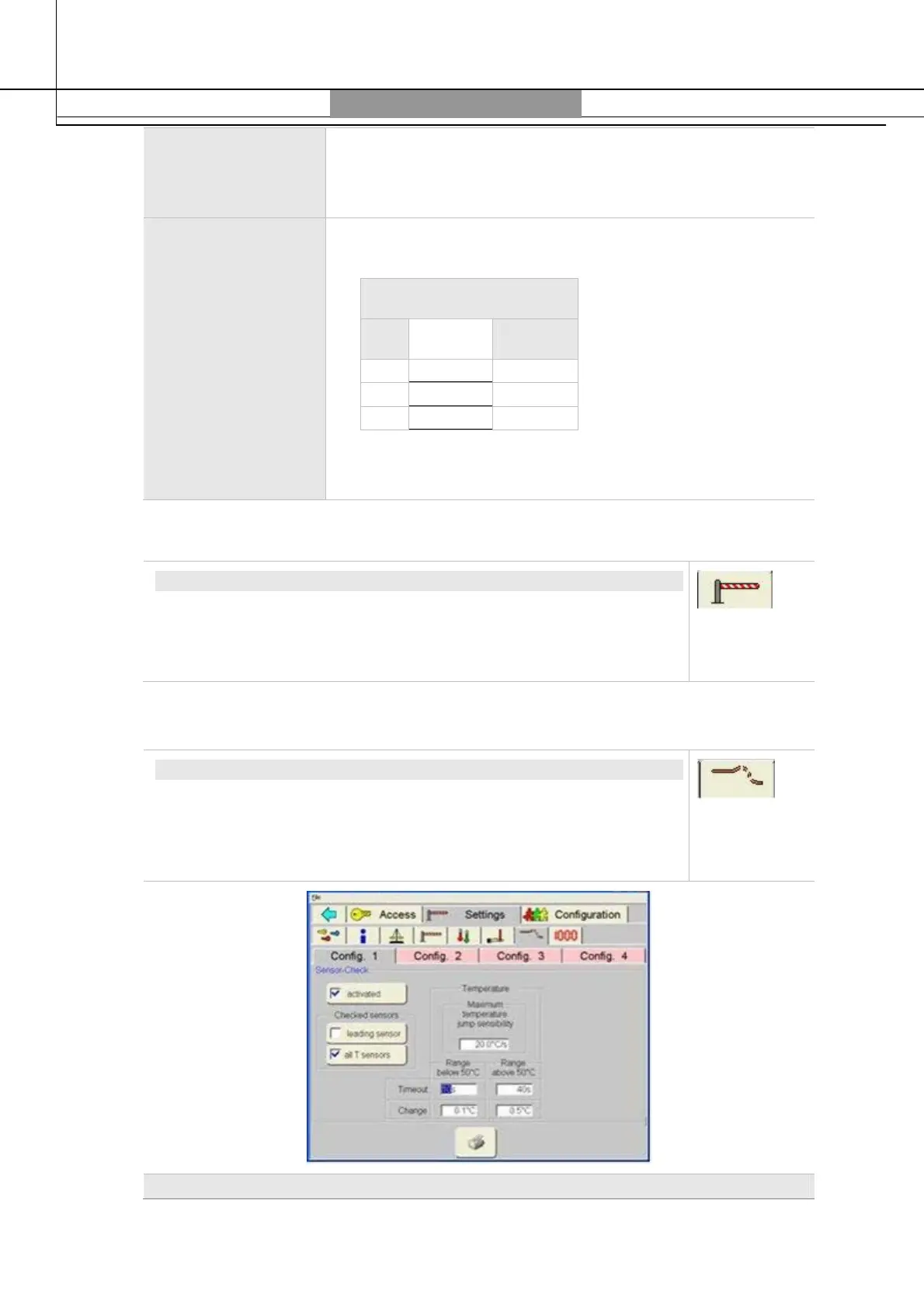

ETHOS EZ User manual MA073-006 Terminal chapter Page - 71 -
Interface COM port for the balance is set in the section Configuration.
Connect the balance to the selected COM port. The
connections are in front of the terminal.
Interface cable Cable with RJ45 plug at the terminal. For Precisa balances a
1:1 cable can be used.
Plug Allocation
PIN Signal
2
RxT
5
GND
6
TxD
Pin1 is placed on the right of the terminal connections.
Maximum Working Conditions
MAXIMUM WORKING CONDITIONS
For Service only:
Here are specified the maximum values of control parameters which
can be used in the program.
Sensor-Check
SENSOR-CHECK
Sensor-Check is used to recognize missing, incorrectly installed or
defective temperature sensors. If the Sensor-Check recognizes an
irregularity, the process is interrupted and an error message will
show up.
Sensor-Check
