TM-353 Page 46 Syncrowave 250
SC-124 785-B

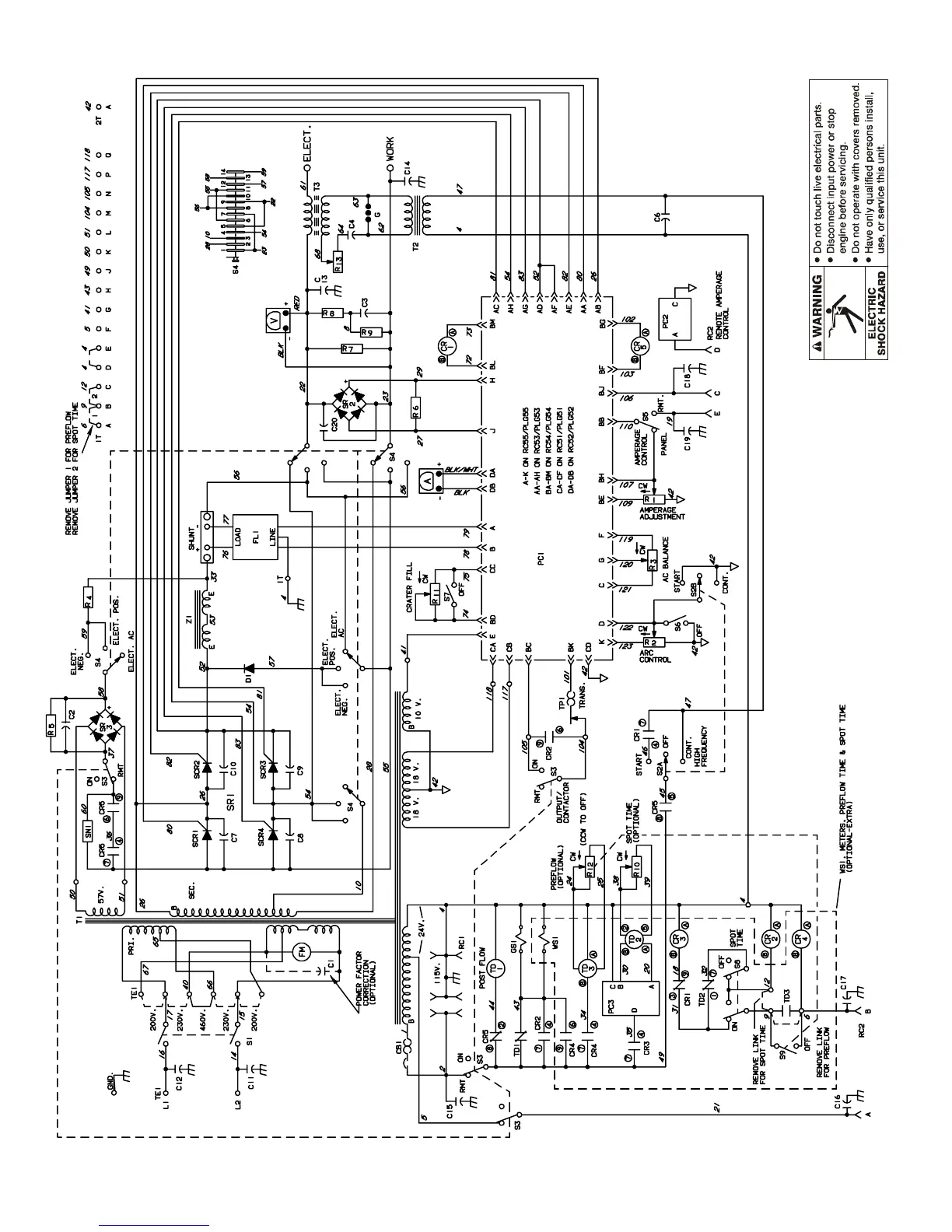

Figure 9-5. Circuit Diagram For Syncrowave 250 Effective With Serial No. JK572898 Thru JK690986
