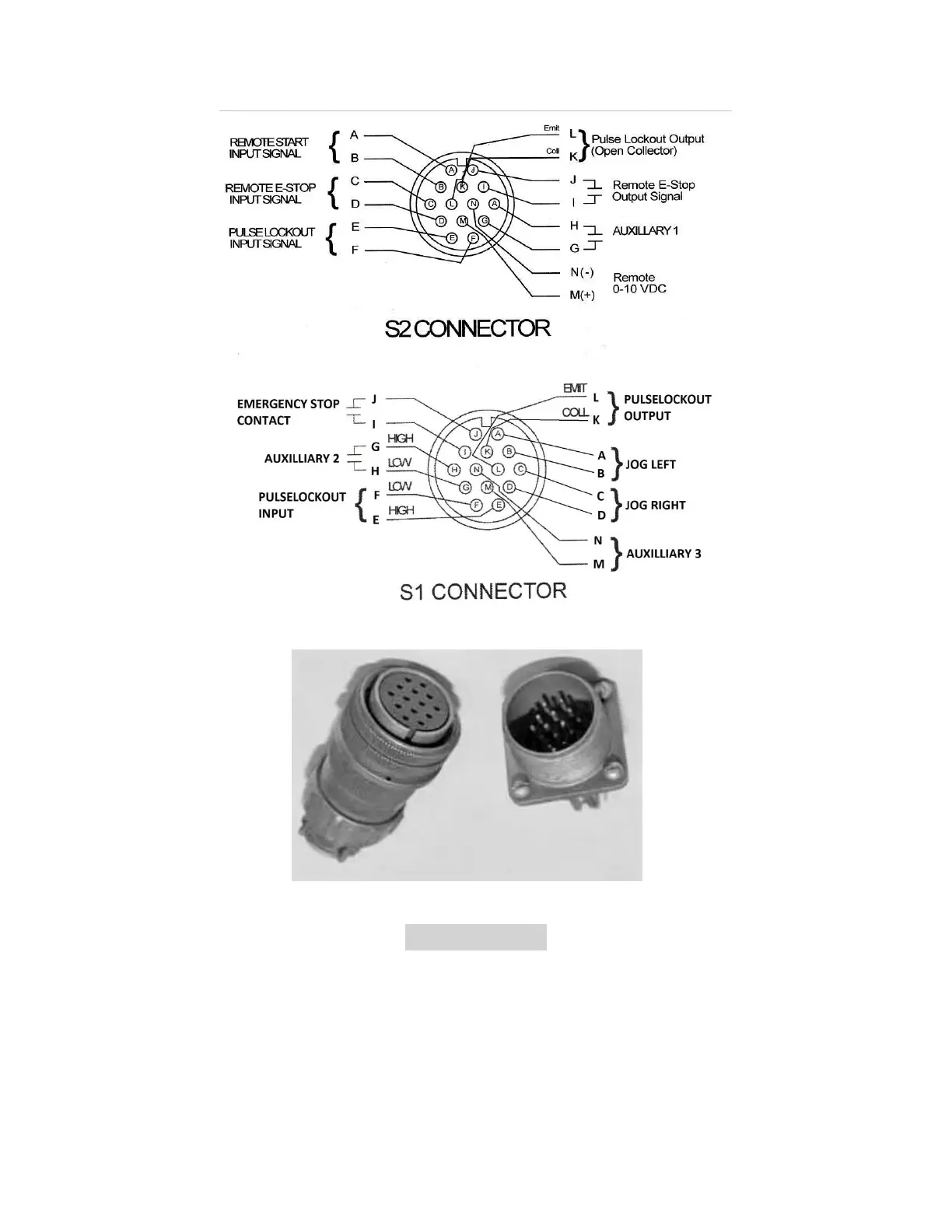

Figure 5: Amphenol Connectors-Pin locations and designations
Figure 6: Location of keyway on connector @ 6 o’clock.
S1 CONNECTOR
The S1 connector is used to connect the 9700W control to auxiliary controls. If you need to provide your
own cable, it should be fitted with the following:
Amphenol plug 97-3106A-20-27S
Cord Grip 97-3057-1012-1
