6. Operating Auxiliary Equipment

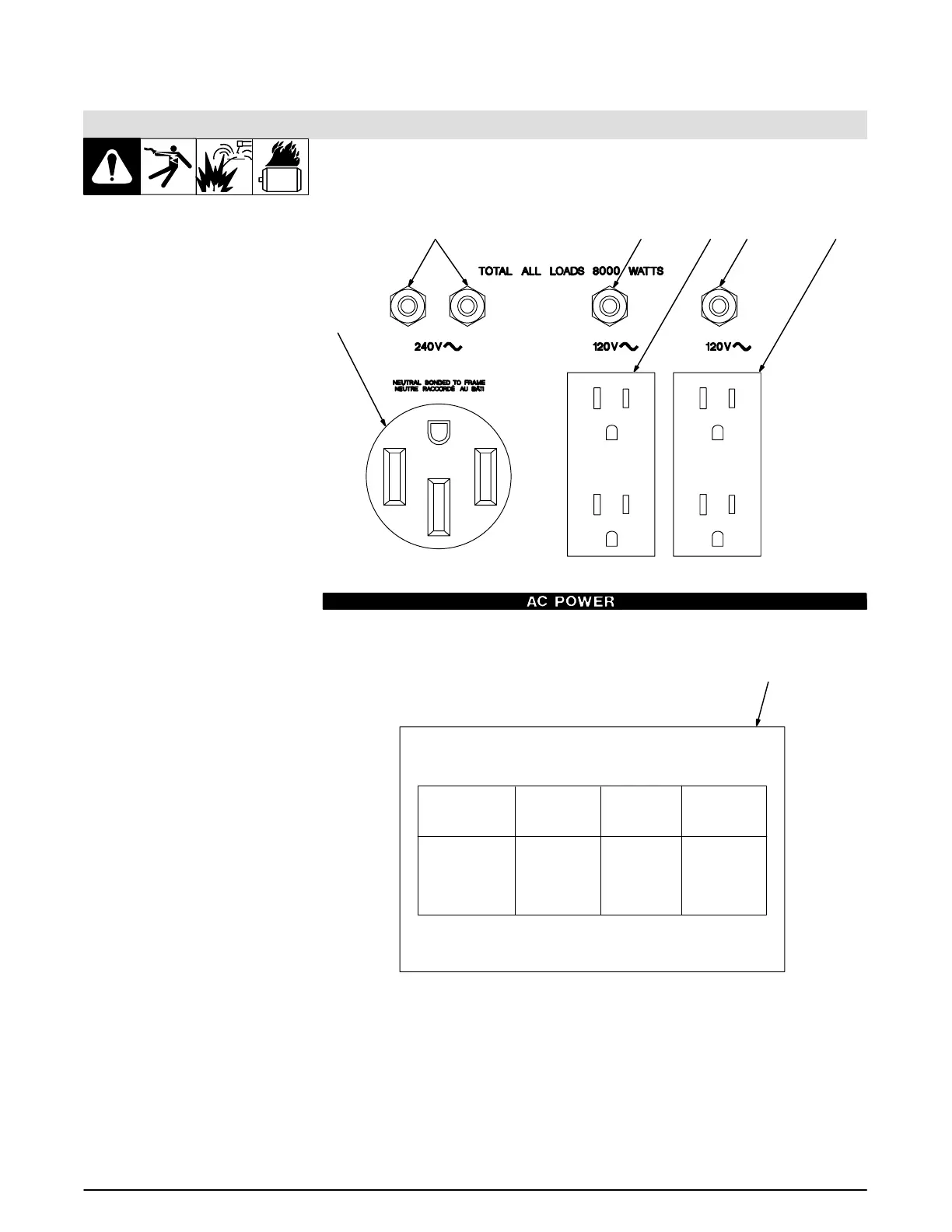

6.1 Standard Receptacles
Ref. ST-183 175-A
If unit does not have GFCI re-
ceptacles, use GFCI-
protected extension cord.
Auxiliary power decreases as
weld current increases.
Set Fine Adjust control R1 at 10
for full auxiliary power.
1 240 V 50 A AC Receptacle
RC1
RC1 supplies 60 Hz single-phase
power at weld/power speed. Maxi-
mum output is 8 kVA/kW.
2 120 V 15 A AC Duplex
Receptacle RC2
3 120 V 15 A AC Duplex
Receptacle RC3
RC2 and RC3 supply 60 Hz single-
phase power at weld/power speed.
Maximum output from RC2 or RC3
is 2.4 kVA/kW. (CSA : 1.8 kVA/kW).
4 Circuit Breakers CB1 and
CB2
CB1 and CB2 protect RC1 from
overload. If CB1 or CB2 opens,
RC1 and one of the 120 volt recep-
tacles does not work. 120 volts may
still be present at RC1.
5 Circuit Breaker CB3
6 Circuit Breaker CB4
CB3 protects RC2 and CB4 pro-
tects RC3 from overload. If a circuit
breaker opens, the receptacle does
not work.
Press button to reset circuit
breaker. If breaker continues to
open, contact Factory
Authorized Service Agent.
Combined output of all receptacles
limited to 8 kVA/kW rating of the
generator.
EXAMPLE: If 20 A is drawn from
each 120 V duplex receptacle, only
13 A is available at the 240V
receptacle:
2 x (120 V x 20 A) + (240 V x 13 A)
= 7.9 kVA/kW
7 Auxiliary Power While
Welding Label
456
1
S-166 360-A
See Owner’s Manual for additional information.
Weld Current
In Amperes
Total Power
120V
210
140
90
1000
4300
6000
36
50
8
240V
18
25
4
WITH FINE ADJUST SET AT 10
In Watts
Receptacle Receptacle
SIMULTANEOUS WELDING AND POWER
7
Amperes Amperes
2
3
To Next Page
