11. Auxiliary Power Guidelines
11.1 Selecting Equipment
aux_pwr 12/96 – Ref. ST-159 730 / ST-800 577

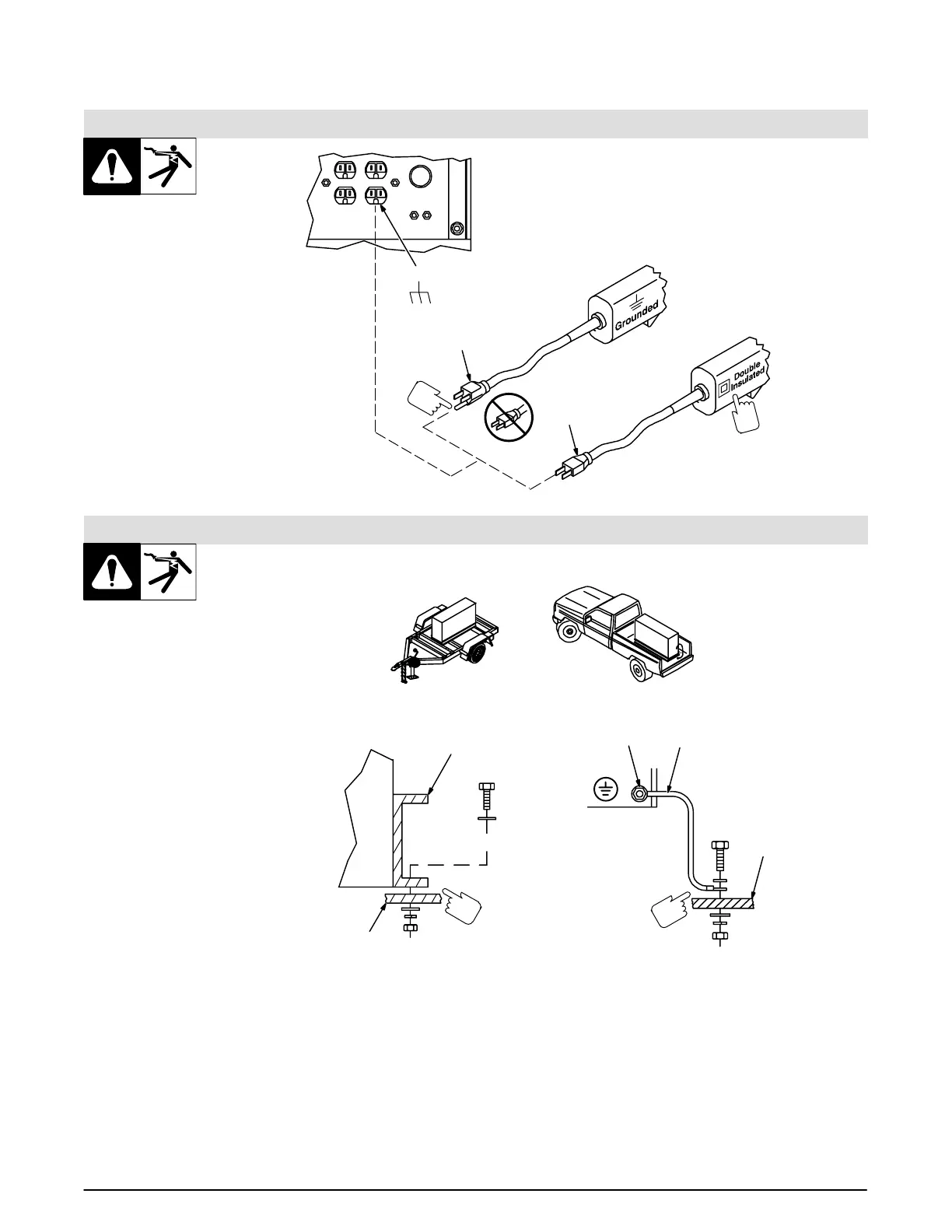

1 Auxiliary Power Receptacles
– Neutral Bonded To Frame
2 3-Prong Plug From Case
Grounded Equipment
3 2-Prong Plug From Double In-
sulated Equipment
OR
2
Be sure equipment
has this symbol
and/or wording.
3
1
11.2 Grounding Generator to Truck or Trailer Frame
S-0854
1 Generator Base
2 Metal Vehicle Frame
3 Equipment Grounding
Terminal
4 Grounding Cable
Use #10 AWG or larger insulated
copper wire.
 If unit does not have GFCI re-
ceptacles, use GFCI-pro-
tected extension cord.
OR
1
2
Electrically bond generator
frame to vehicle frame by
metal-to-metal contact.
GND/PE
2
3 4

Miller Bobcat 225 NT Specifications

General

Rated Output Power	8, 000 watts
Engine	Kohler CH730
Fuel Type	Gasoline
Fuel Tank Capacity	12 gallons
AC Output	120/240 V
DC Output	12 V
Engine Type	OHV
