Miller SSW-2020ATT User Manual

OM-745 Page 8

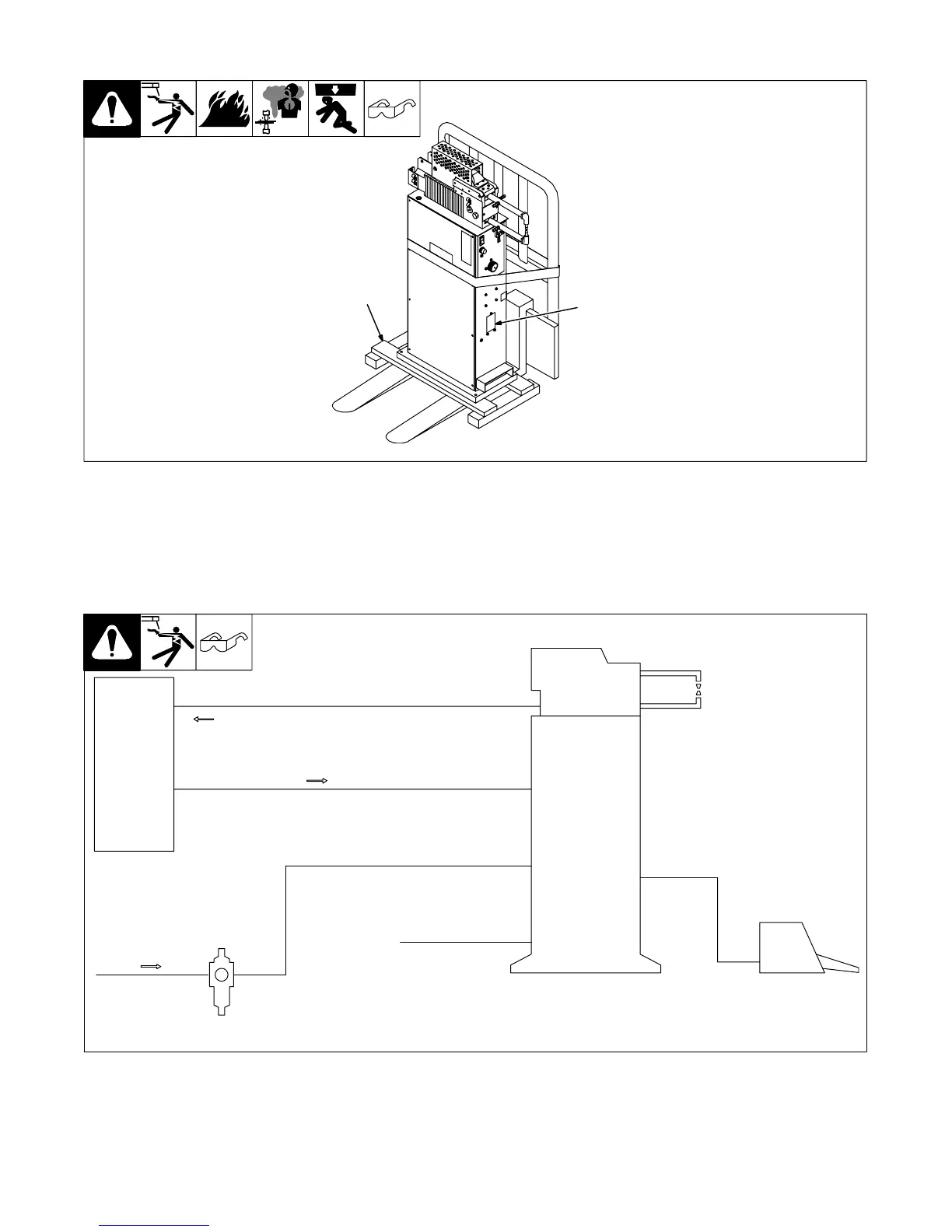

3-3. Moving The Spot Welder
802 752
1 Rating Label
Locate unit near correct input
power supply.
2 Skid
Place unit on skid and secure with
straps.
2
1
3-4. Overview Of System Connections
802 792-A
Spotwelder
system
Coolant
Air in
Coolant line (see Section 2-6)
Coolant line
Pedestal
Normally 5/8−18 left−
hand threaded receptacles
Input power line (see Section 2-8)
Air hose 60 − 100 PSI (see Section 2-10)
Slip−on hoses
tighten with
hose clamps
Foot switch
Air filter/regulator assembly
SSW Models
