Miller WP Series User Manual

OM-251981 Page 6

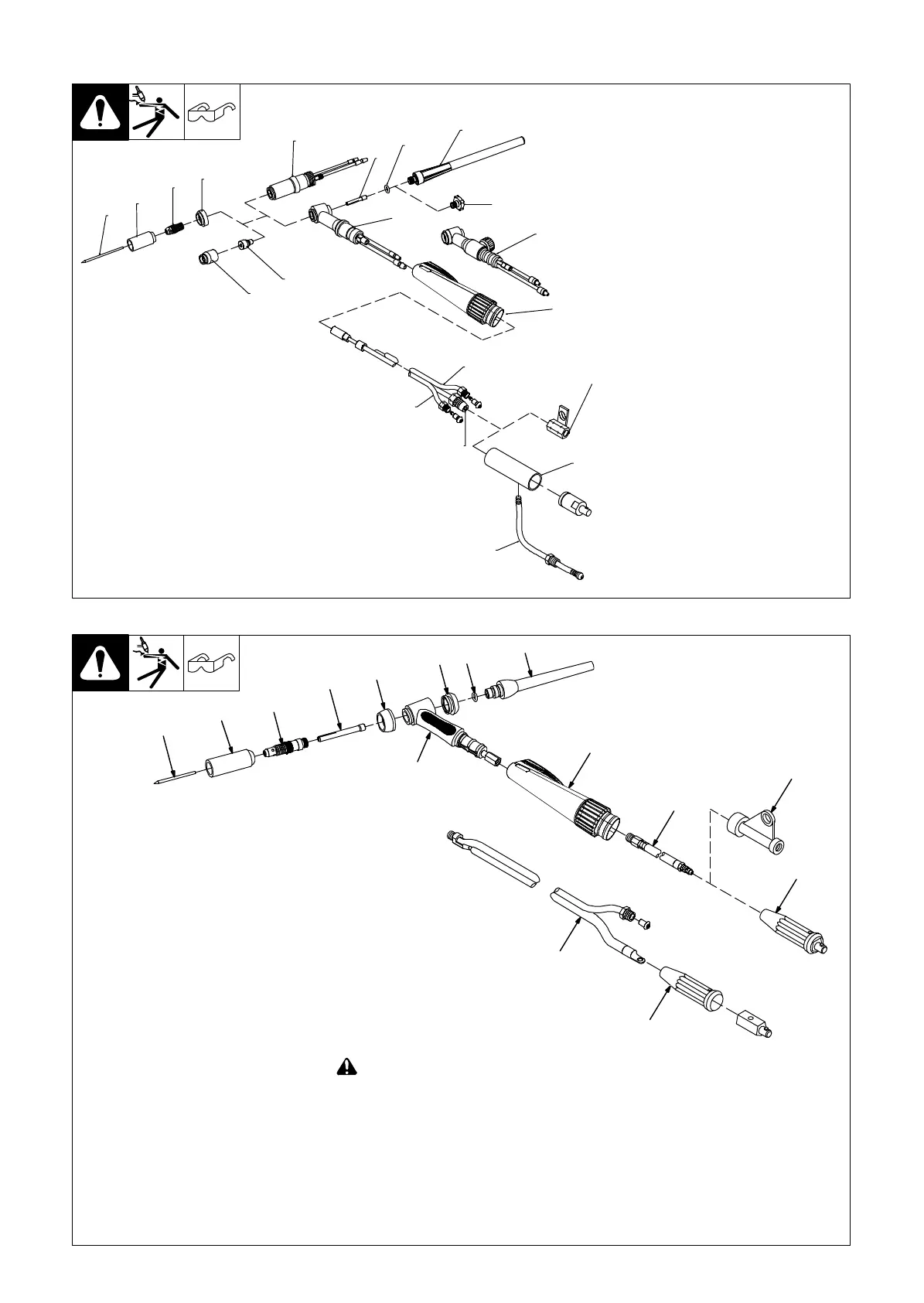

4-2. Required Torch Parts And Torch Assembly − WP Series Water-Cooled Torches
804308-B
1 Backcap
2 O-Ring
3 Collet
4 Torch Body (Standard)
4A Torch Body (Pencil)
4B Torch Body (w/Gas Valve)
5 Heat Shield
6 Collet Body
7 Cup
8 Gas Lens
9 Gas Lens Nozzle
10 Handle
11 Power Cable
12 Water Hose
13 Gas Hose
14 Power Cable Adapter
15 International Style Adapter
16 Water Hose For International Style
Adapter
Assembling Torch Body
Keep connections tight. Replace cup,
heat shield, and backcap as needed.
17 Tungsten Electrode (See Section 7)
Installing Tungsten
To adjust tungsten position, loosen back-
cap.
16
12
11
13
14
15
10
4
6
7
5
3
1
1
9
8
4A
2
17
4B
Assembling Torch Parts
4-3. Required Torch Parts And Torch Assembly − WP Series Air-Cooled Torches
804305-A
1 Cup
2 Collet Body
3 Collet
4 Heat Shield
5 Backcap Insulator
6 O-Ring
7 Backcap
8 Torch Body/Torch Head
! Before welding, insure that the torch
head is firmly attached to the torch
body.
9 Handle
10 One-Piece Power Cable
11 Power Cable Adapter
12 International Style Flow-Through
Adapter
. The adapter is needed only if torch is
equipped with one-piece cable.
13 Two-Piece Power Cable
14 International Style Connector
. The connector is needed only if torch is
equipped with two-piece cable (see
Section 4-7B).
Assembling Torch Body
Keep connections tight. Replace cup, heat
shield, and backcap as needed.
15 Tungsten Electrode (See Section 7)
Installing Tungsten
To adjust tungsten position, loosen
backcap.
1
2
3
4
13
5
7
9
6
15
Or
11
8
10
12
14
Assembling Torch Parts
