Miller WP Series User Manual

OM-251981 Page 7

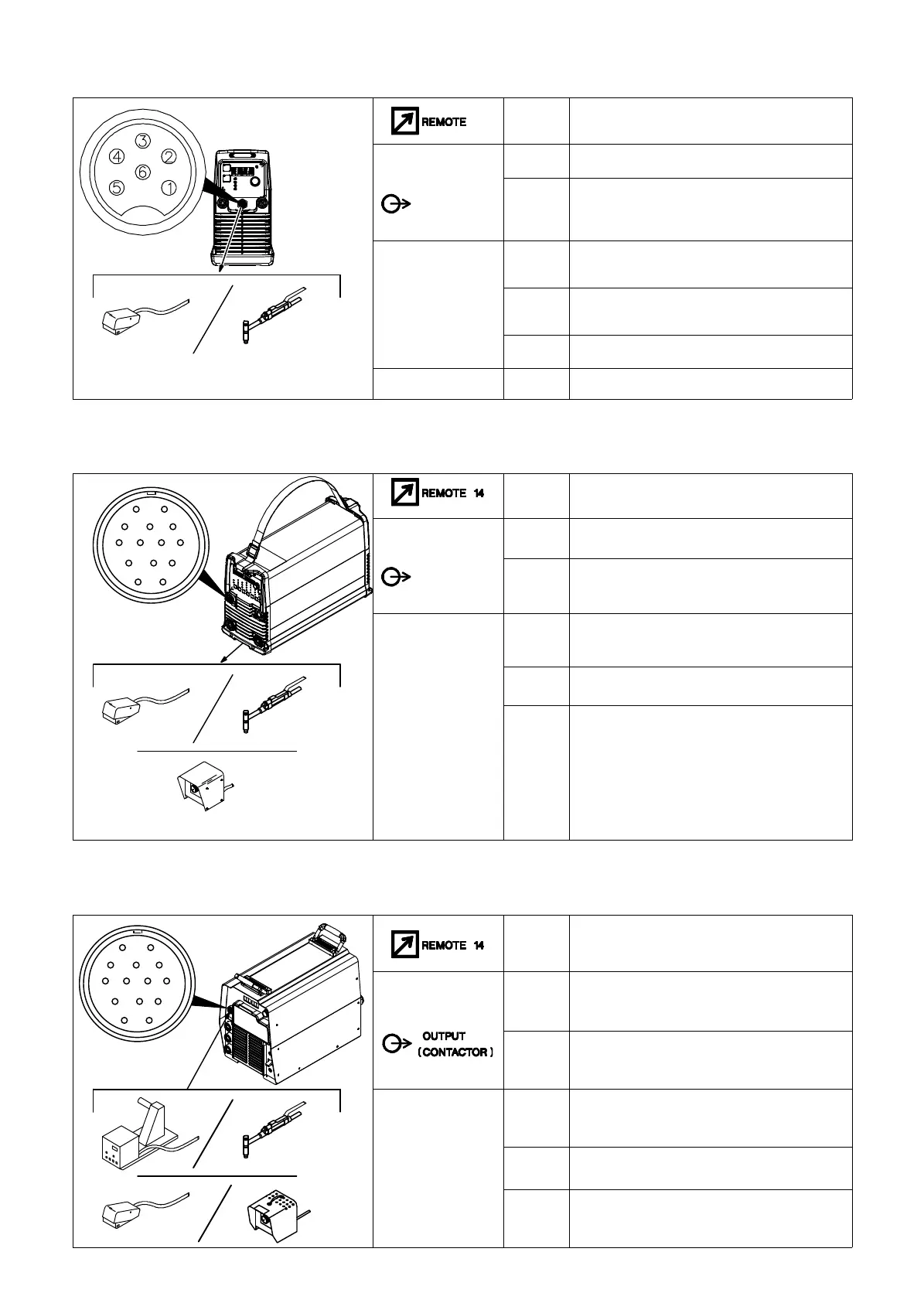

4-4. Remote 6 Receptacle Information For 15 Volts DC
Ref. 805575-A
6
Socket Socket Information
15 VOLTS DC
OUTPUT
CONTACTOR
1 Contactor control +15 volts DC.
2 Contact closure to 1 completes contactor control
circuit and enables output when Lift-Arc TIG re-
mote is selected.
REMOTE
OUTPUT
CONTROL
3 Output to remote control; +10 volts DC output to
remote control.
4 0 to +10 volts DC input command signal from
remote control.
5 Remote control circuit common.
CHASSIS
6 Chassis common.
4-5. Remote 14 Receptacle Information For 15 Volts DC
805497-A
AJ
B
K
I
C
L
NH
D
M
G
E
F
Socket Socket Information
15 VOLTS DC
OUTPUT
CONTACTOR
A Contactor control +15 volts DC, referenced to G.
B Contact closure to A completes 15 volts DC
contactor control circuit and enables output.
REMOTE
OUTPUT
CONTROL
C Output to remote control; +10 volts DC output to
remote control.
D Remote control circuit common.
E 0 to +10 volts DC input command signal from
remote control.
*Reconfigurable as input for Output Enable (Weld
Stop) − used to remotely stop the weld outside the
normal welding cycle. Connection to the D socket
must be maintained at all times. If the connection
is broken, output stops, and Auto Stop is dis-
played.
4-6. Remote 14 Receptacle Information For 24 Volts AC
AJ
B
K
I
C
L
NH
D
M
G
E
F
Socket Socket Information
24 VOLTS AC
A 24 volts AC. Protected by supplementary protect-
or CB2.
B Contact closure to A completes 24 volts AC
contactor control circuit.
REMOTE
OUTPUT
CONTROL
C Output to remote control; 0 to +10 volts DC, +10
volts DC in MIG mode.
D Remote control circuit common.
E 0 to +10 volts DC input command signal from
remote control.
