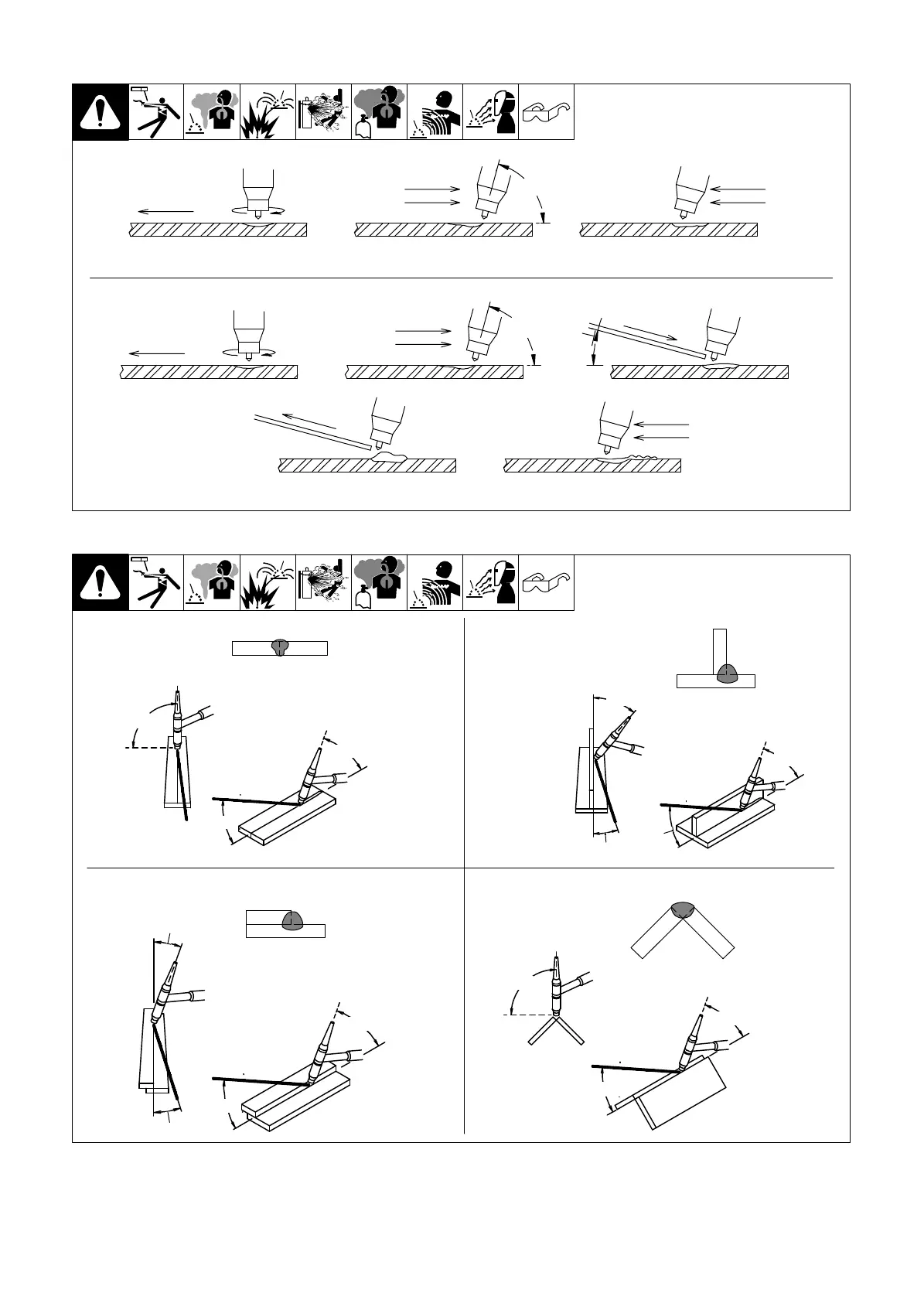

8-2. Torch Movement During Welding
162002-B
Tungsten Without Filler Rod
Tungsten With Filler Rod
Form pool Tilt torch Move torch to front
of pool. Repeat process.
75°
75°
Welding direction
Form pool Tilt torch Add filler metal
Move torch to front
of pool. Repeat process.
Remove rod
Welding direction
15°
8-3. Positioning Torch Tungsten For Various Weld Joints
162003 / 0792
75°
70°
90°
20°
20°
10°
15°
75°
20-40°
30°
15°
75°
90°
15°
Butt Weld And Stringer Bead
“T” Joint
Lap Joint
Corner Joint
