OM-254 449 Page 10
SECTION 3 − SPECIFICATIONS

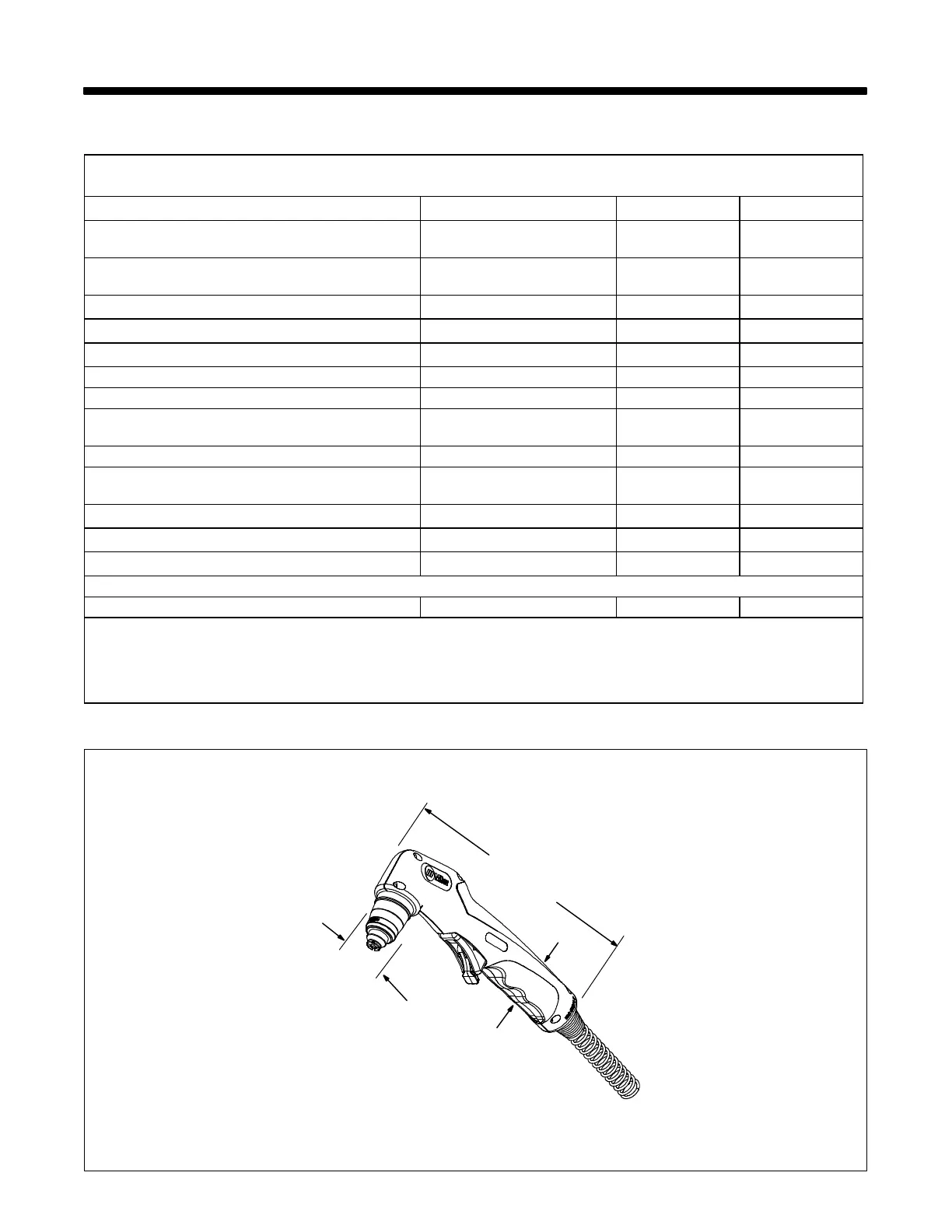

3-1. XT30 Specifications
Torch − The XT30 torch is intended for handheld use only. The torch conforms to IEC 60974-7 when used with the Spectrum
375X-TREME. Do not use this torch in combination with any other machines.
Gas Type Air or Nitrogen
−− −−
Gas Quality
Clean, moisture−free,
oil−free
−− −−
Gas Inlet Flow and Pressure 5.0 SCFM (142 L/min)
90 PSI (621 kPa)
Min
120 PSI (827 kPa)
Max
Gas Filtering Particulates to 5 microns
−− −−
Cooling Method Air
−− −−
Duty Cycle of Torch 100% at 30 Amps
−− −−
Rating of Electrical Controls (Trigger) 30 VDC at .1 Amps − − − −
Rating of Electrical Controls (Cup) 30 VDC at 1 Amp − − − −
Approved Systems Spectrum 375 X-TREME w/XT30
torch
Trigger Protection Safety trigger guard
Safety Devices Safety interlock devices shut
down power source
Rated Capacity (edge start) 3/8 in. at 18 ipm (457 mm/min)*
−− −−
Sever Cut Capacity (edge start) 5/8 in.
−− −−
Pierce Capacity 3/16 in.
−− −−
*Travel speeds are approximately 80% of maximum.
Weight 2.3 lb (1 kg) − − − −
Requirements for the torch connection
S Use only compressed air which is free from dirt, oil, and water.
S Ensure that the connections are properly assigned and tightened.
S For torch replacement, see Miller torch manual Part No. OM-1593
S Ensure correct air pressure (flow pressure) and airflow (volume) are set. Insufficient airflow can lead to the torch overheating.
3-2. XT30 Torch Dimensions
Ref. 253 554-A
1-3/16 in.
(30 mm)
8-3/4 in.
(222 mm)
1-1/2 in.
(38 mm)
