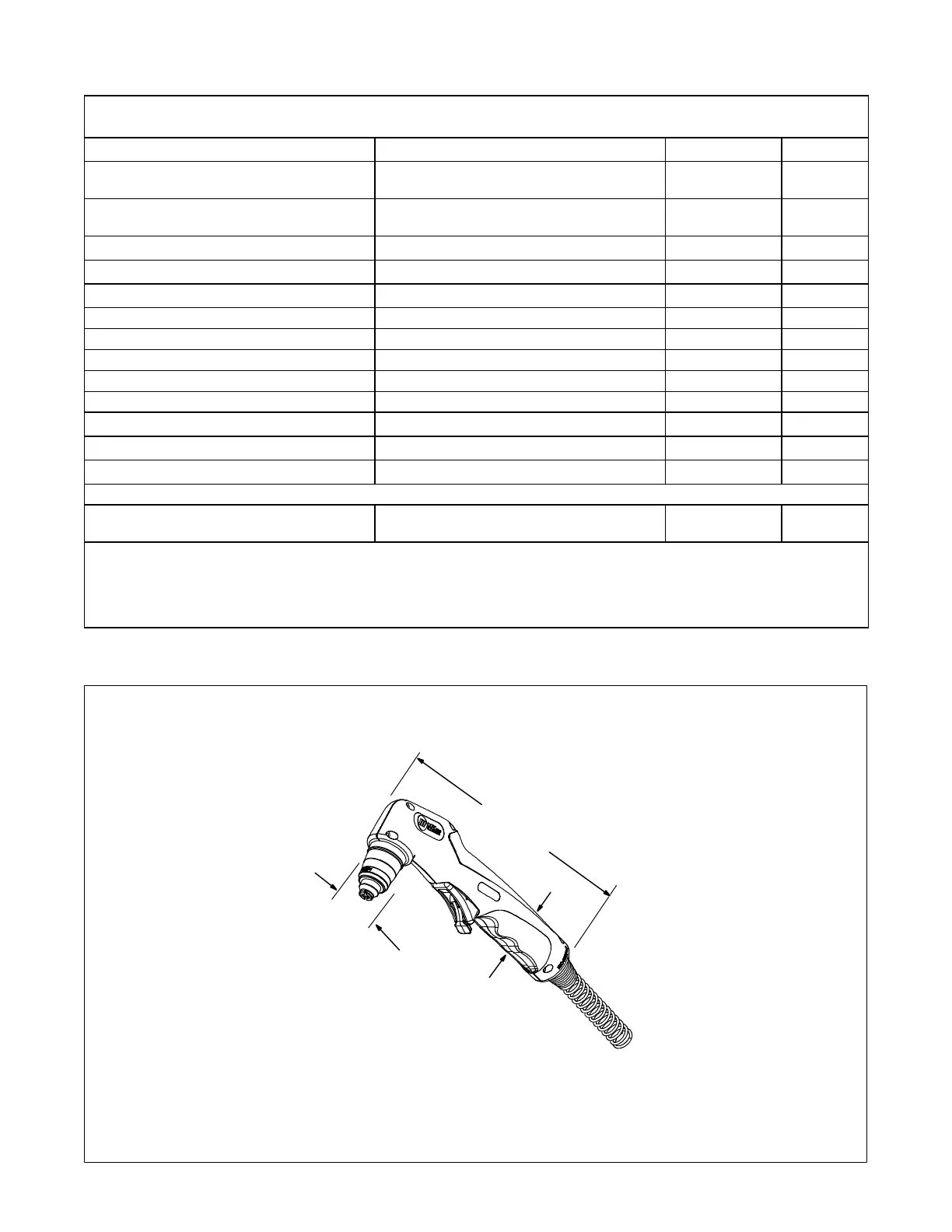

OM-254 449 Page 12
3-5. XT40 Torch Specifications
Torch − The XT40 torch is intended for handheld use only. The torch conforms to IEC 60974-7 when used with the Spectrum 625
X-TREME. Do not use this torch in combination with any other machines.
Gas Type Air or Nitrogen
−− −−
Gas Quality
Clean, moisture−free,
oil−free
−− −−
Gas Inlet Flow and Pressure 6.0 SCFM (170 L/min)
90 PSI (621 kPa)
Min
120 PSI (827
kPa) Max
Gas Filtering Particulates to 5 microns
−− −−
Cooling Method Air
−− −−
Duty Cycle of Torch 100% at 40 Amps
−− −−
Rating of Electrical Controls (Trigger) 30 VDC at .1 Amps − − − −
Rating of Electrical Controls (Cup) 30 VDC at 1 Amp − − − −
Approved Systems Spectrum 625 X-TREME w/XT40 torch
Trigger Protection Safety trigger guard
Safety Devices Safety interlock devices shut down power source
Rated Capacity (edge start) 5/8 in. at 13 ipm (330 mm/min)*
−− −−
Sever Cut Capacity (edge start) 7/8 in. at 4 ipm (102 mm/min)*
−− −−
Pierce Capacity 5/16 in.
−− −−
*Travel speeds are approximately 80% of maximum.
Weight 2.5 lb (1.1 kg) 12 ft (3.7 m)
3.4 lb (1.5 kg) 20 ft (6.1 m)
− − − −
Requirements for the torch connection
S Use only compressed air which is free from dirt, oil, and water.
S Ensure that the connections are properly assigned and tightened.
S For torch replacement, see Miller torch manual Part No. OM-254449
S Ensure correct air pressure (flow pressure) and airflow (volume) are set. Insufficient airflow can lead to the torch overheating.
3-6. XT40 Torch Dimensions
Ref. 253 554-A
1-3/16 in.
(30 mm)
8-3/4 in.
(222 mm)
1-1/2 in.
(38 mm)
