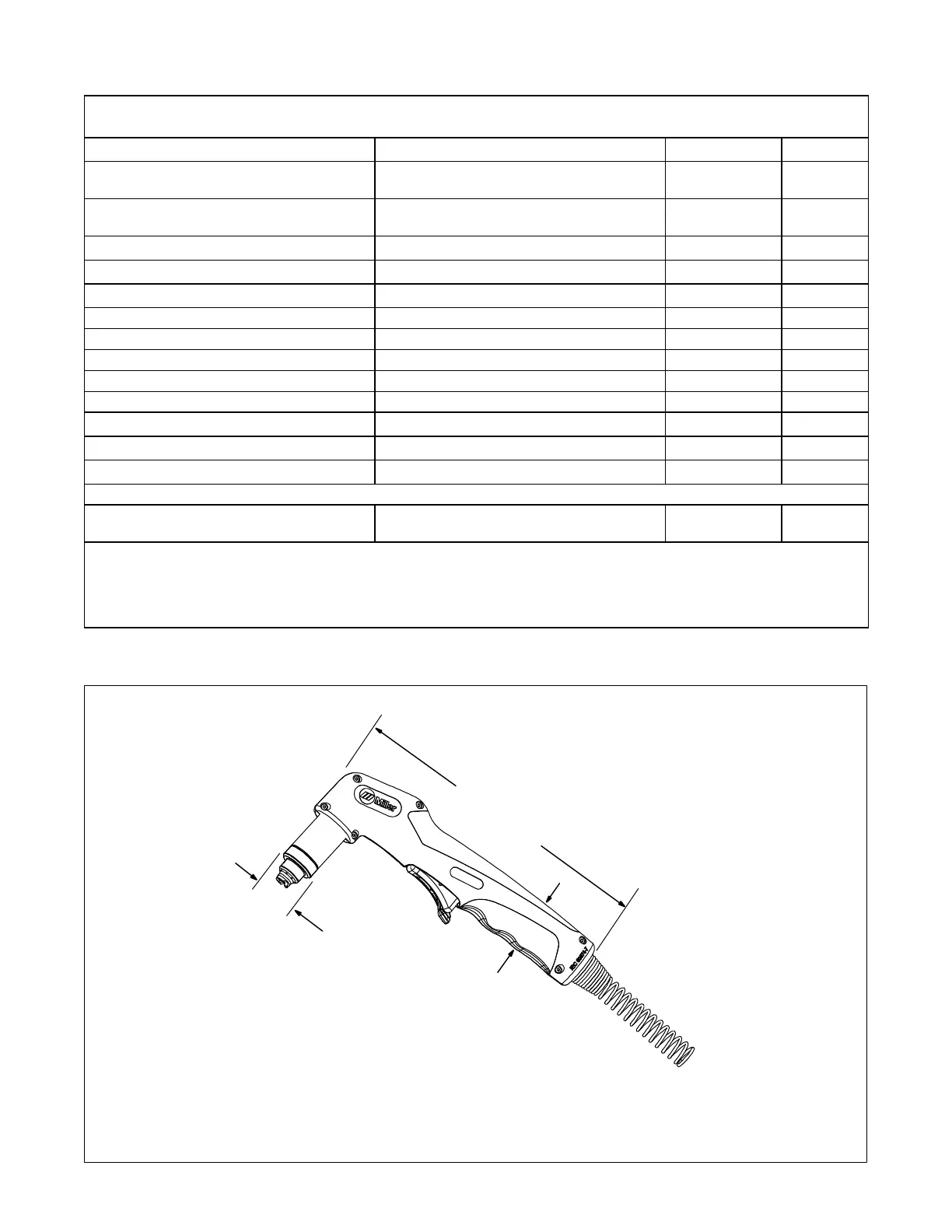

3-7. XT60 Torch Specifications
Torch − The XT60 torch is intended for handheld use only. The torch conforms to IEC 60974-7 when used with the Spectrum 875 or
Spectrum 875 Auto-Line. Do not use this torch in combination with any other machines.
Gas Type Air or Nitrogen
−− −−
Gas Quality
Clean, moisture−free,
oil−free
−− −−
Gas Inlet Flow and Pressure 6.5 SCFM (184 L/min)
90 PSI (621 kPa)
Min
120 PSI (827
kPa) Max
Gas Filtering Particulates to 5 microns
−− −−
Cooling Method Air
−− −−
Duty Cycle of Torch 100% at 60 Amps
−− −−
Rating of Electrical Controls (Trigger) 30 VDC at .1 Amps − − − −
Rating of Electrical Controls (Cup) 30 VDC at 1 Amp − − − −
Approved Systems Spectrum 875 or 875 Auto-Line w/XT60 torch
Trigger Protection Safety trigger guard
Safety Devices Safety interlock devices shut down power source
Rated Capacity (edge start) 7/8 in. at 13 ipm (22.2 mm at 330 mm/min)*
−− −−
Sever Cut Capacity (edge start) 1-1/4 in. at 3 ipm (31.8 mm at 76 mm/min)*
−− −−
Pierce Capacity 7/16 in. (11.1 mm)
−− −−
*Travel speeds are approximately 80% of maximum.
Weight 4.1 lb (1.9 kg) 20 ft (6.1 m)
8.1 lb (3.7 kg) 50 ft (15.2 m)
− − − −
Requirements for the torch connection
S Use only compressed air which is free from dirt, oil, and water.
S Ensure that the connections are properly assigned and tightened.
S For torch replacement, see Miller torch manual Part No. OM-254449
S Ensure correct air pressure (flow pressure) and airflow (volume) are set. Insufficient airflow can lead to the torch overheating.
3-8. XT60 Torch Dimensions
Ref. 265 001-A
1-3/16 in.
(30 mm)
8-3/4 in.
(222 mm)
1-1/2 in.
(38 mm)
