OM-254 449 Page 27
SECTION 7 − PARTS LIST
1 249 970 Torch Handle Kit (1)
2 249 971 Torch Trigger (1)
3 249 957 Leads, 12 ft (1)
4 252 938 Torch Body Kit (1)
5 249 972 Torch Trigger Assembly
w/Spring (1)
252 951 Grease, Silicone (1)
249 949 Torch, Replacement 12 ft (1)
1
1
2
3
4
5
Item
No.
Part
No. Description
See Figure 7-2 for
additional consumable parts.

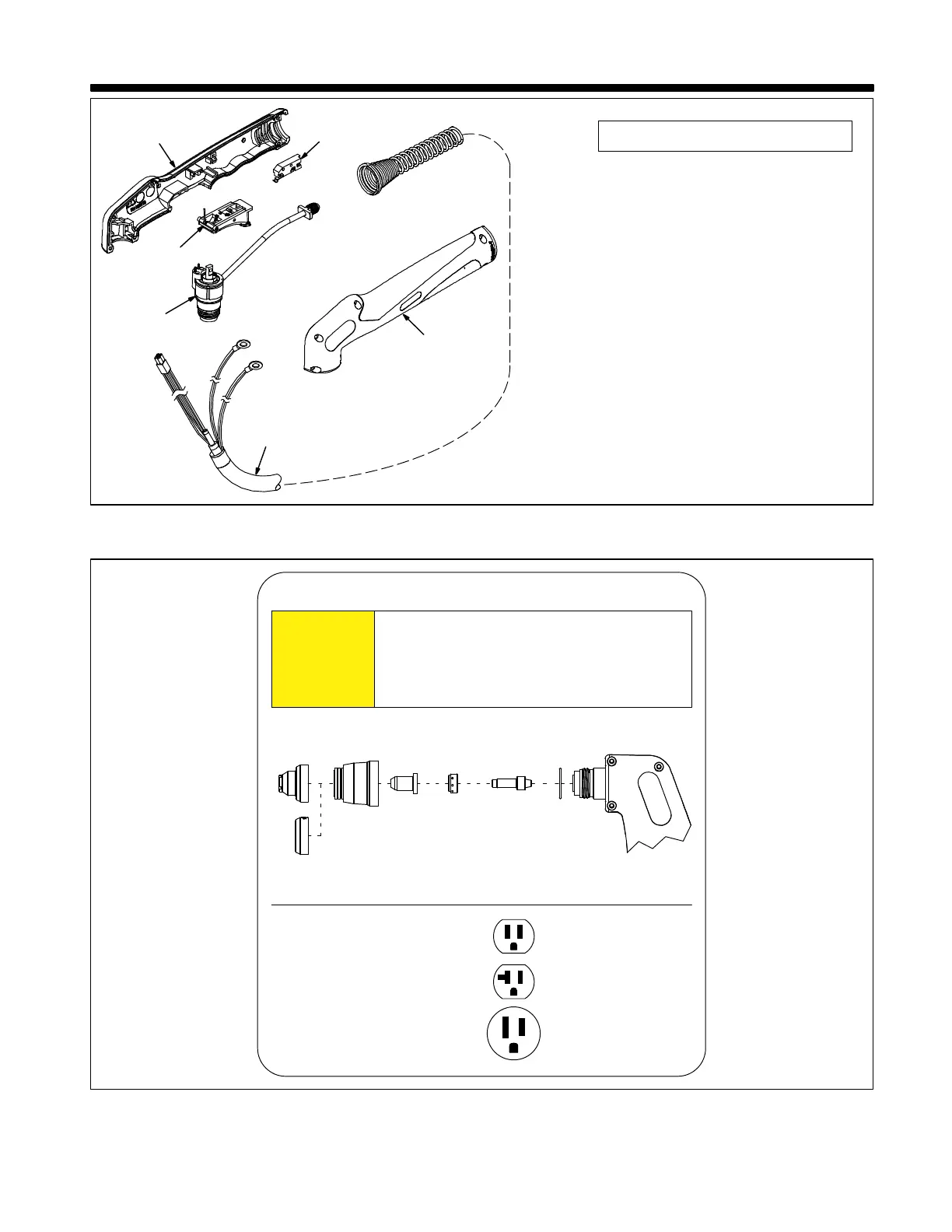

Figure 7-1. Torch, XT30
253 524-A
253524-A
CAUTION
XT30 CONSUMABLES
PLUG CONFIGURATIONS
TO USE WITH THE BRANCH
CIRCUITS SHOWN.
15A MVP 120V
219 261
20A MVP 120V
219 259
50A MVP 240V
219 258
FAILURE TO REPLACE WORN TIP OR
ELECTRODE WILL DAMAGE TORCH
AND VOID WARRANTY.
S
S
Turn off power before checking torch parts.
Check before each use and hourly during operation.
Drag
Shield
249930
Extended Consumable
Shield Deflector
249933
Retaining
Cup
249932
Tip
249927
Electrode
249926
Swirl Ring
249931
O-Ring
249969
Figure 7-2. Consumable Parts For XT30 Torch
To maintain the factory original performance of your equipment, use only Manufacturer’s Suggested
Replacement Parts. Model is required when ordering parts from your local distributor.
