Miller XT30C - Connecting and Disconnecting 40 Ampere (XT40) Torch on Spectrum 625 X-TREME; (Stock No. 907 579), and Using Trigger Safety Lock; Connecting and Disconnecting Work Cable on Spectrum 625 X-TREME; (Stock No. 907 579)

OM-254 449 Page 19

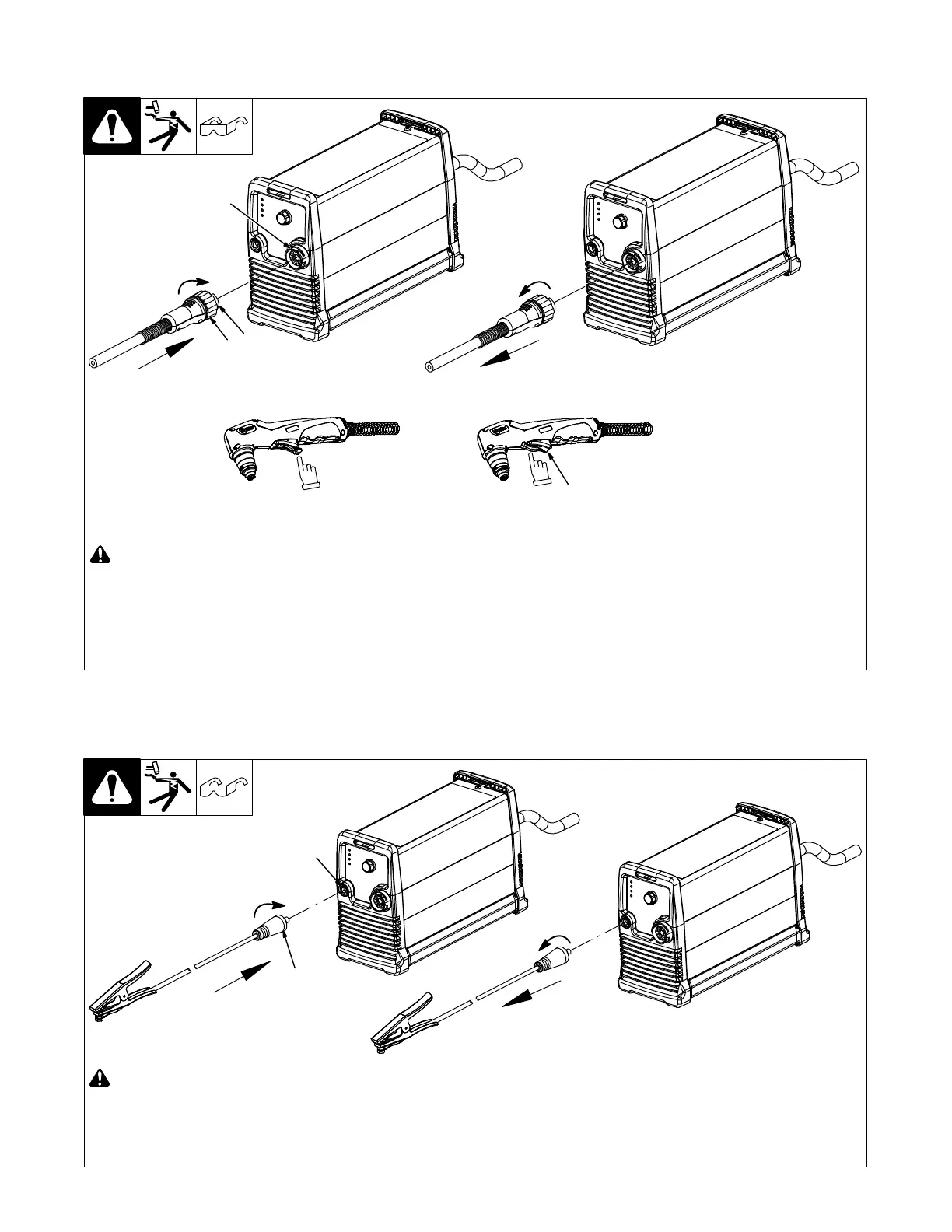

4-6. Connecting And Disconnecting 40 Ampere (XT40) Torch On Spectrum 625 X-TREME
(Stock No. 907 579), And Using Trigger Safety Lock
! Turn off power source and discon-
nect input power.
1 Torch Connector
2 Quick Connect Collar
3 Receptacle
To connect torch:
Align torch connector key with receptacle
keyway, and insert into receptacle. Rotate
collar until it firmly snaps into the locked
position.
To disconnect torch:
Rotate collar to release torch connector
from receptacle and pull torch connector
away from unit.
4 Trigger
Ref. 253554-A / Ref. 264 954-B
2
1
3
Trigger Locked
Trigger Unlocked
4
4-7. Connecting And Disconnecting Work Cable On Spectrum 625 X-TREME
(Stock No. 907 579)
Ref. 264 954-B / Ref. 803 475-G
! Turn off power source and discon-
nect input power.
1 Work Cable Plug
2 Work Cable Receptacle
To connect plug, align key with receptacle
keyway and insert into receptacle. Rotate
plug clockwise (hand tight only) 1/4 turn to
secure in receptacle.
To disconnect plug, rotate counterclock-
wise until key aligns with keyway and pull
plug from receptacle.
2
1
