B. Three pump system

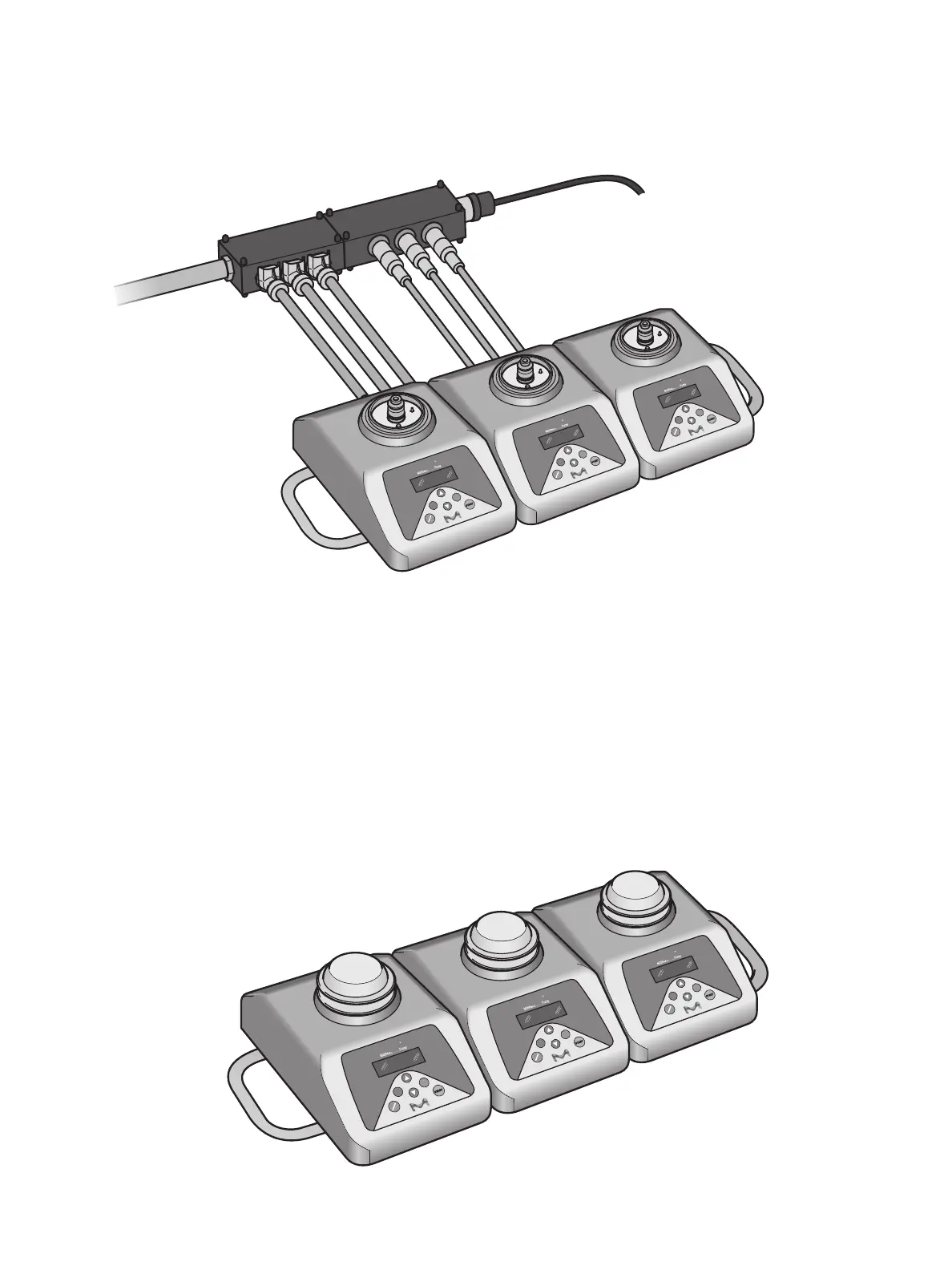

When using a three pump system, it is strongly recommended to assemble the pumps on the Manifold tray,
and to use the Hub kit for the electrical and uidic connections.
Millipore
VHP
ON
C
OK
START
OFF
Millipore
VHP
ON
C
OK
START
OFF
Millipore
VHP
ON
C
OK
START
OFF
It is recommended to assemble the pumps together before placing the system in the isolator. The use of
the tray facilitates the transfer of the assembled system to the isolator.
Caution: when assembled, the system is heavy (14.3 kg without the heads). Make sure you can handle the
system to transfer to the isolator.
1. Assembly of the 3 pumps on the tray
Do not place the pump head at this stage.
• Put the pump lead on each pump to protect them through the assembly step.
Millipore
VHP
ON
C
OK
START
OFF
Millipore
VHP
ON
C
OK
START
OFF
Millipore
VHP
ON
C
OK
START
OFF
