Installation
1
2
3
5
1
2
2
2
2
2
3
2
3
4
4
4

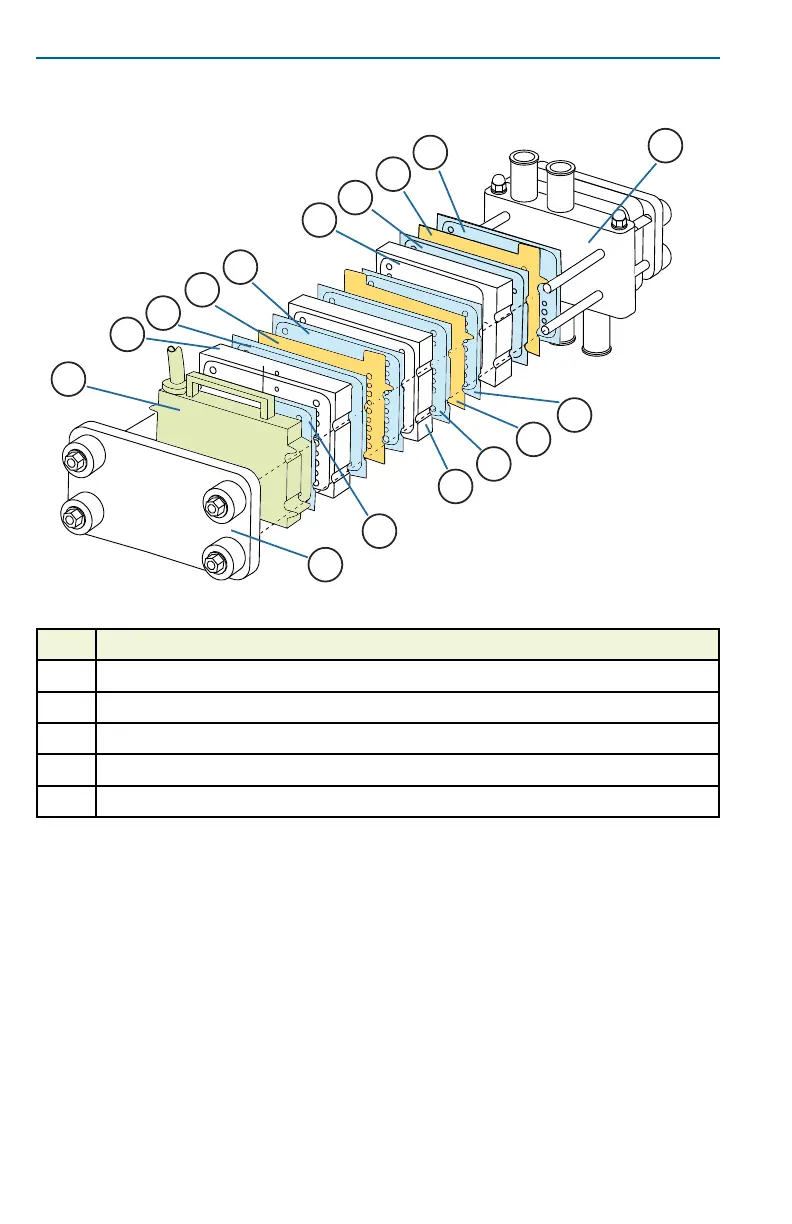

Key Description
1 Holder end plate
2 Gasket
3 Pellicon
®
Single-Pass TFF Cassette diverter plate
4 Pellicon
®
2 Cassette
5 Pellicon
®
Single-Pass TFF Cassette retentate collection plate
1. Loosen the nuts on the tie rods of the holder and remove the
nuts, washers, tie rod spacers and end plate.
2. Slide the Pellicon
®
2 Cassette gasket onto the holder.
3. Slide the Pellicon
®
Single-Pass TFF cassette diverter plate onto
the holder so the tab on diverter plate is on the feed flow side
of the holder.
4. Slide a gasket onto the holder.
5. Slide a Pellicon
®
2 Cassette onto the holder.
6. Slide a gasket onto the holder.
7. Slide a diverter plate onto the holder so the tab on diverter
plate is on the opposite side of the previous diverter plate.
