Pellicon
®
Single Pass TFF Accessories Installation and User Guide 11
8. Slide a gasket onto the holder.
9. Install the next Pellicon
®
2 Cassette.
10. Complete the installation with the required number of diverter
plates, alternating the location of the tabs on the diverter
plates.
11. Slide a gasket onto the holder.
12. To finalize the serial flow path, install the Pellicon
®
Single-
Pass TFF Cassette retentate collection plate onto the holder
by aligning the retentate collection openings of the retentate
plate so they are on the opposite side of the feed tab of the last
diverter plate installed.
NOTES
The handle of the retentate plate may be removed to allow
stacking of multiple process scale holders.
The retentate collection plate has two retentate outlet ports
(3/4-inch TC) for installation flexibility. Use one to collect
concentrated retentate and cap the unused port.
The permeate is collected through the Pellicon
®
holder
permeate ports.

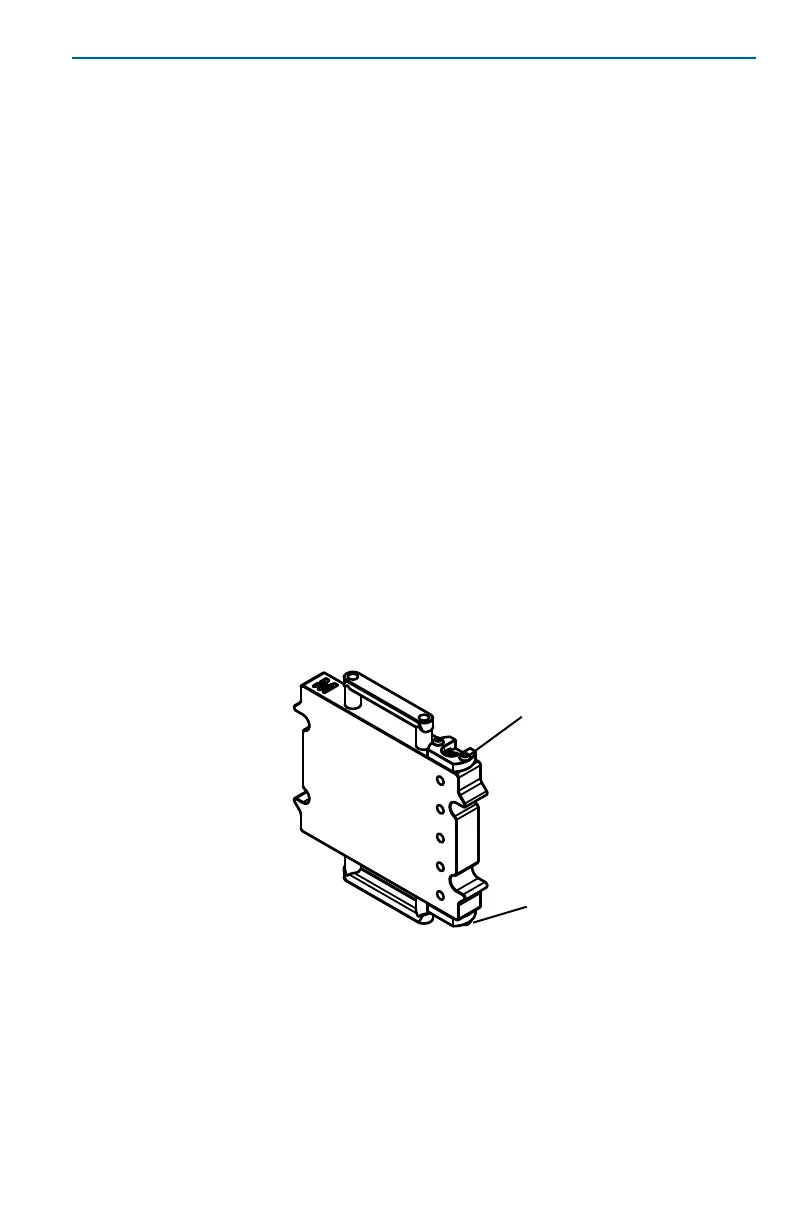

Retentate Collection Plate
13. Install the end plate of the holder and torque the holder
using the specifications described in the Pellicon
®
2 Cassette
Installation Guide.
Retentate port
Retentate port
