Installation

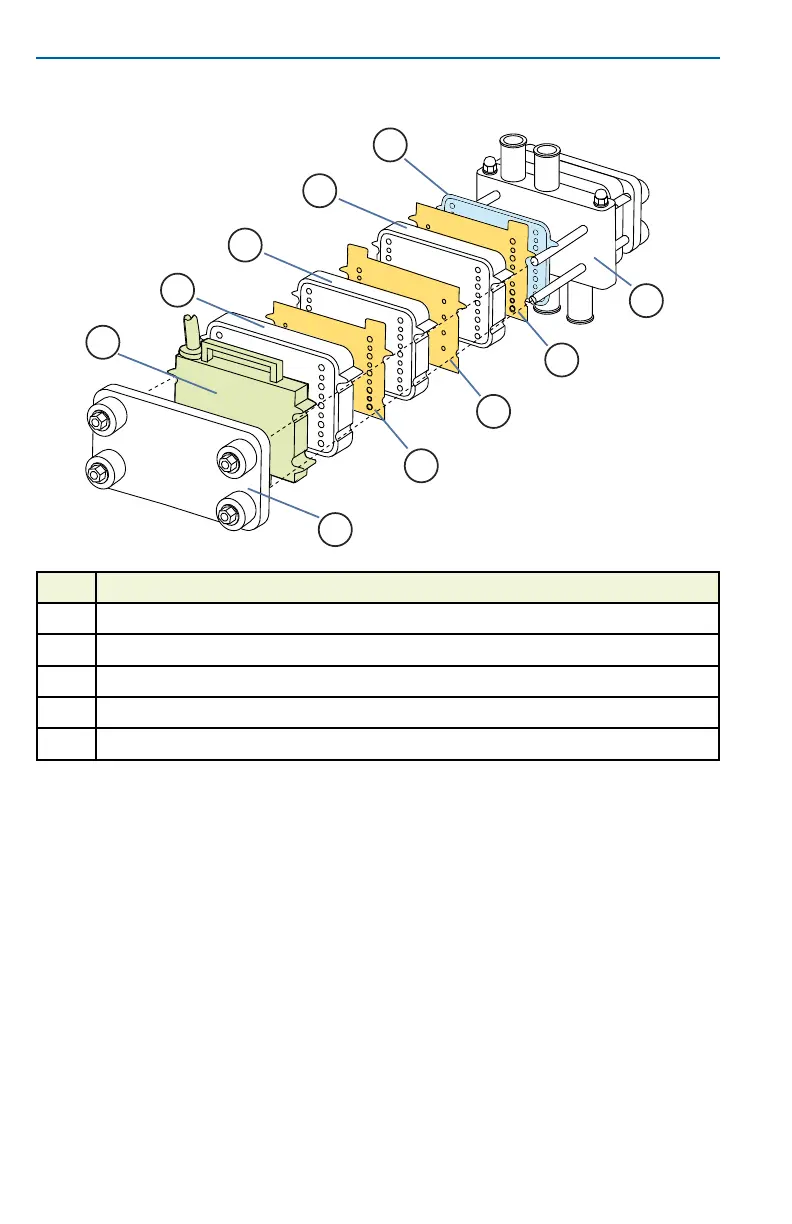

Key Description
1 Holder end plate
2 Pellicon
®
Single-Pass TFF Cassette diverter plate
3 Pellicon
®
3 0.57 m
2
or 1.14 m
2
Cassette
4 Pellicon
®
Single-Pass TFF retentate collection plate
5 Pellicon
®
3 manifold adapter plate
1. Loosen the nuts on the tie rods of the holder and remove the
nuts, washers, tie rod spacers and end plate.
2. Slide the Pellicon
®
2 inter-cassette gasket or Pellicon
®
3 Manifold
Adapter Plate onto the holder.
3. Slide the Pellicon
®
Single-Pass TFF cassette diverter plate onto
the holder so the tab on diverter plate is on the feed flow side
of the holder.
4. Slide a Pellicon
®
3 Cassette onto the holder.
5. Slide a diverter plate onto the holder so that the tab on the
diverter plate is on the opposite side of the previous diverter
plate.
6. Install the next Pellicon
®
3 Cassette.
