7. Complete the installation with the required number of diverter
plates, alternating the location of the ports on the diverter
plates.
8. To finalize the serial flow path, install the Pellicon
®
Single-
Pass TFF Cassette retentate collection plate onto the holder by
aligning the retentate collection openings of the retentate plate
to be on the opposite side of the feed tab of the last diverter
plate installed.
NOTE
The handle of the retentate plate may be removed to allow
stacking of multiple process scale holders.
The retentate collection plate has two retentate outlet ports
(3/4-inch TC) for installation flexibility. Use one to collect
concentrated retentate and cap the unused port.
The permeate is collected through the Pellicon
®
holder
permeate ports.

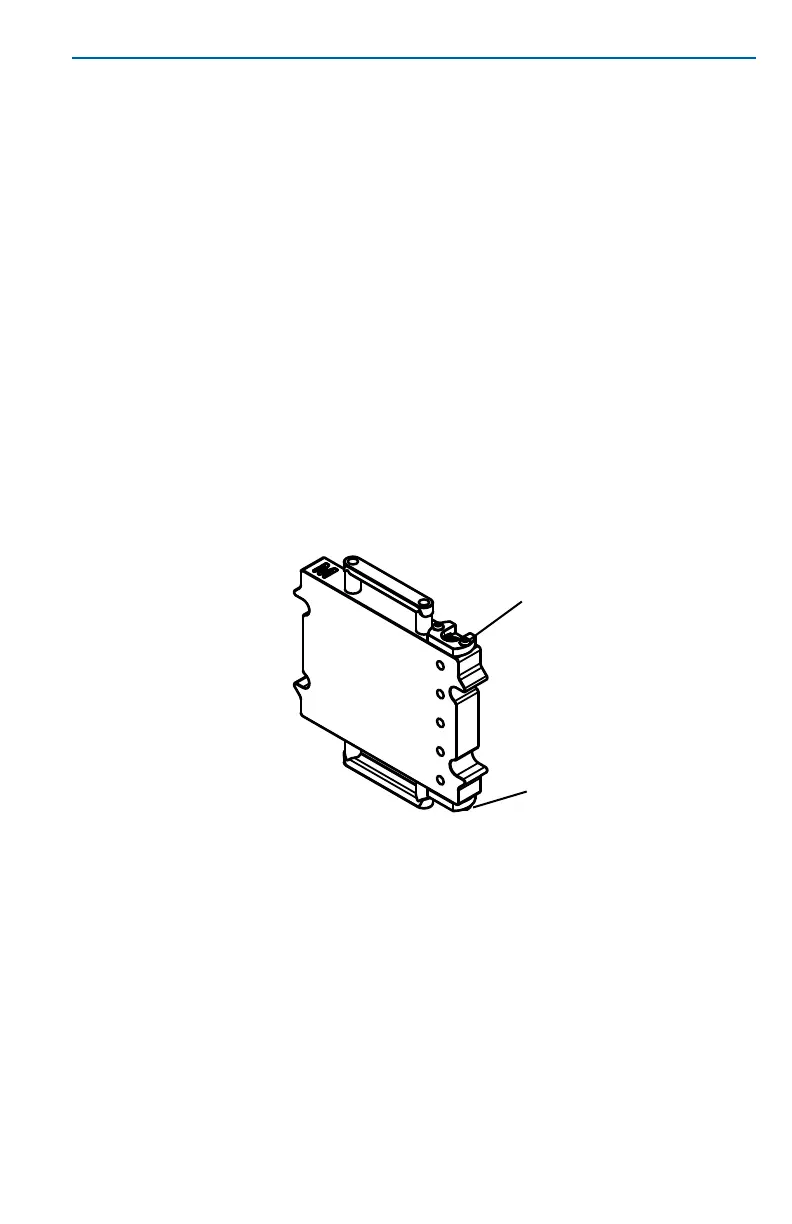

Retentate Collection Plate
9. Install the end plate of the holder and torque the holder
using the specifications described in the Pellicon
®
3 Cassette
Installation Guide.
Retentate port
Retentate port
