MPS Doc: M359_USER_MANUAL REV G January 17, 2010 Page 26 of 30
The remote switches should be rated to 28Vac, 0.25AMP.
#(1%&!2$'#5##"#
2$$"""$$*
(1--%&$)$$)1$?,!!*
#"$!/(13&10%&))#$),!!%2
1$>*/7$) %#20*
J4: D-Type-15S
Pin Symbol
3, 4 and 5 Common Signals Return
8 Remote PWR ON/OFF
6 Remote UPS Select
7 Remote By-Pass Select
3
4
5
6
7
8
RMT PWR
RMT Select
On
Off
UPS
BY-PASS
J4
D-Type-15S
Rear Panel
Note: Pins 3, 4 and 5 are connected in parallel internal to the
M359.
One or all may be used, as convenient.

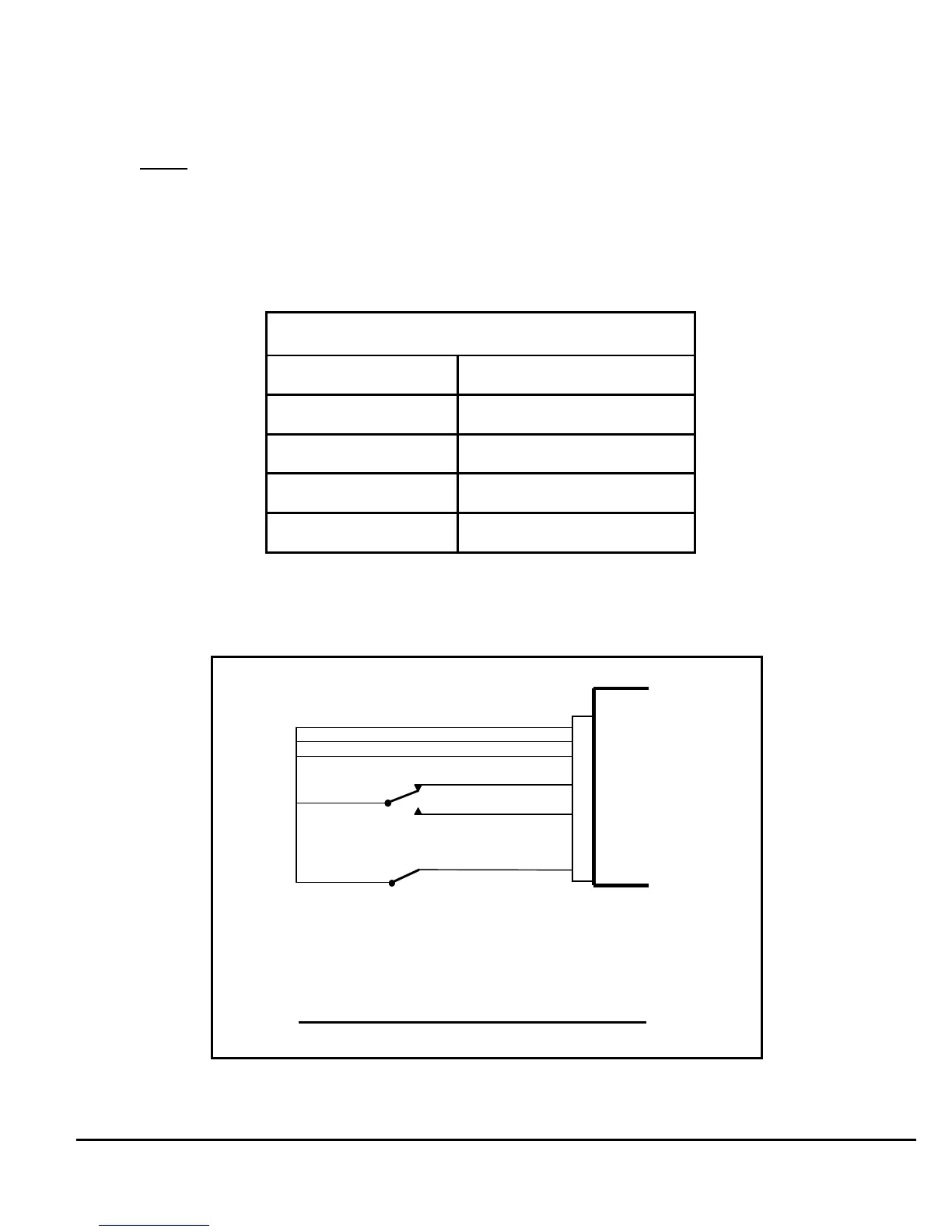

Figure 10: Remote Switch Connections
