Milton Roy G Series Instruction Manual

I - 1
PART I - DESCRIPTION
I - 1. UNPACKING AND STORAGE
UNPACKING
The packaging must be carefully examined on receipt in
order to ensure that the contents have not sustained
any obvious damage. Precautions must be taken when
opening the packaging in order to avoid damaging
accessories which may be secured inside the
packaging. Examine the contents and check them off
against the delivery note.
STORAGE PRECAUTIONS
Storage for less than six months
Equipment shall preferably be stored in its original
packaging and protected from adverse weather
conditions.
Storage for more than six months
 Store the pump in its original packaging. In
addition, packaging in heat-sealing plastic cover
and dessicant bags must be provided for. The
quantity of dessicant bags should be adapted to
the storage period and to the packaging volume.
 Store protected from adverse weather
conditions.
I - 2. DESCRIPTION
The « SERIES G » Model A pump is a compact
electromechanical metering pump that is life-lubricated
with oil in a sealed housing, with capacity adjustment in
operation or when stopped.
It is made up of the following components (Fig. 1.2a):
* a drive device comprising a motor [1],
* a mechanical assembly [2],
* a liquid end [3].
1
Motor
8
Stroke locking device
2
Mechanical assembly
9
Leak detection port
3
Liquid end
10
4-function valve *
4
Stroke adjustment knob
11
Valve assembly (suction)
5
Control unit (frequency control)
12
Valve assembly (discharge)
6
Liquid end mounting assembly
* Accessory supplied as optional equipment with pumps equipped with plastic liquid end <22 l/h.

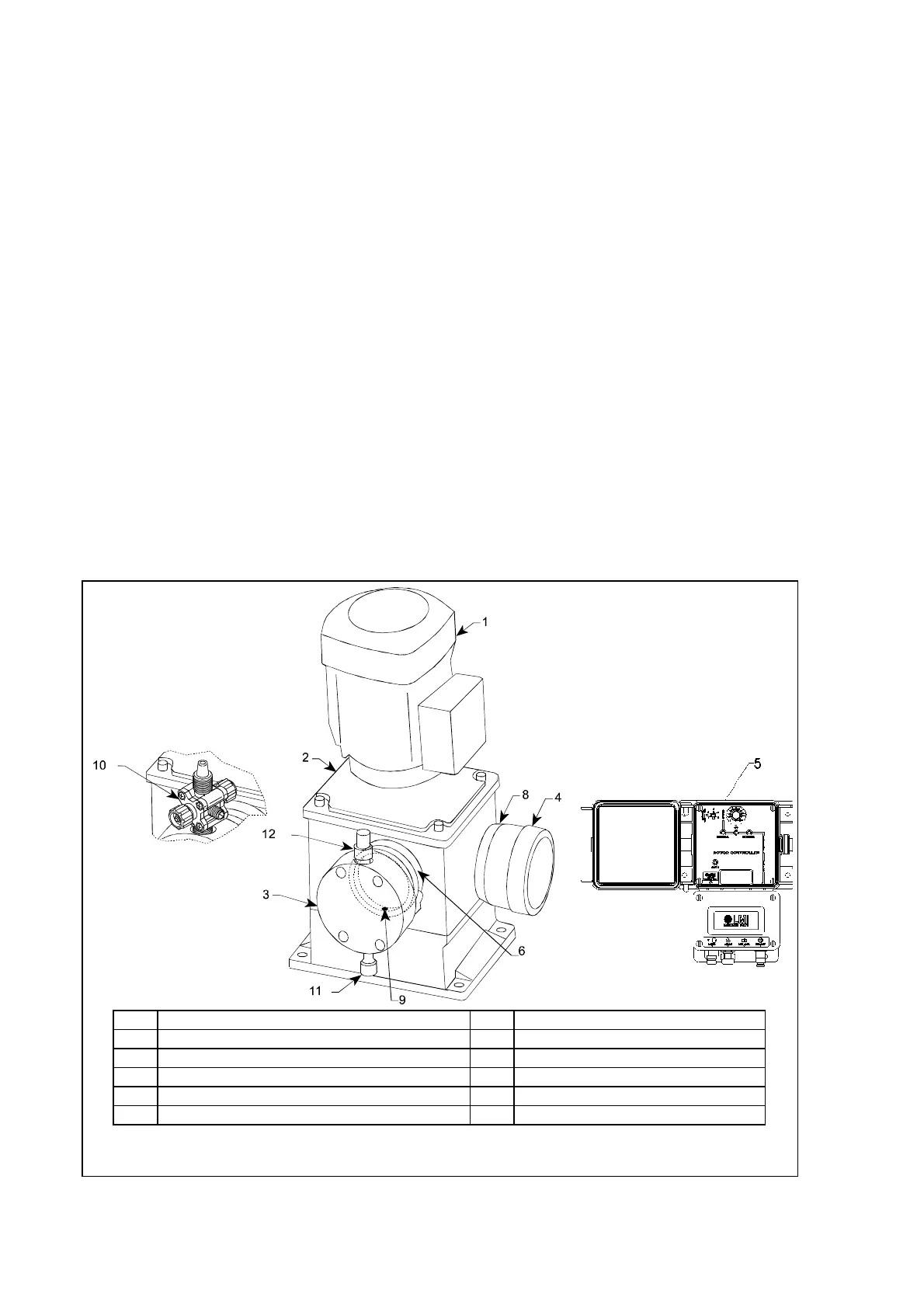

Fig. 1.2a: Model A, series G pump
