Milton Roy mROY - FIGURE 1. Assembly Pneumatic Capacity Control

10 Instruction Manual
1010
1000
220
980
1070
1100
1020
1050
1090
1040
990
215
1060
1080
1130
1110
1120
1140
1030
150
1145
- (ACTUATOR)
ITEM NO. DESCRIPTION
0
MROY PCC INSTRUCTION MANUAL
220
CLIP 1/4 E-RING EXTERNAL
150
PLUG 1 NPT LVLSL HEXS 18-8SS
150
PLUG 1/2 NPT LVLSL HEXS 18-8SS
215
ADAPTER
980
MOUNT FLANGE MROY A PNEU.
990
O-RING .921 X .139 BUNA N
1000
INT TOOTH LOCK WASHER #6 Z PL
1010
RD HD SCR #6-32NCX7/16 Z PLT
1020
5/16-18 SLOTTED SHOULDER SCREW
1030
O-RING#2-011 70 DURO URETHANE
1040
PISTON
1050
O-RING 2-226 BUNA N
1060
FIL HD SCR 1/4-20X1/2 ZPL
1070
GASKET, PNEUMATIC CYLINDER
1080
PNEUMATIC CYLINDER POLYCARBONA
1090
SPRING, ACT SH -P/N 6240-23
1100
GASKET PNEUMATIC POSITIONER
1110
STUD
1120
MOORE POSTIONER MODEL 73N12F
1140
PNEUMATIC % CAPACITY DECAL RA
1130
1/4-20 HEX NUT SS

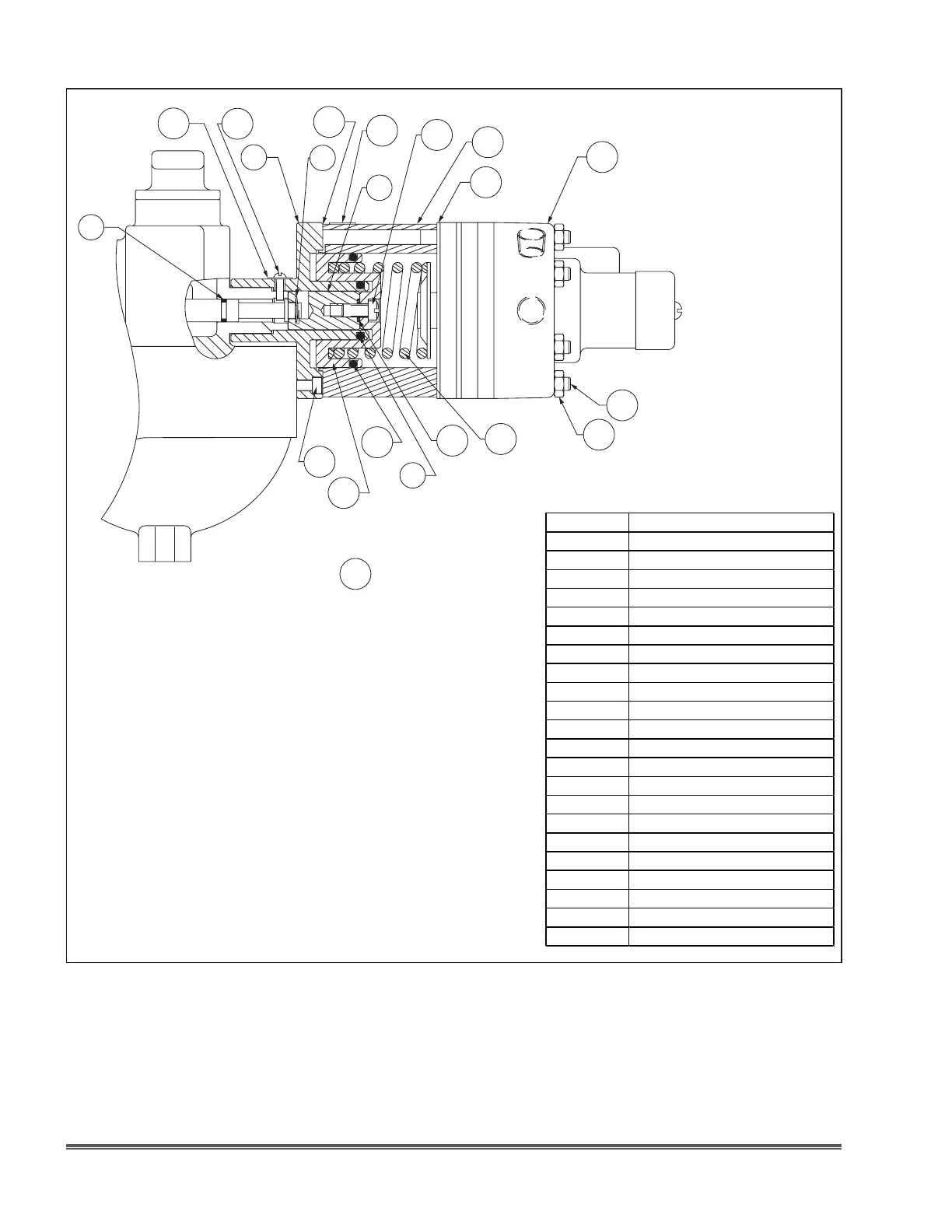

Figure 1. Assembly Pneumatic Capacity Control (102197100015)
