Milwaukee MA887 - Front Panel Components; Bottom Compartment

44
44
4
Instruction Manual MA887 Refractometer for Seawater Measurements
I. BATTERY COVER
J. BATTERY COMPARTMENT
BOTTOMBOTTOM
BOTTOMBOTTOM
BOTTOM

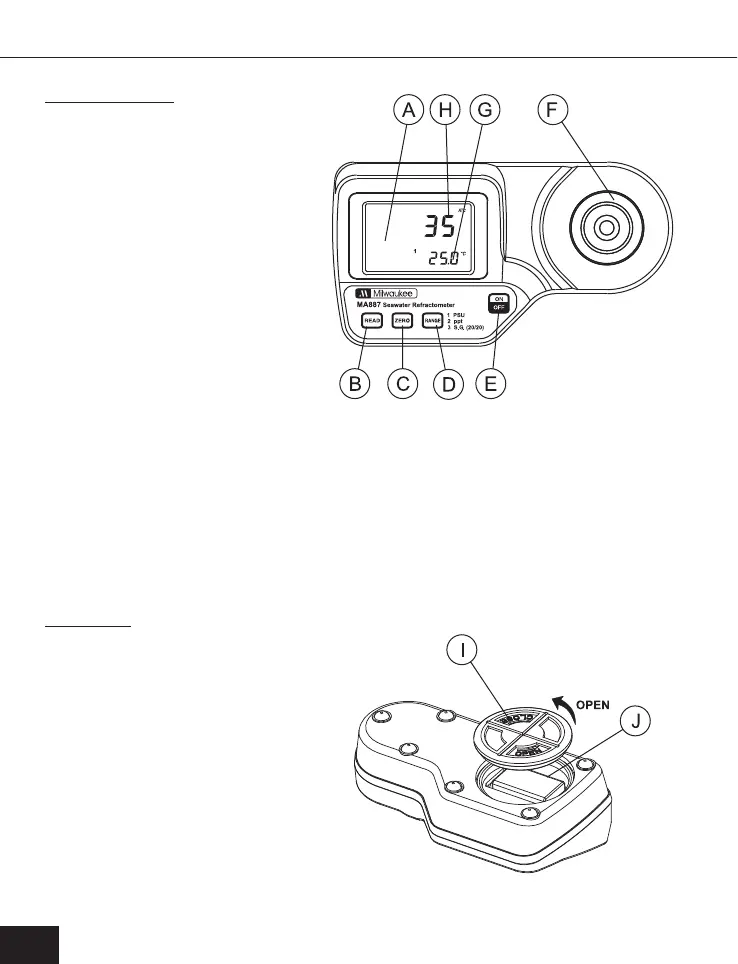

A. LIQUID CRYSTAL DISPLAY (LCD)
B. READ KEY (USER MEASUREMENT)
C. ZERO KEY (USER CALIBRATION)
D. RANGE KEY (USER MEASUREMENT UNIT)
E. ON/OFF
F. STAINLESS STEEL SAMPLE WELL AND PRISM
G. SECONDARY DISPLAY
H. PRIMARY DISPLAY
FRONT PANELFRONT PANEL
FRONT PANELFRONT PANEL
FRONT PANEL
