Ｄ900675-13

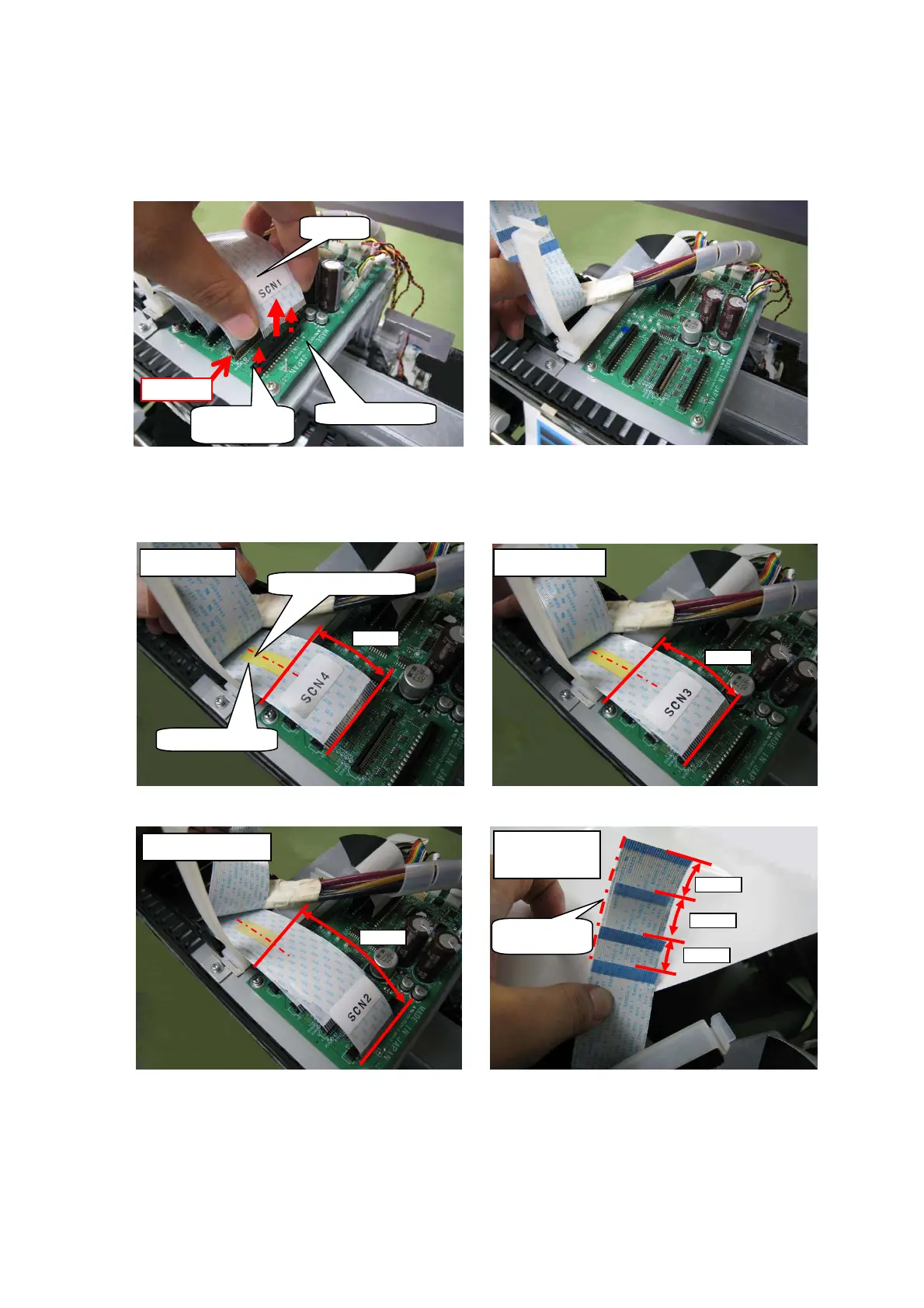

(3) Release the connector lock on the Slider PCB ASSY and remove 4 FFC.
Caution1: For electrical discharging, be sure to leave the machine more than
15 minutes afterturning off to pull the FFC out.
Caution2: Treat the lock gently because the lock of CN2 is fragile especially.
(4) Apply the double-stick tape to the following position in the order of Photo A to C and
fix 4 FFC as the Photo D.
Slider PCB
FFC
Double stick
30mm
Guide center of FFC
Photo A
45mm
Photo B
65mm
Photo C
18mm
18mm
Guide left of
FFC
Photo D
(Back of FFC)
18mm
Release the
connecotor
Caution
2/3
