Chapter 7 Maintenance
209
2
Select [Station Maint.] > [Carriage Out] > [Move To Platen Right End], then press the [ENTER]
key.
• The carriage moves over the platen.
3
Open the front cover.
• The carriage can be moved by hand. Move the carriage slowly to a position allowing easy
access while working.
4

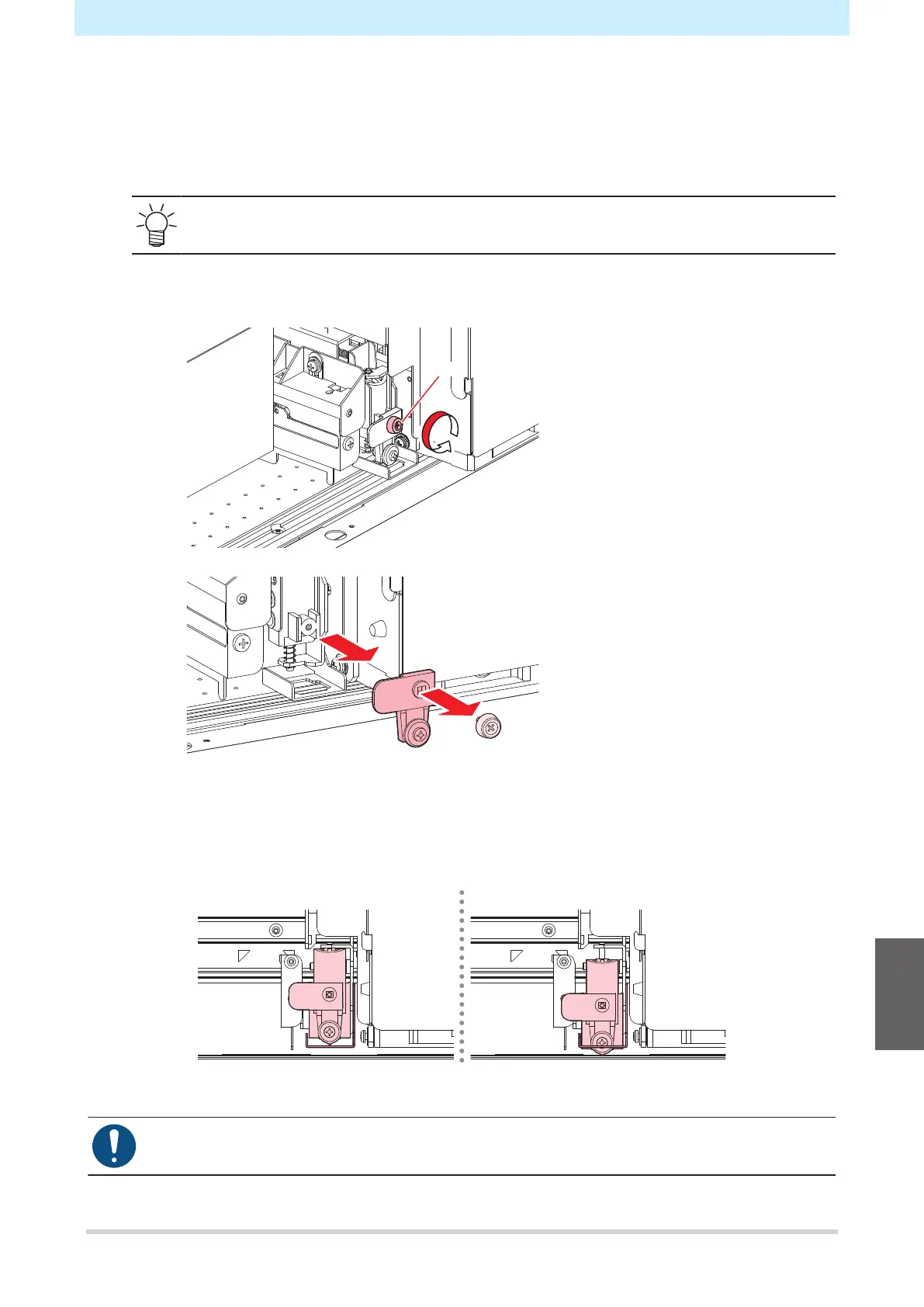

Replace the media cutter.
(1) Unscrew the cutter screw.
(2) Remove the cutter.
(3) Mount a new cutter.
(4) Tighten the screw to clamp the cutter.
5
Check the position of the media cutter.
• Lift up the media cutter by hand if it has dropped down.
6
Once replacement is complete, close the cover, then press the [ENTER] key.
• When disposing of the product, contact an industrial waste disposal operator or dispose of the
product in accordance with the local laws and regulations.
7
