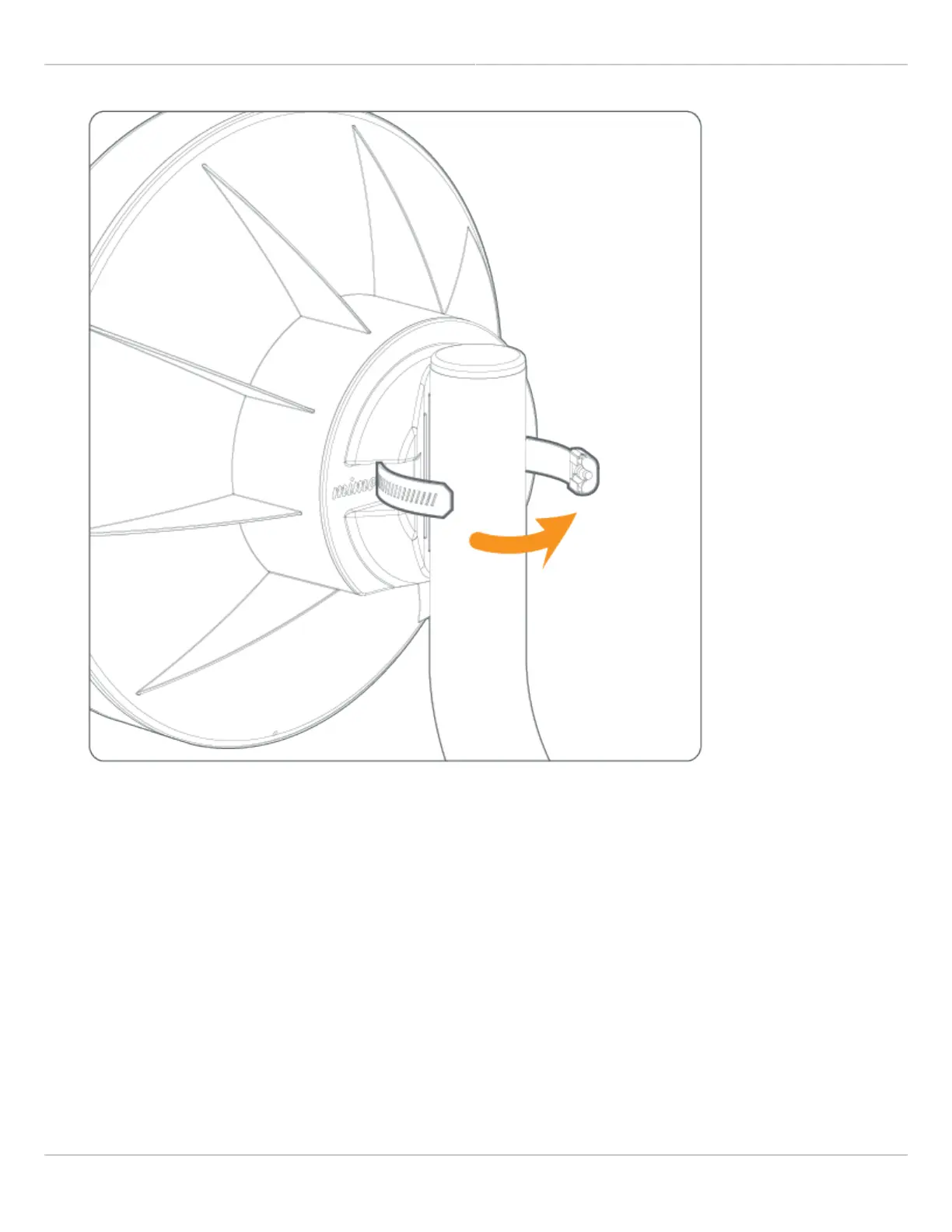

Mimosa Clients Mounting & Grounding
Copyright © 2014 Mimosa Page 19
Attach to Earth Ground3.
a) Attach a 6 mm
2
(10 AWG) ground wire (not included) between the C5 and a suitable grounding location. The
provided ground screw is M4 x 4mm with 0.7 thread.
b) Install the Mimosa Gigabit NID at the entry point for Electrostatic Discharge (ESD) protection.
