LED Status Indicators
Product Applicability: C5, C5c

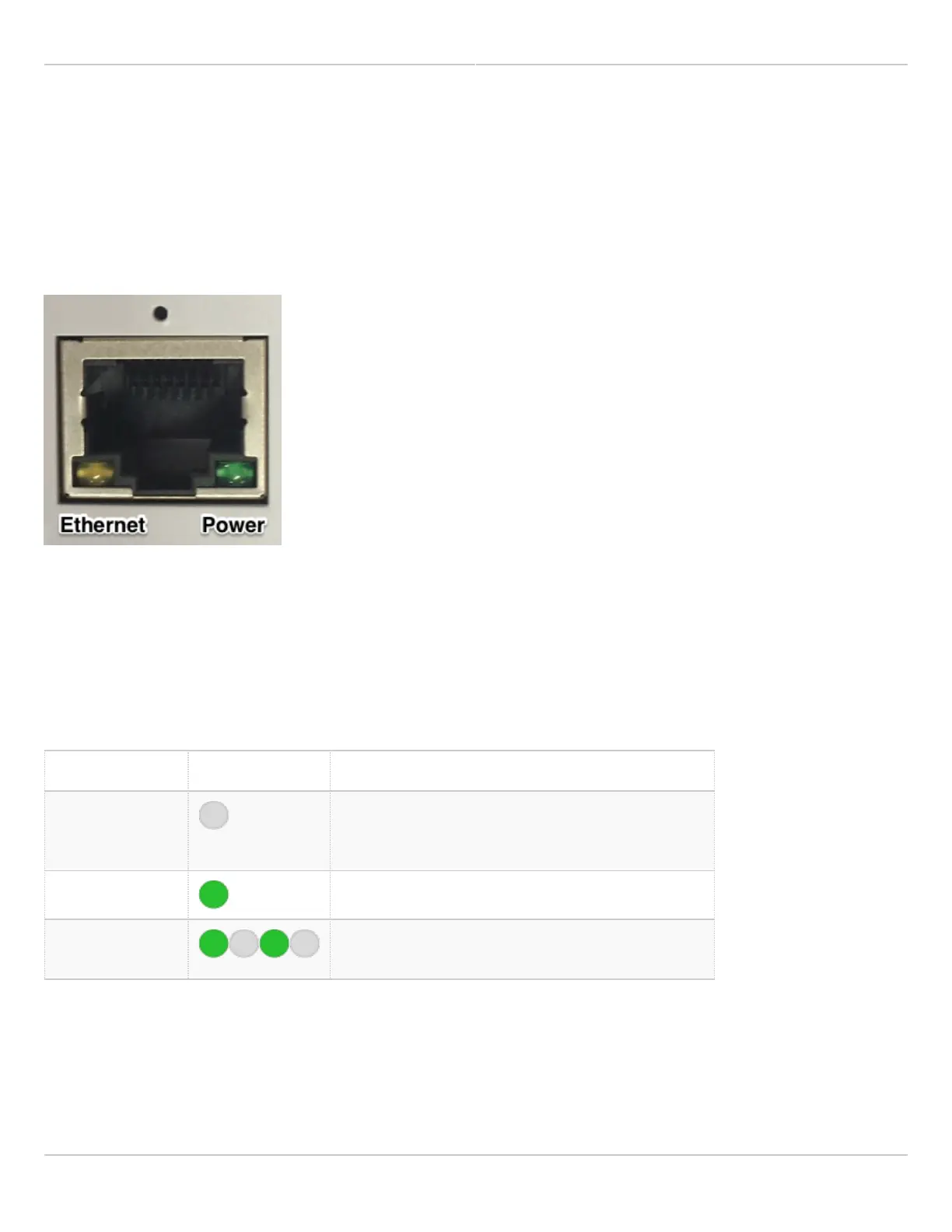

Two LED indicators are located on the RJ-45 jack to communicate operational status: Ethernet (Yellow) and
Power/Wireless (Green).
The tables below describe the meaning of each LED's state: Off, On (solid), On (blinking), and Color.
Power / Rx Signal Status LED Table
The Power / Rx Signal Status LED indicates the presence of power, and communicates Rx signal strength.
State LED Description
Off No Power to Device / Error
1
Note that if the yellow Ethernet Status LED is on,
this does not apply.
Solid Green Power On
Blinking Green Associated; Blink rate proportional to signal
strength
2
1
Please check wiring, cycle power, and then contact Mimosa Support if necessary.
2
Ranges from 1 Hz (one blink per second at -90 dBm or less) to 10 Hz (one blink per 100 ms at -50 dBm or greater).
