Connecting the Transducer to the System
2-2
For Portable Doppler Ultrasound System Compliant Transducer
Connecting the transducer:

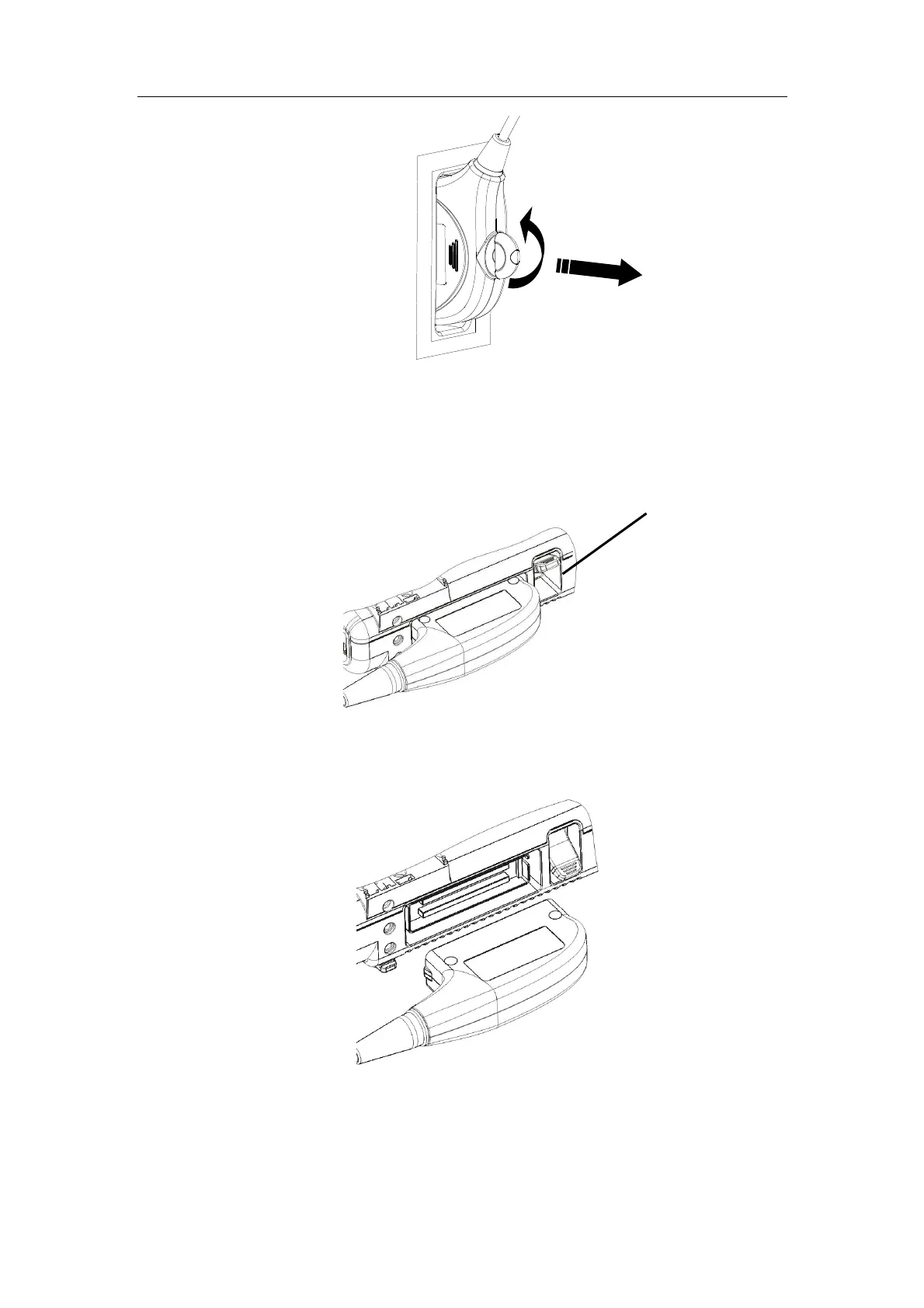

To connect the transducer, insert the connector fully into the socket. Toggle the transducer
lock lever, which beside the socket, to the upper position. See the figure below.
Disconnecting the Transducer:
To disconnect the transducer, toggle the transducer lock lever to the lower position, and pull
out the transducer evenly from the socket. See the figure below.
transducer lock lever
