Mindray BA-88A Service Manual

5 Service and Maintenance
5-11

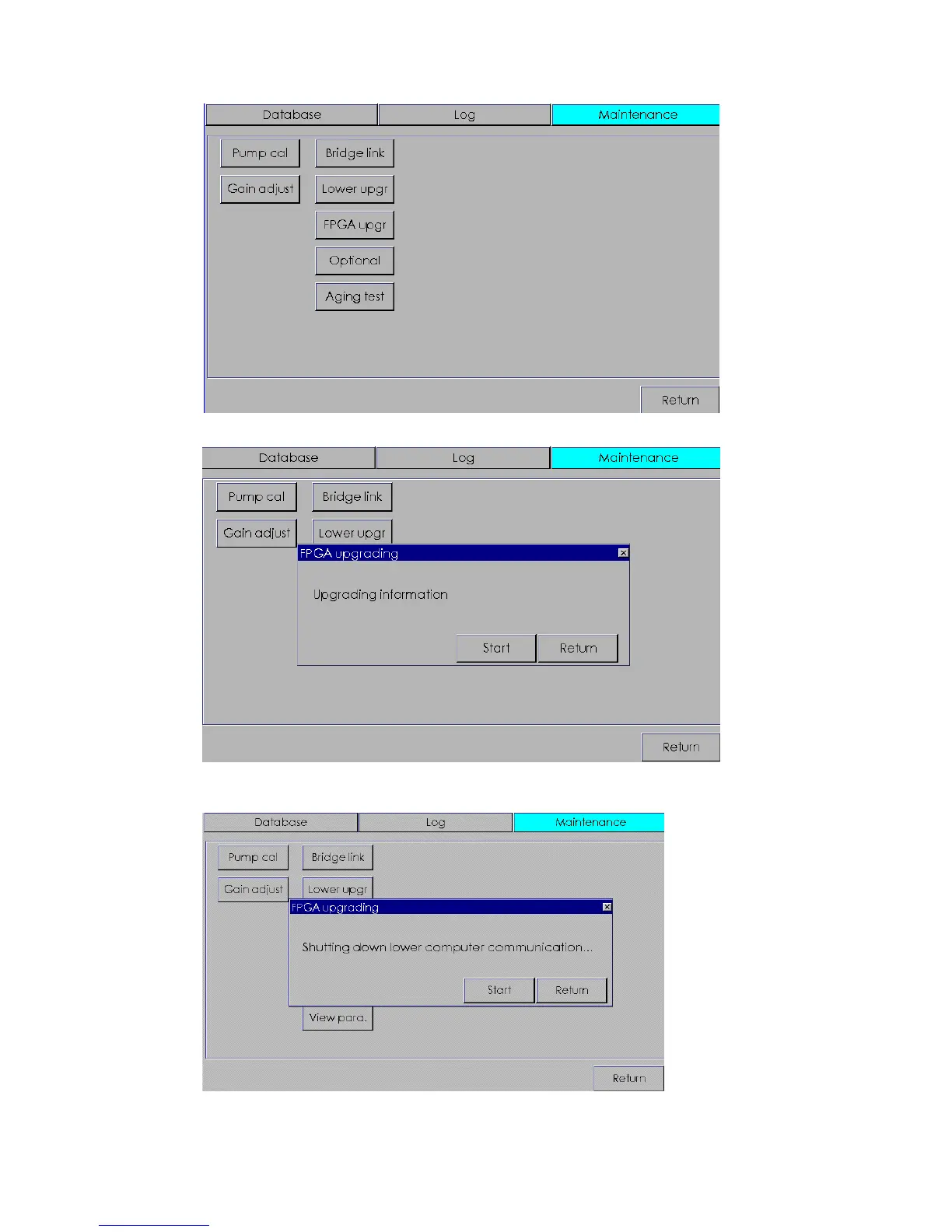

Click FPGA upgr and the FPGA upgrading dialog box will be displayed.
Click Start and a dialog box notifying the user to shut down lower computer
communication will be displayed.
After upgrading is completed, a dialog box will pop up to notify the user to restart.

Mindray BA-88A Specifications

General

Light source	Halogen lamp
Display	7 inch touch screen
Printer	Thermal printer
Interface	RS232
Wavelengths	340, 405, 546, 578, 630nm
Carry-over	< 1%
Power Supply	AC 100~240V, 50/60Hz
Operating Temperature	15-30°C
