These guidelines do NOT replace the instructions for use and all users should refer to the appropriate Operator’s Manual for detailed instructions.
The Illustrations may not necessarily reflect the setup or data displayed on your device.
BeneHeart R3 Clinical Education Pack SWL 02.07_V1 Mindray UK © 2020. Errors and omissions excepted. Subject to change.
Mindray® is a registered trademark of Shenzhen Mindray Bio-Medical Electronics Co. Ltd.
7

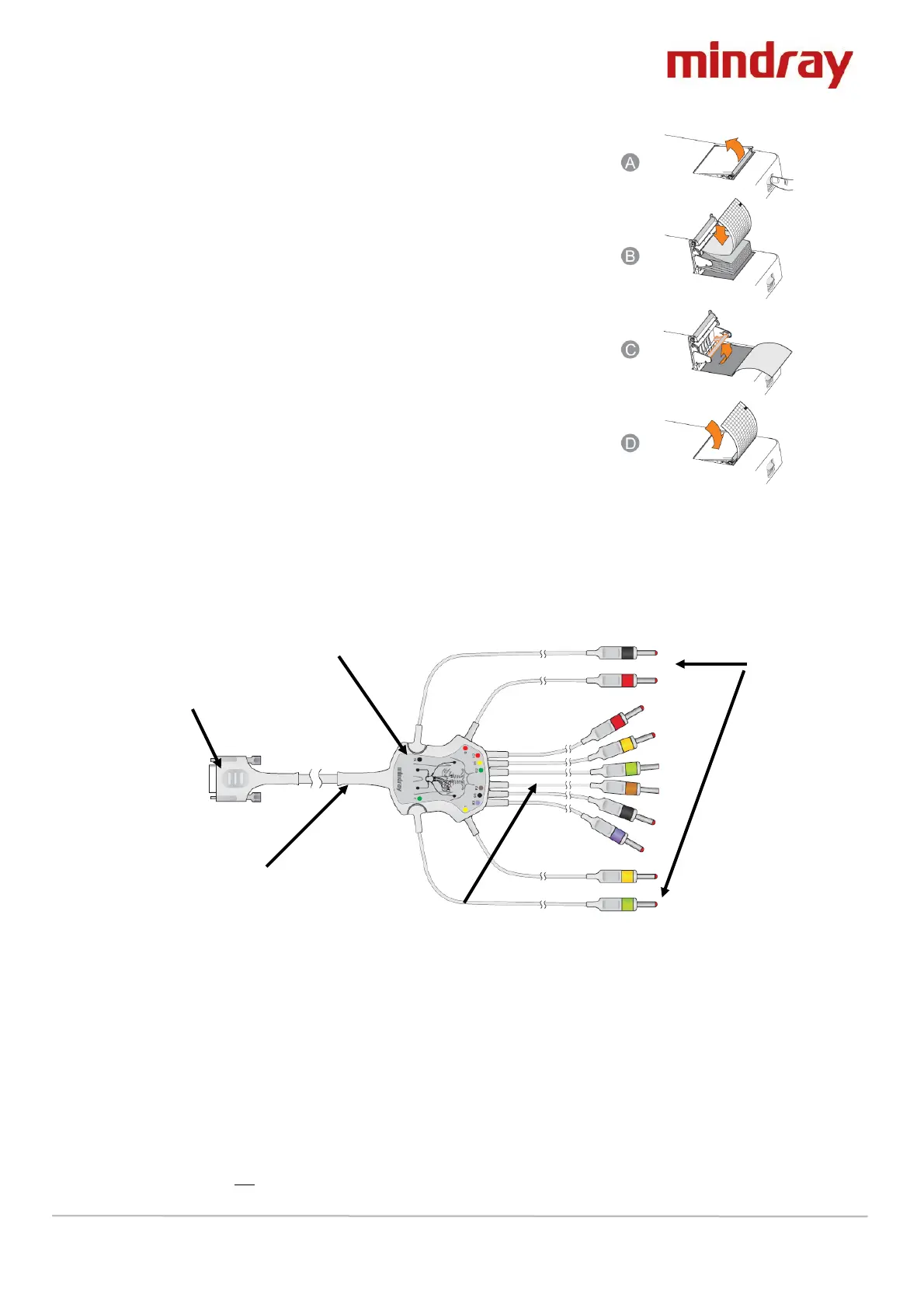

To Load Z-Fold Paper
Connecting the Patient Cable
The patient cable consists of a connector, a trunk cable, 4 limb lead wires and 6 chest lead wires. The
lead wires are colour-coded and a reference diagram can be seen on the trunk cable.
• Plug the patient cable to the connector on the right side of the equipment. Ensure the connector
on the cable is arrow-side up.
• Tighten the screws to securely attach the patient cable to the equipment.
• Attach the crocodile clips to the end of each lead wire to enable connection to the electrodes.
A. Press down the recorder door latch to open the recorder door.
B. Place the Z-fold paper pack into the paper compartment.
C. Lift the paper jam protector and click it into the openings at the
bottom of the paper roll holder. Unfold the first page of the Z-fold
paper pack. Make sure the grid side faces the thermal print head.
D. Close the recorder door. Overlap the unfolded paper on the
recorder door. Make sure the grid side is facing up.
