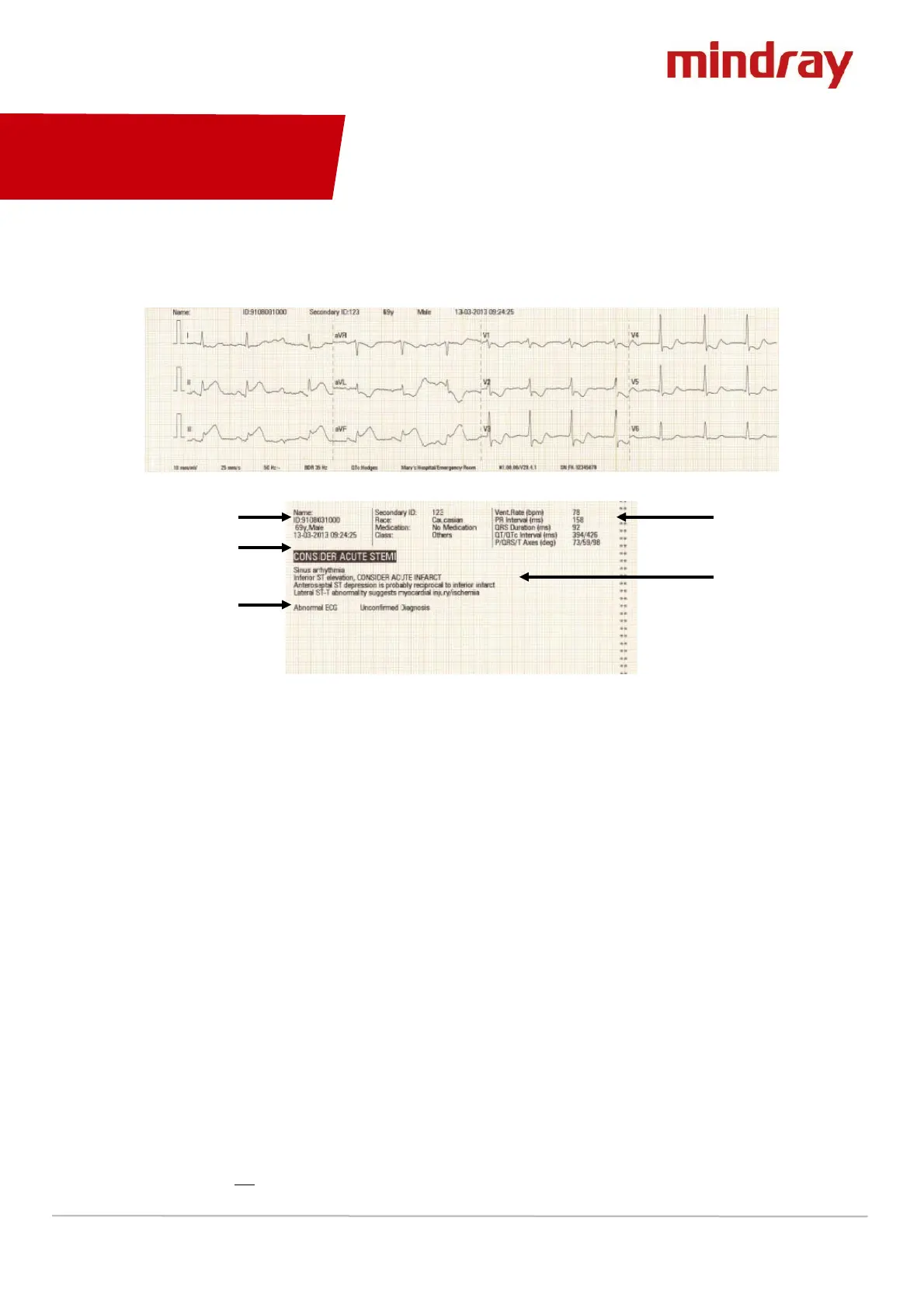

Auto Measurement ECG Report
1. Patient information
2. Time of acquisition
3. Global measurements
4. Critical value
5. Diagnosis statement
6. Conclusion
Resting 12 Lead ECG Analysis
The device is configured with the University of Glasgow algorithm or the Mindray algorithm to provide
an interpretation of the resting 12-lead ECG. The system automatically starts analysis at the completion
of ECG acquisition.
Both algorithms provide the following analysis:
Measurements
• Vent. Rate (bpm)
• PR Interval (ms)
• QRS Duration (ms)
• QT/QTC Interval (ms)
• P/QRS/T Axes (°)
• RV5/SV1 (mV)*
• RV5+SV1 (mV)*
2
1
4
5
6
3
