Image Optimization 5-65

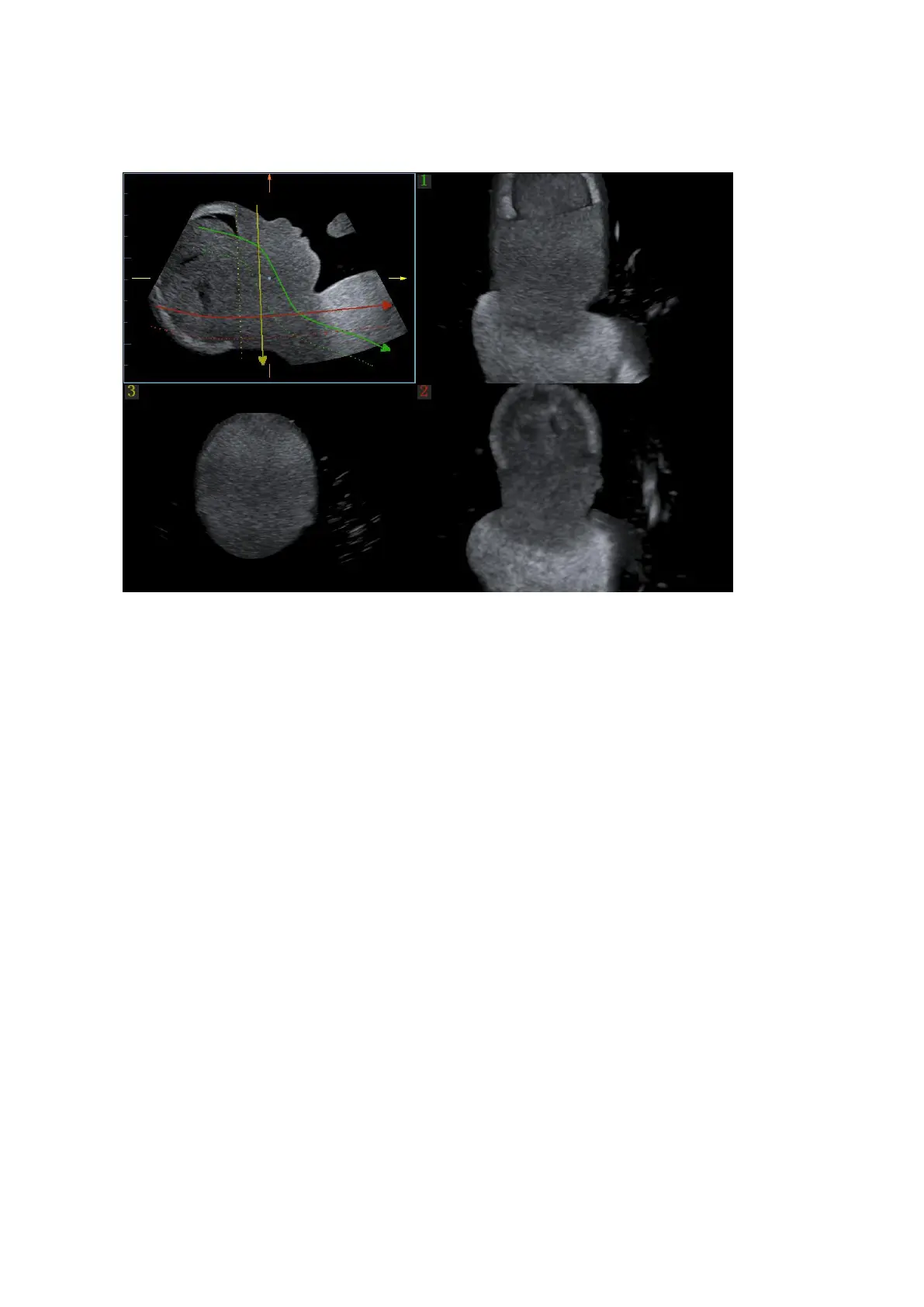

7. Draw on the reference image. You can draw three curves at most and the CMPR imaging for
the curve are displayed in the selected [1], [2] or [3] window respectively as shown in figure
below.
8. Perform rotation and shifting operation to reference line.
9. Save images as necessary.
5.10.9.2 Operation Controls
SCV
 Current Quadrant
Touch [A Plane], [B Plane] and [C Plane] to select current active section image.
 Reset
Click [All] in Reset field to reset parameters, orientation and zooming status.
CMPR
 Trace Options
 Line
1. Touch [Line] on the touch screen.
2. Rotate the trackball to place the cursor and press right <Set> key to fix the starting point,
rotate the trackball to extend the line and press right <Set> key again to finish drawing; or you
can press left <Set> key to reset starting point.
3. After line is finished, press left <Set> key to change line position.
Touch [Reset Curve] to cancel current drawing.
 Trace
1. Touch [Trace] on the touch screen.
2. Rotate the trackball to place the cursor and press right <Set> key to fix the starting point, move
the cursor along the target to trace the outline, and press right <Set> again to finish tracing.
During tracing, press left <Set> to cancel a series of tracing, or you can roll the trackball
backwards to delete latest tracing.
