Mindray DC-80 EXP

2-14 System Overview

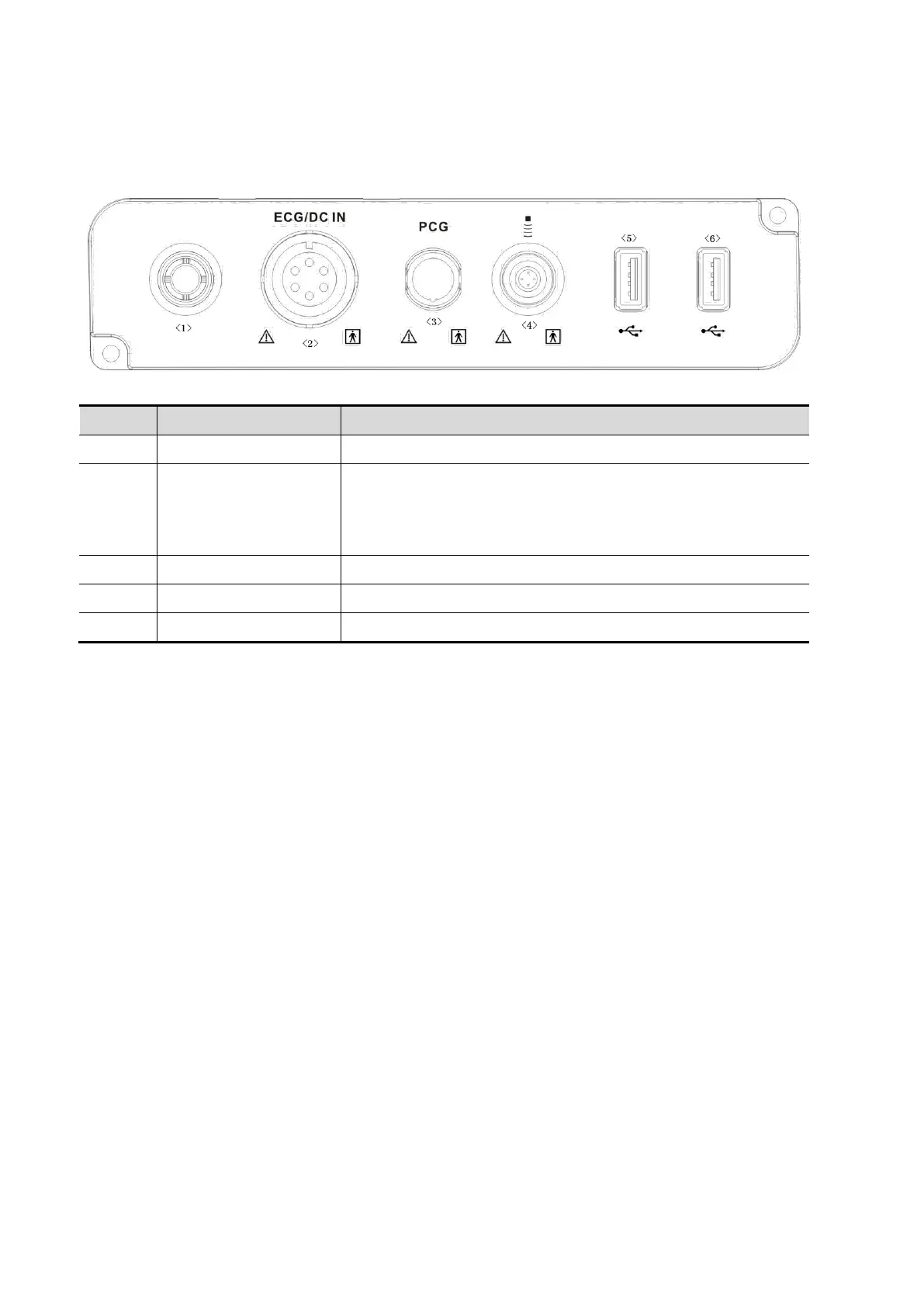

2.9 Physio Panel (ECG)
No.
Name
Function
<1>
Reserved port
Port for reserved function.
<2>
ECG lead signal input
port / external ECG
signal input port
Connects to ECG leads, to directly obtain the ECG signals of
the patient.
Connects the signal output port of external ECG monitoring
device.
<3>
PCG signal input port
Reserved.
<4>
Pencil probe port
Used for connecting a pencil probe.
<5>/<6>
USB ports
Connects USB devices.
