Image Optimization 5-1
5 Image Optimization
WARNING:
1. The images displayed in this system are only reference for
diagnosis. Mindray is not responsible for the correctness of
diagnostic results.
2. In Dual-B imaging mode, the measurement results of the merged
image may be inaccurate. Therefore, the results are provided for
reference only, not for confirming a diagnosis.
5.1 Imaging Mode
5.1.1 Switching Between Imaging Modes
Switch among the imaging modes according to the actual situation.
5.1.2 Image Adjustment
 Adjust through image menu:
For details about menu adjustment, please refer to ―3.7.3 Menu Operation‖ Chapter.

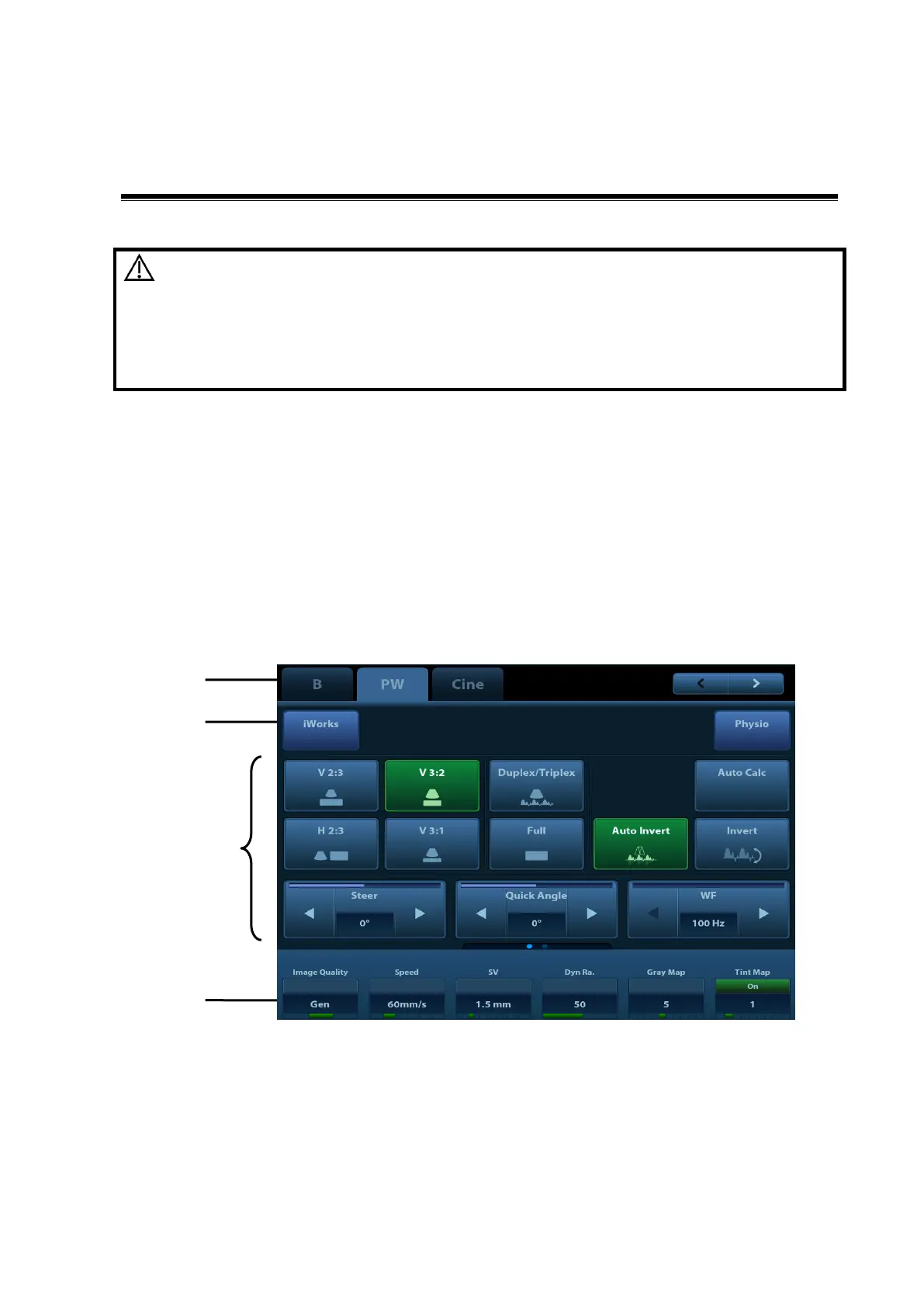

 Adjust through the touch screen
1. Mode displaying area (or main functional tabs): displays the current modes, touch the tab to
enter the mode.
2. Other application mode entrance: displays the available application modes related; touch to
enter the modes.
3. Parameter adjusting area: displays the parameters in the current imaging mode or function.
 Parameter magnitude setting: touch ► or ◄ to increase/ decrease the value.
1
2
3
4
