Mindray DC-80 EXP

Image Optimization 5-117
No.
Device Name
Port
Description

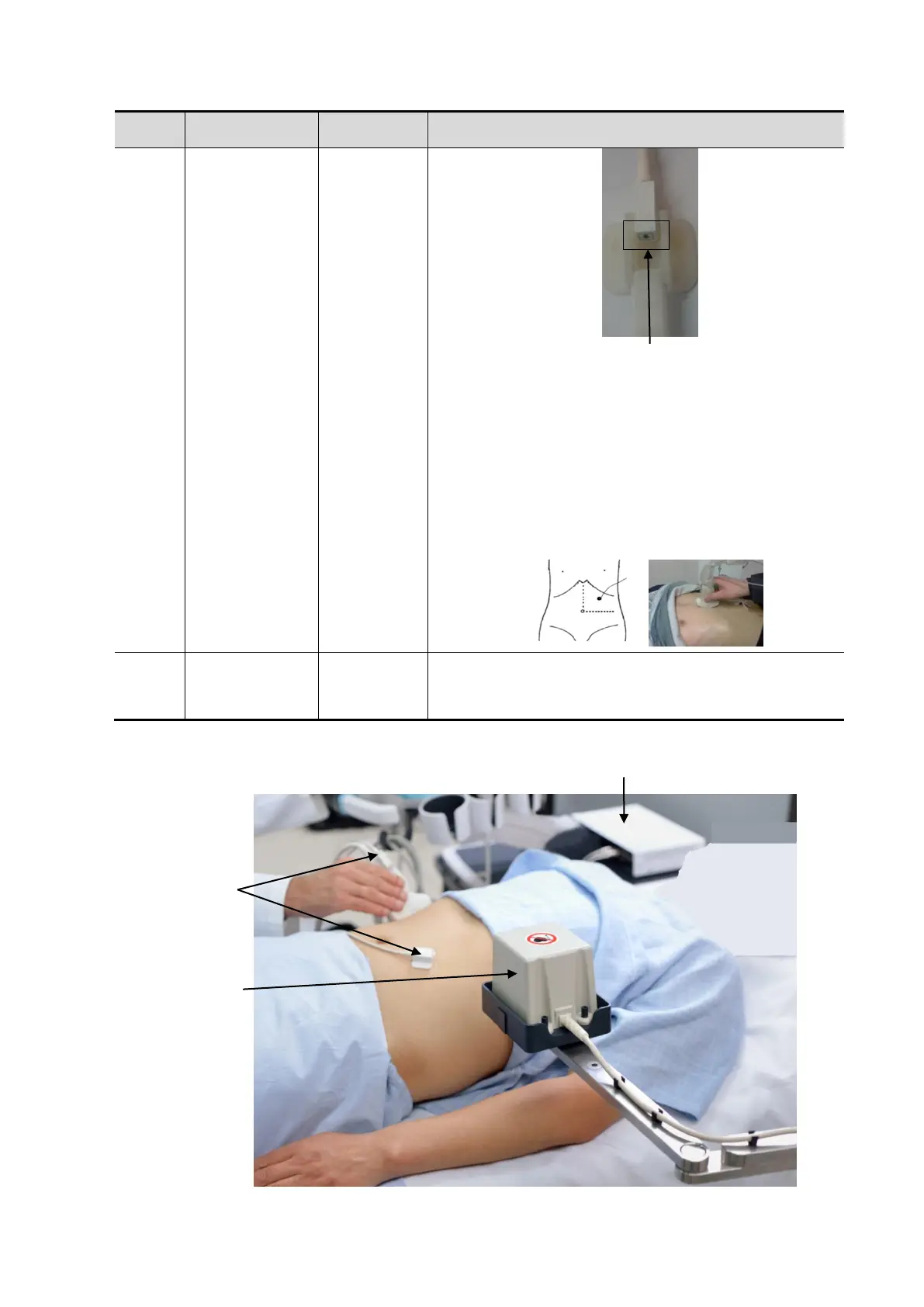

6. Motion (abdomen) sensor sterile sheath: wear the
sterile sheath after abdomen sensor and bracket are
installed.
7. Motion (abdomen) sensor support: stick the sensor
support against the top left of the patient’s
abdomen with the medical plasters (below left
costal arch, right above the navel, the area where
the skin moves apparently with the respiration).
<10>
Magnetic
navigator
/
Place the magnetic navigator behind the Ultrasound
System. Power on the navigator to enable the
positioning function.
Magnetic devices positioning:
Sensor
Magnetic
generator
Magnetic navigator
Face downward
