Mindray DC-80 EXP User Manual

DICOM/HL7 11-3
accepted SCU is preset as Machine, then in the figure above, the AE Title of Local should be
Machine, and the AE Title of storage server should be Storage.
11.1.3 Service Preset
The DICOM Service screen is used to set attributes of Storage, Print, WorkList, MPPS, Storage
Commitment, and Query/Retrieve.
When the system is configured with DICOM basic function module, and installed with DICOM
WorkList, MPPS, DICOM structured report, and DICOM query/retrieve modules, the corresponding
preset can be found in DICOM Service screen.
11.1.3.1 Storage Service Preset

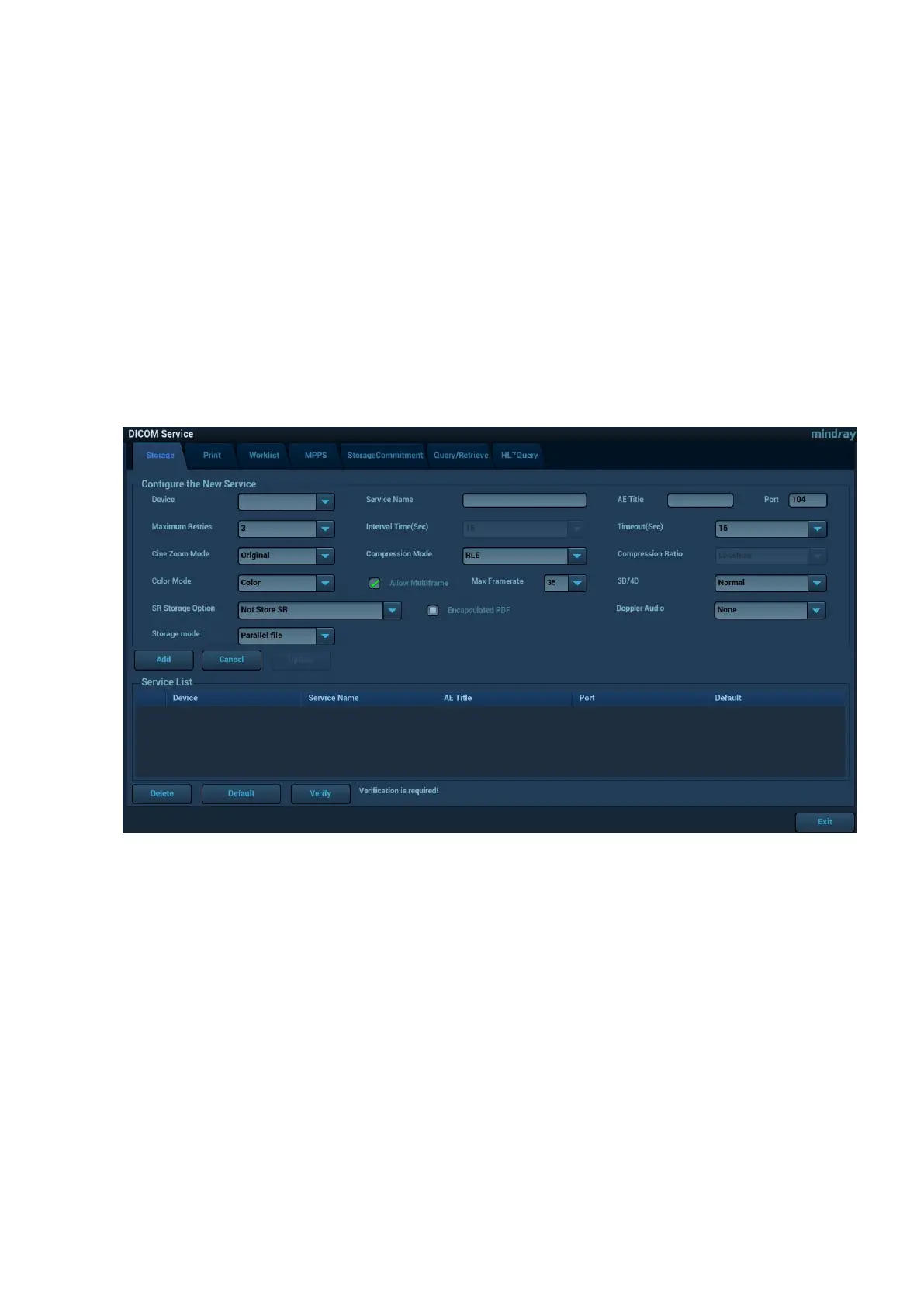

1. On DICOM Service screen, click [Storage] page tab to enter the Storage page.
2. Select device, enter the right AE Title, port, etc.
3. Click [Add] to add the service to the Service List.

Mindray DC-80 EXP Specifications

General

Touchscreen	Yes
Transducer Ports	4
Power Supply	100-240V AC, 50/60 Hz
Imaging Modes	Color Doppler, Power Doppler
Operating System	Windows
Storage	1 TB HDD
Connectivity	DICOM, Ethernet, USB
Applications	General Imaging, Cardiology, Vascular, Pediatrics
Weight	85 kg
