Mindray DC-80 EXP User Manual

13-4 Probes and Biopsy

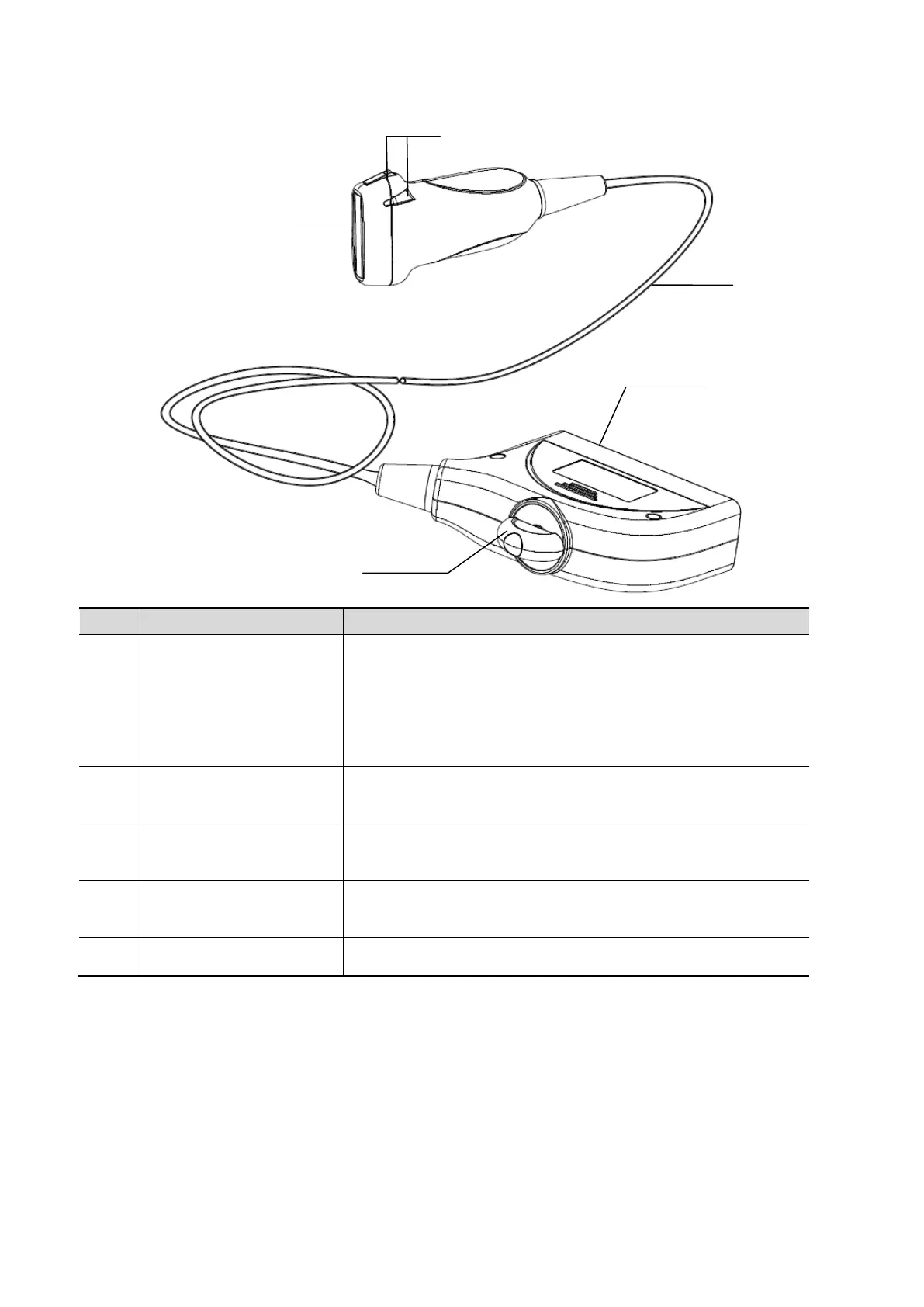

No.
Name
Function
<1>
Probe head
Converts the electrical signal into an ultrasonic signal,
focusing the sound beams in a given direction; meanwhile, it
receives the reflected ultrasonic signal and converts it into an
electrical signal for transmission over the cable. The lens on
the surface is the acoustic lens. Apply ultrasound gel on the
acoustic lens for correct operation.
<2>
Needle-guided bracket fix
tabs and grooves
Provides mounting support of the needle-guided bracket.
<3>
Probe cable
Transmits electrical signals between the probe body and
connector.
<4>
Probe connector
Connects the probe and cable to the ultrasonic diagnostic
system.
<5>
Lock handle
Locks the connector to the ultrasonic diagnostic system.
Tips:
The probes’ structure marked <2> in the figure above may vary with the matched needle-guided
brackets.
13.1.2 Orientation of the Ultrasound Image and the Probe
Head
The orientation of the ultrasound image and the probe are shown as below. The ―Mark‖ side of the
ultrasound image on the monitor corresponds to the mark side of the probe. Check the orientation
before the examination (Using a linear probe as an example).
<1>
<3>
<4>
<5>
<2>

Mindray DC-80 EXP Specifications

General

Touchscreen	Yes
Transducer Ports	4
Power Supply	100-240V AC, 50/60 Hz
Imaging Modes	Color Doppler, Power Doppler
Operating System	Windows
Storage	1 TB HDD
Connectivity	DICOM, Ethernet, USB
Applications	General Imaging, Cardiology, Vascular, Pediatrics
Weight	85 kg
