13-24 Probes and Biopsy
NGB-007/NGB-035

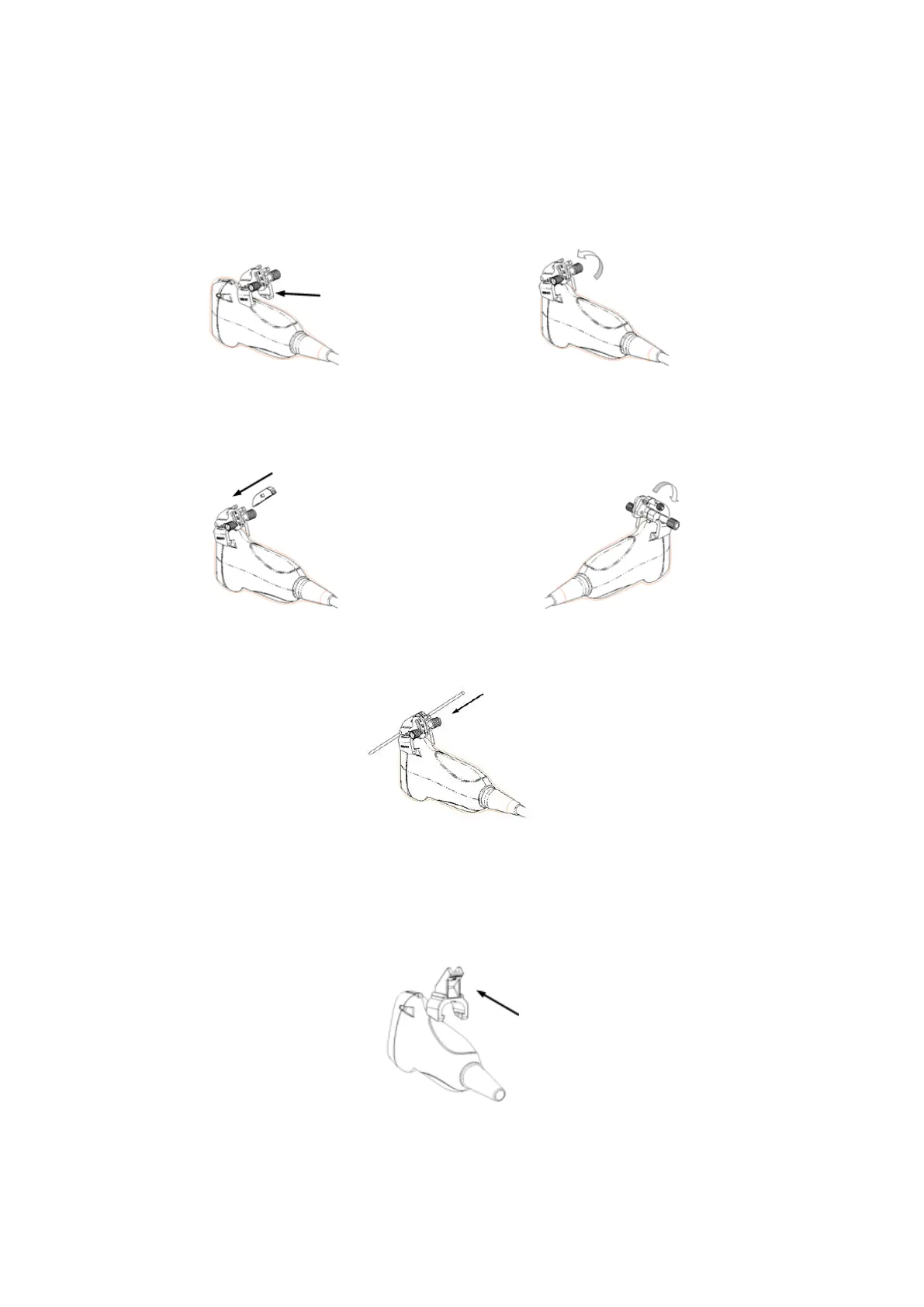

Metal/needle detachable needle-guided bracket:
(1) Put on the sterile probe sheath.
(2) Hold the probe by one hand, select the proper needle-guided bracket, and hold it with the
other hand. Match the groove and tab with the tab and groove of the probe respectively.
Amount the bracket onto the probe.
(3) Screw the pinch nut of the needle-guided bracket to confirm that the needle-guided
bracket is properly installed on the probe.
(4) Select a proper guiding block and push it into the groove above the angle block, and
clamp it tightly.
(5) Screw the nut of the block to secure the block.
(6) Insert a biopsy needle with the same specification as that of the guiding block into the hole
of the guiding block.
Plastic needle-guided bracket:
(1) Put on the sterile probe sheath.
(2) Hold the probe by one hand, select the proper needle-guided bracket, and hold it with the
other hand. Align the narrow end tab of the needle-guided bracket with the groove of the
probe, then push the needle-guided bracket forward, making the tabs and the grooves of
the needle-guided bracket to match with the grooves and tabs of the probe.
(3) Check manually to confirm that the needle-guided bracket is securely installed on the
probe.
(4) Select a proper guiding block and push it into the groove above the angle block, and
clamp it tightly.
