Mindray DC-80 EXP User Manual

2-18 System Overview

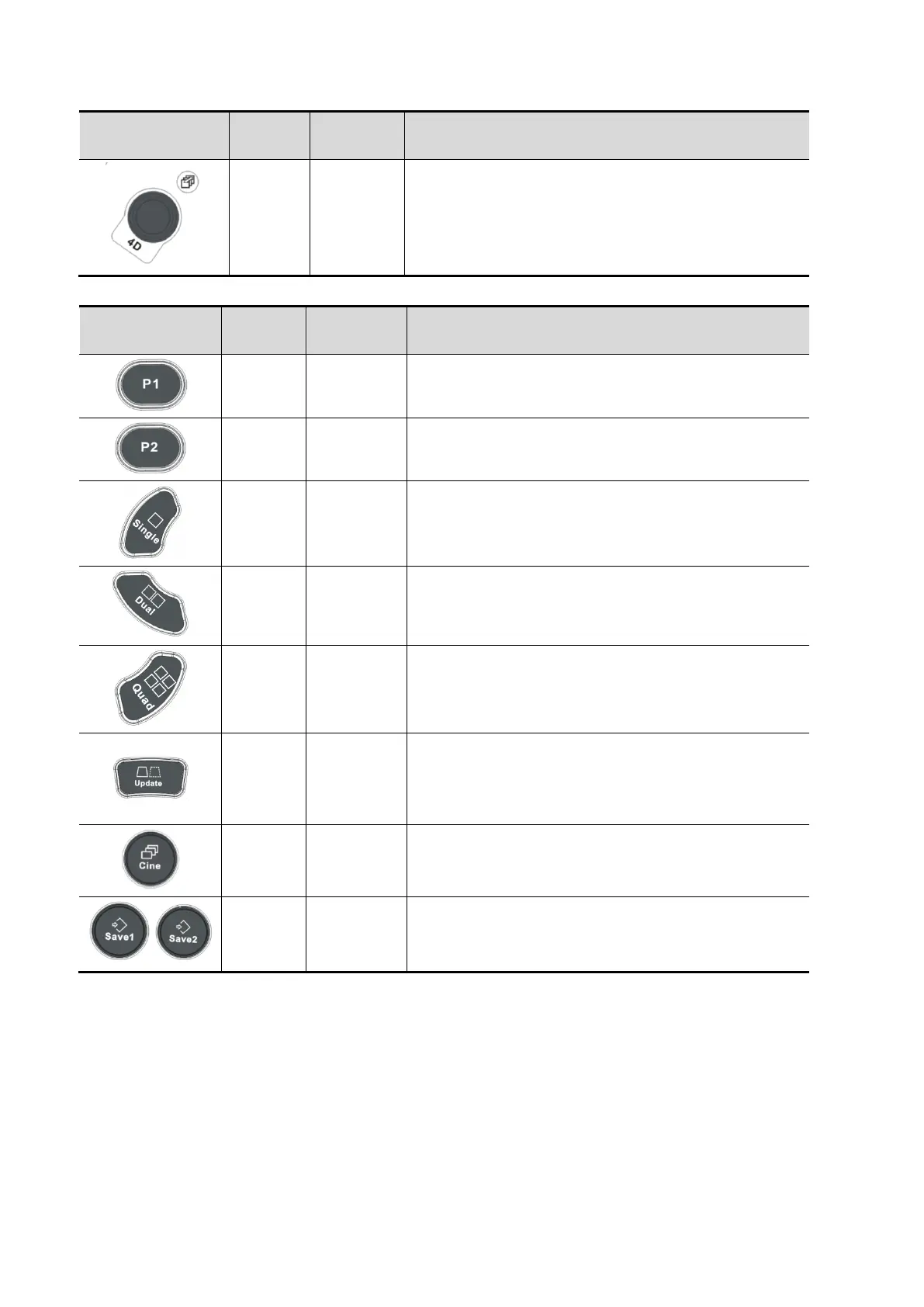

Symbol
Name
Control
Type
Function
/
Pressable
knobs
Press to enter 4D function; rotate to make the 3D
image rotation.
Symbol
Name
Control
Type
Function
/
Undefined
Button
Undefined Button, set by the user in preset.
/
Undefined
Button
Undefined Button, set by the user in preset.
/
Functional
button
Enter single window in multiple window mode.
/
Functional
button
Enter Dual mode in Non-Dual mode;
Switch between the two display windows in Dual
mode.
/
Functional
button
Enter Quad mode in Non-Quad mode;
Press to switch among the display windows in Quad
mode.
/
Functional
button
Switching key: Press to change the currently active
window.
Start/ stop image acquisition in iScape or 3D/4D
mode.
Cine
Review
Functional
button
Enter/ exit the Cine Review status.
/
Save 1/
Save 2
Functional
button
Save images in a way as preset.

Mindray DC-80 EXP Specifications

General

Touchscreen	Yes
Transducer Ports	4
Power Supply	100-240V AC, 50/60 Hz
Imaging Modes	Color Doppler, Power Doppler
Operating System	Windows
Storage	1 TB HDD
Connectivity	DICOM, Ethernet, USB
Applications	General Imaging, Cardiology, Vascular, Pediatrics
Weight	85 kg
