2-20 System Overview

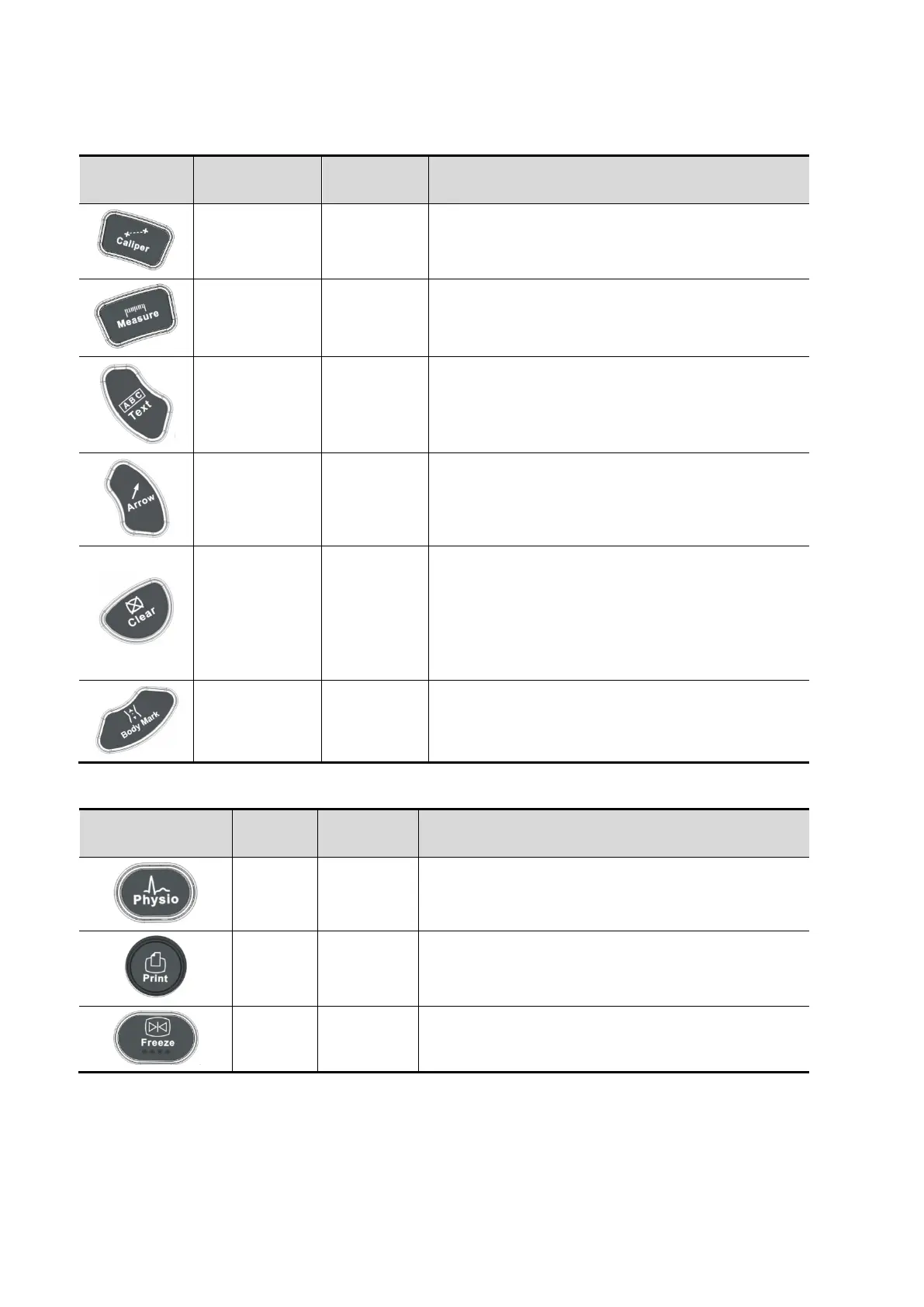

Measurement, Comment, and Body Mark Operations
Symbol
Name
Control
Type
Function
Caliper
Functional
button
Enter or exit the general measurement mode.
Measurement
Functional
button
Enter/ exit the application measurement mode.
Comment
Functional
button
Enter/ exit the textual comment status.
Arrow
Functional
button
Enter/ exit the arrow comment status.
Delete
Functional
button
Clear the measurement caliper, comments and
body mark.
Press <Clear> to clear the selected item, return to
the previous operation or to delete the last project.
Long press <Clear> to delete the mode related
elements or all elements on the screen.
Body Mark
Functional
button
Enter/ exit Body Mark.
Other Operations
Symbol
Name
Control
Type
Function
/
Functional
button
Enter/ exit ECG control screen.
Print
Functional
button
Print.
Freeze
Functional
button
Freeze/ unfreeze the image.
Tip: ―/‖ means the key / knob has no silk-printed name.
