Mindray DC-80 EXP User Manual

System Preparation 3-15
3.6.5 Installing Analog Video Printer
1. Plug the printer power cord to an appropriate outlet.
2. Put the printer in a proper place.
3. Cable connection:
 B / W analog video printer
The printer compartment under the control panel provides the following cables:

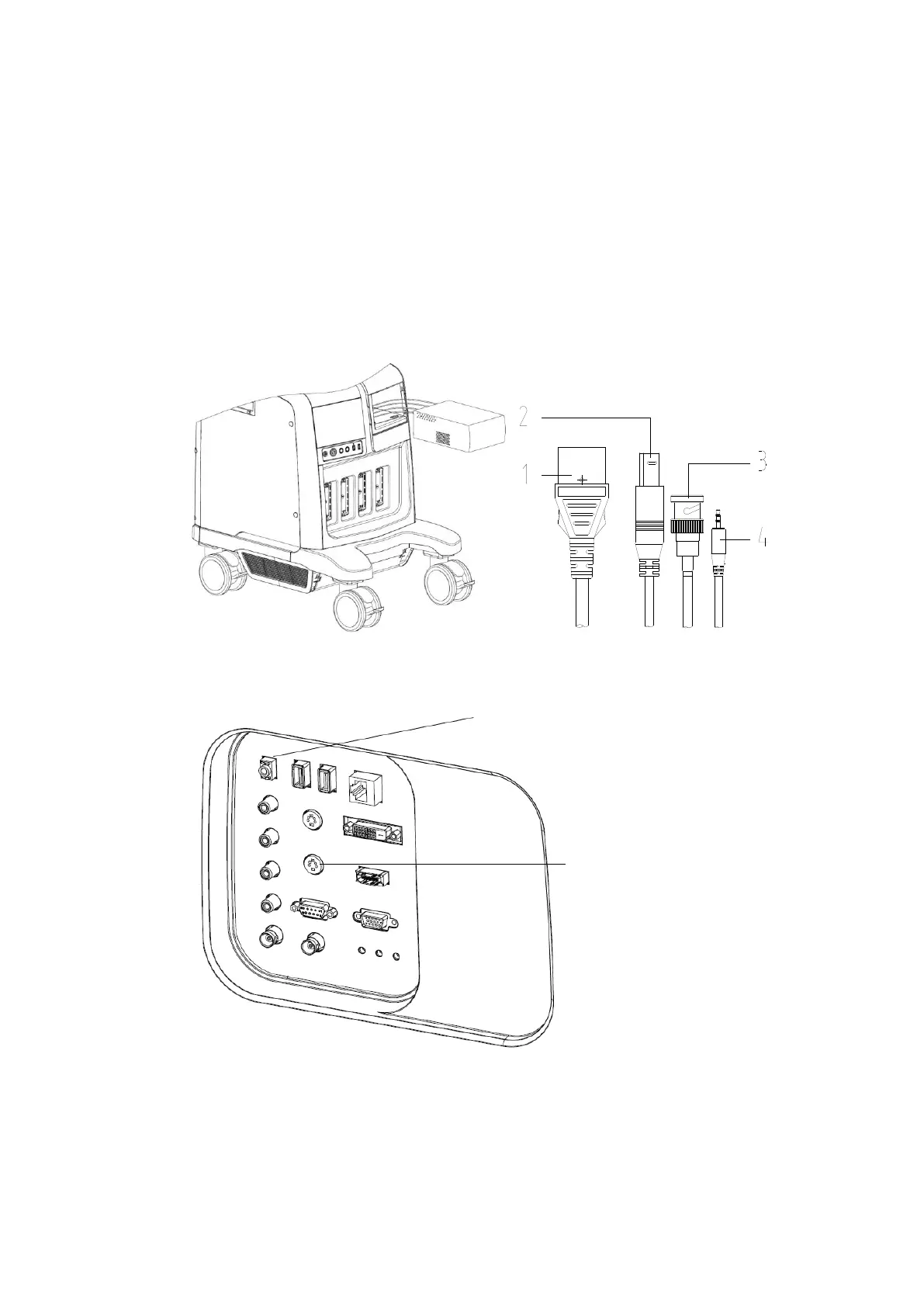

(1) power cord, (2) USB cable (used for connecting digital video printer), (3) video signal cable,
(4) Remote control cable, as shown in the figure.
Connect the remote cable to the remote port of the printer, and video signal cable to VIDEO IN
port of the printer.
 Color analog video printer: use the I/O panel at the rear side of the machine to connect
the printer, as shown in the following figure:
Connect to S-Video out
cable
Connect the remote cable of the
printer
