Mindray DC-85 User Manual

Image Optimization 5-39

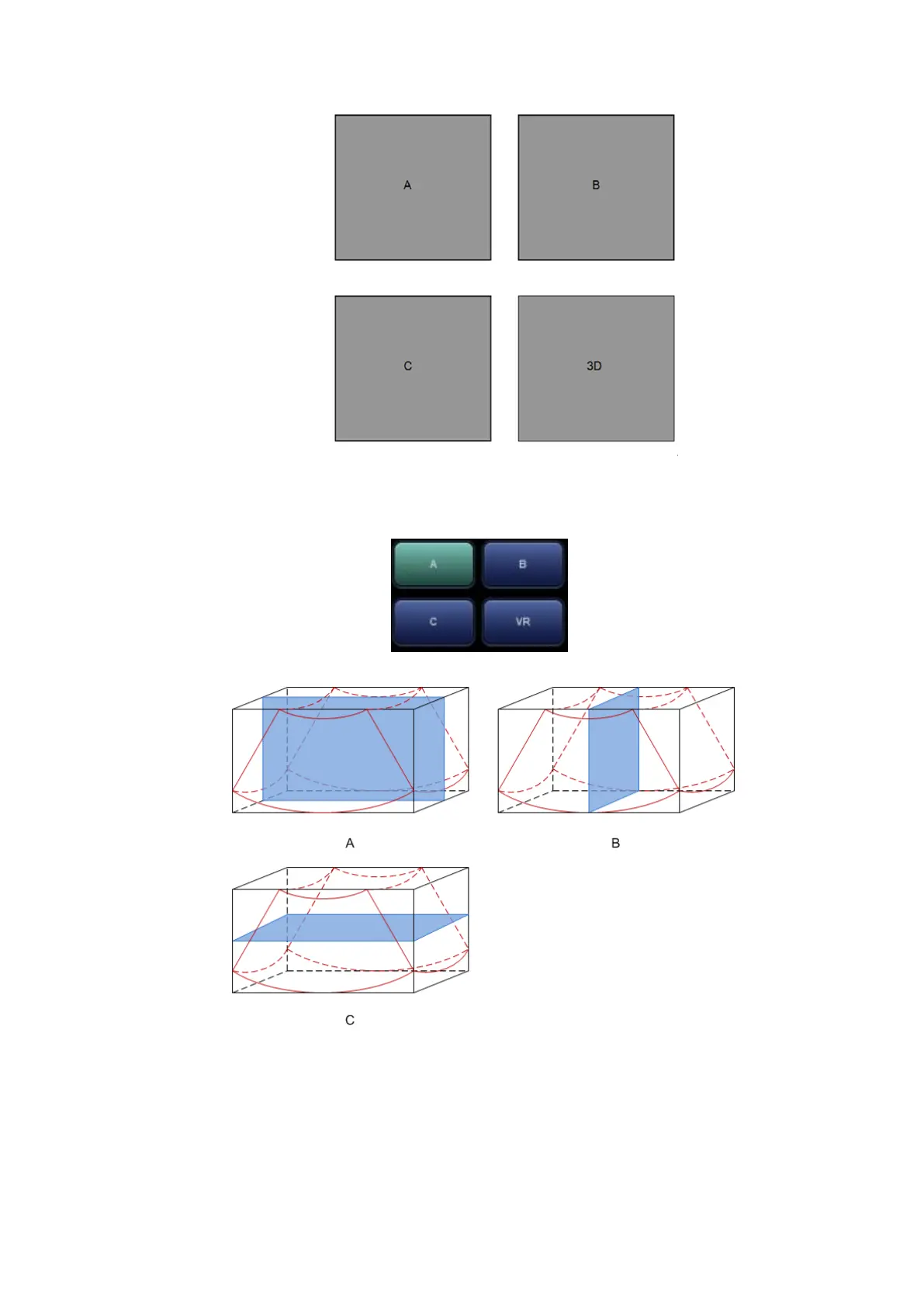

 On the touch screen, the current window’s icon is highlighted; as shown in the following, A
window is the current activated window.
A, B, C sectional images are corresponding to the following sections of 3D image.
 Section A: corresponds to the 2D image in B mode. Section A is the sagittal section in fetal
face up posture, as shown in the Figure A above.
 Section B: it is the horizontal section in fetal face up posture, as shown in the Figure B
above.
 Section C: it is the coronal section in fetal face up posture, as shown in the Figure C
above.
A window
B window
C window
3D window (VR)
