5-50 Image Optimization
Function:
Adjust the zoom factor of 3D image, the section images will be zoomed in/out accordingly.
Operation:
Switch the current window to 3D window. Rotate <Zoom> to change the magnification factor.
Range:
0.2 – 4 times.
Sync
This function is to switch the view direction which is perpendicular to the current active plane, so
as to get a better observation of VR.

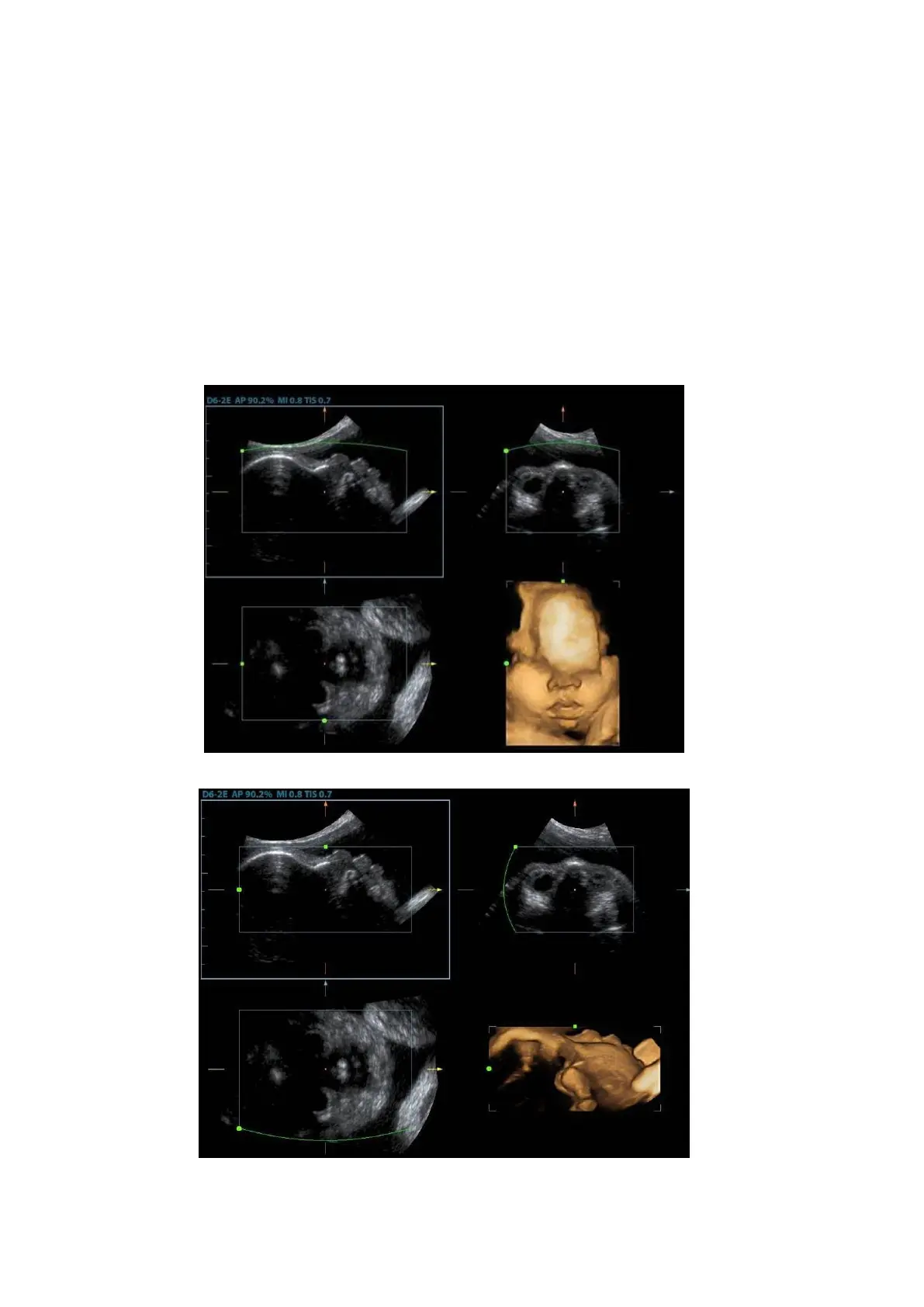

In the following graph, the current active plane is MPR A and after performing Sync on Figure A,
you can see a same fetal face profile in VR.
Figure A
Figure B
