5-74 Image Optimization
Taking the sagittal features from 3D data of fetus’s intracranial, Smart Planes CNS is a mode-wise
technology, which detects the middle of the fetus’s sagittal view, transverse plane of thalami,
transverse plane of lateral ventricles and transverse plane of cerebellum. It helps the doctors find
the sagittal view rapidly and is easy for doctors accessing the anatomical structure on sagittal view.
(such as corpus callosum, cerebellar vermis, etc).
NOTE:
Smart Planes CNS is an option, which does not support 3D mode.
Only D7-2E, D8-2E and D6-2NE supports Smart Planes CNS in OB2 and OB3 exam mode.
5.10.14.1 Basic Procedures for Smart Planes CNS
1. Acquire necessary 3D data.

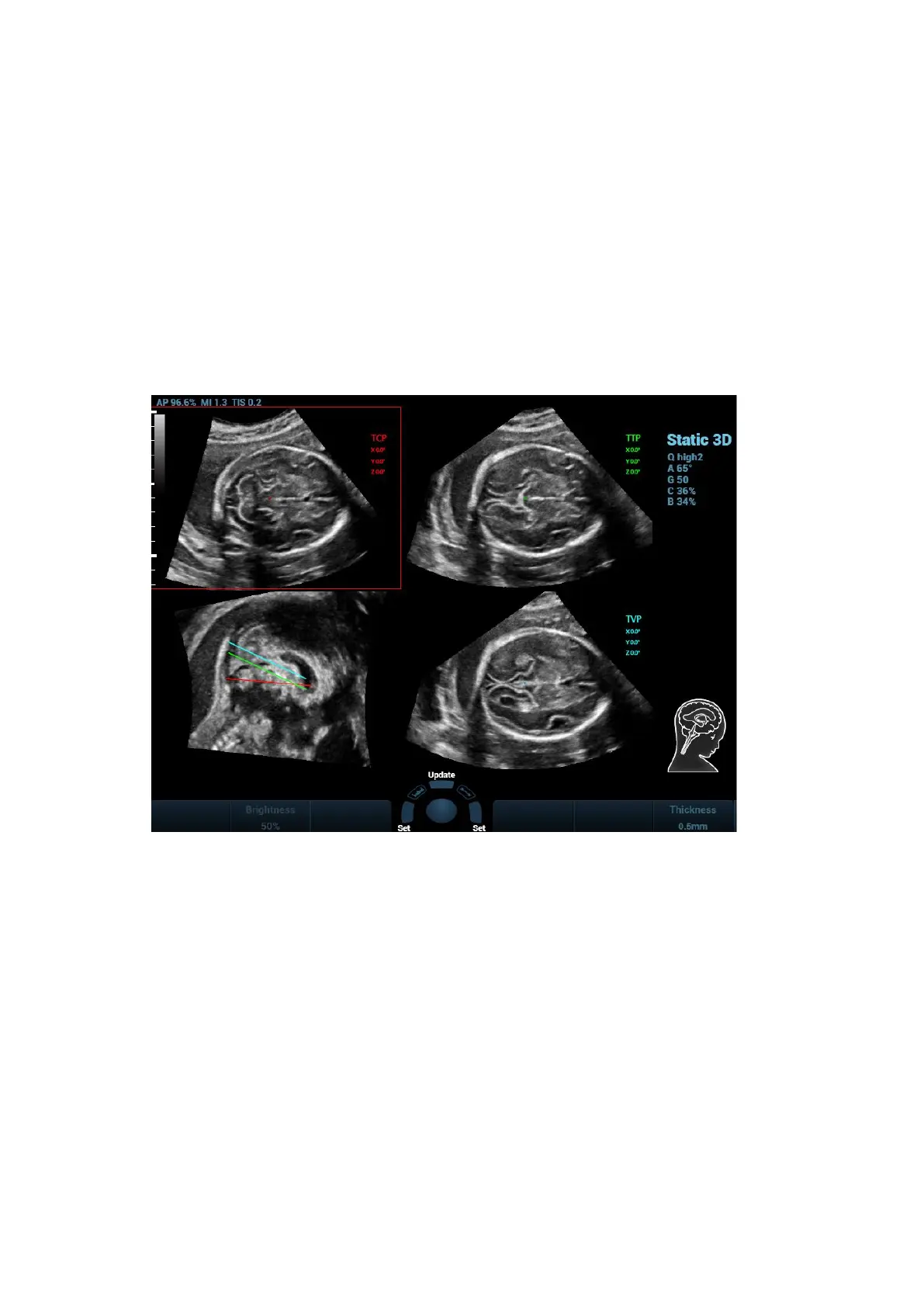

2. Tap [S-Planes CNS]. There are four views detected by the system, which includes TCP, TTP,
MSP and TVP.
3. Adjust the brightness, 3D iClear and the thickness to obtain the image.
4. Tap [MSP]. There are A/B/C images appearing on the screen. The sagittal plane of the fetus
appears on window C.
Rotate A, B or C plane respectively, or rotate <4D> to adjust each plane.
